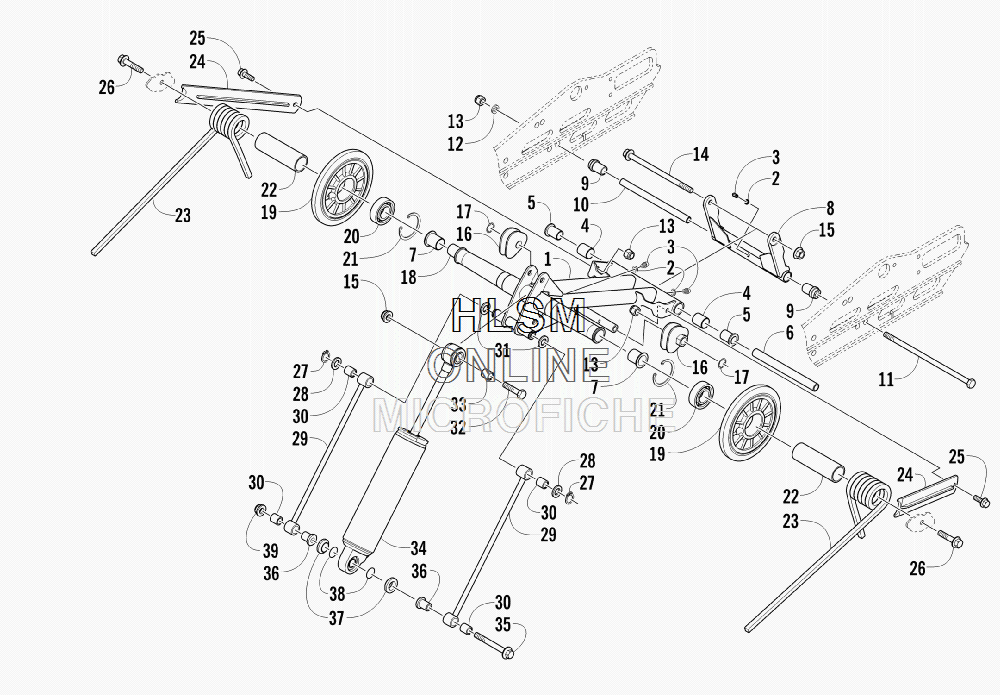

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat SNO PRO 500 - 2011 года выпуска`
-
№АртикулНазвание
-
11704-918 ARM, IDLER (INC. TWO NO. 2-3 AND 4-7)ARM, IDLER (INC. TWO NO. 2-3 AND 4-7)
-
21623-011 ...WASHER...WASHER
-
31623-010 ...FITTING, GREASE...FITTING, GREASE
-
42603-481 ...BEARING...BEARING
-
53604-222 ...BUSHING, FLARED...BUSHING, FLARED
-
63604-226 ...AXLE...AXLE
-
73604-223 ...BEARING...BEARING
-
81704-368 ARM, REAR (INC. ONE NO. 2-3)ARM, REAR (INC. ONE NO. 2-3)
-
91604-307 AXLE, SERRATEDAXLE, SERRATED
-
102604-665 TUBE, AXLETUBE, AXLE
-
111623-037 SCREW, CAPSCREW, CAP
-
128051-277 WASHER, LOCKWASHER, LOCK
-
138040-486 NUT, LOCKNUT, LOCK
-
141623-674 SCREW, CAPSCREW, CAP
-
158047-486 NUT, LOCKNUT, LOCK
-
161604-204 BLOCK, SPRING ADJUSTER - RIGHTBLOCK, SPRING ADJUSTER - RIGHT
-
161604-205 BLOCK, SPRING ADJUSTER - LEFTBLOCK, SPRING ADJUSTER - LEFT
-
170623-138 RING, RETAININGRING, RETAINING
-
183604-388 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
193604-616 WHEEL, IDLER (INC. 20-21)WHEEL, IDLER (INC. 20-21)
-
203604-257 ...BEARING...BEARING
-
213604-256 ...RING, RETAINING...RING, RETAINING
-
223604-414 SLEEVE, SPRINGSLEEVE, SPRING
-
231704-382 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
231704-383 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
243604-408 BRACE, SUPPORTBRACE, SUPPORT
-
258020-222 SCREW, CAPSCREW, CAP
-
261623-903 SCREW, CAPSCREW, CAP
-
270623-237 SNAP RINGSNAP RING
-
281623-389 WASHERWASHER
-
291704-377 LINK, REAR SHOCK (INC. 30)LINK, REAR SHOCK (INC. 30)
-
300603-083 ...BEARING...BEARING
-
311623-384 WASHER, URETHANEWASHER, URETHANE
-
328020-226 SCREW, CAPSCREW, CAP
-
331604-139 SLEEVESLEEVE
-
342704-040 SHOCK ABSORBERSHOCK ABSORBER
-
358026-414 SCREW, CAPSCREW, CAP
-
363604-209 AXLE, LINK - FLANGEDAXLE, LINK - FLANGED
-
373604-210 SPACERSPACER
-
382604-698 O-RINGO-RING
-
398047-610 NUT, LOCKNUT, LOCK
