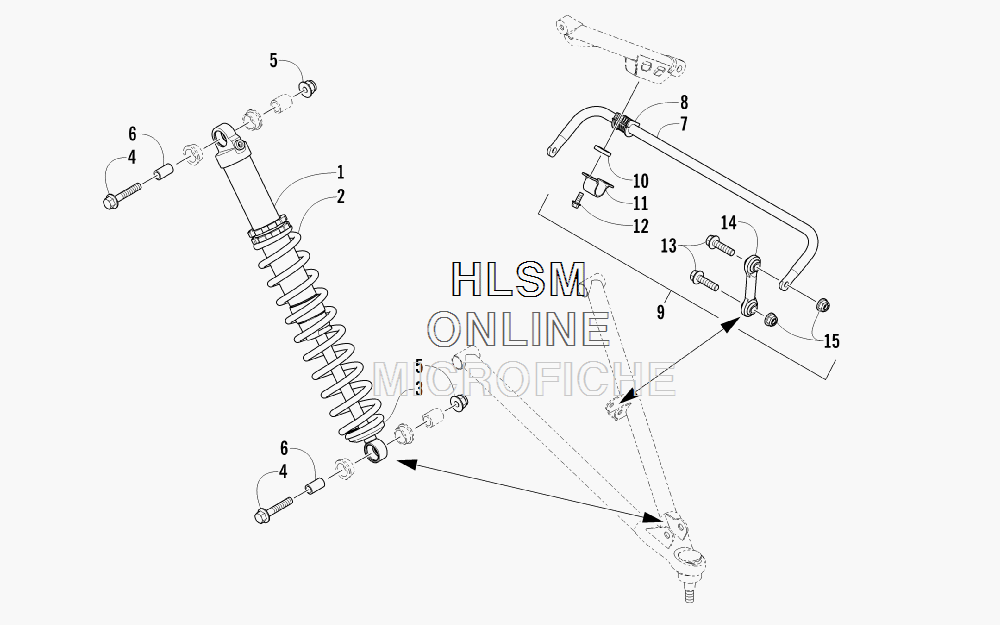

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat SNO PRO 500 (INTERNATIONAlL) - 2011 года выпуска`
-
№АртикулНазвание
-
12703-809 SHOCK, SKISHOCK, SKI
-
22703-406 SPRING, COMPRESSION - 145 LB - WHITESPRING, COMPRESSION - 145 LB - WHITE
-
22703-386 SPRING, COMPRESSION - 160 LB - WHITE - OPTIONALSPRING, COMPRESSION - 160 LB - WHITE - OPTIONAL
-
22703-387 SPRING, COMPRESSION - 190 LB - WHITE - OPTIONALSPRING, COMPRESSION - 190 LB - WHITE - OPTIONAL
-
22703-385 SPRING, COMPRESSION - 175 LB - WHITE - OPTIONALSPRING, COMPRESSION - 175 LB - WHITE - OPTIONAL
-
33604-200 RETAINER, SPRINGRETAINER, SPRING
-
48408-045 SCREW, CAPSCREW, CAP
-
58427-002 NUT, LOCKNUT, LOCK
-
63604-109 SLEEVE, SHOCKSLEEVE, SHOCK
-
74639-961 KIT, SWAY BAR - 11.1 MM - BLACK (INC. 8) - OPTIONALKIT, SWAY BAR - 11.1 MM - BLACK (INC. 8) - OPTIONAL
-
74639-962 KIT, SWAY BAR - 12.7 MM - BLACK (INC. 8) - OPTIONALKIT, SWAY BAR - 12.7 MM - BLACK (INC. 8) - OPTIONAL
-
74639-963 KIT, SWAY BAR - 14.3 MM - BLACK (INC. 8) - OPTIONALKIT, SWAY BAR - 14.3 MM - BLACK (INC. 8) - OPTIONAL
-
82603-803 ...BUSHING, SWAY BAR - 11.1 MM - OPTIONAL...BUSHING, SWAY BAR - 11.1 MM - OPTIONAL
-
82603-804 ...BUSHING, SWAY BAR - 12.7 MM - OPTIONAL...BUSHING, SWAY BAR - 12.7 MM - OPTIONAL
-
82603-775 ...BUSHING, SWAY BAR - 14.3 MM - OPTIONAL...BUSHING, SWAY BAR - 14.3 MM - OPTIONAL
-
95639-635 KIT, MOUNTING - SWAY BAR (INC. 10-15) - OPTIONALKIT, MOUNTING - SWAY BAR (INC. 10-15) - OPTIONAL
-
101623-564 ...WASHER - OPTIONAL...WASHER - OPTIONAL
-
112603-829 ...BRACKET, MOUNTING - SWAY BAR - OPTIONAL...BRACKET, MOUNTING - SWAY BAR - OPTIONAL
-
128408-616 ...SCREW, CAP - OPTIONAL...SCREW, CAP - OPTIONAL
-
138408-835 ...SCREW, CAP - OPTIONAL...SCREW, CAP - OPTIONAL
-
142603-830 ...LINK, SWAY BAR - OPTIONAL...LINK, SWAY BAR - OPTIONAL
-
158427-802 ...NUT, LOCK - OPTIONAL...NUT, LOCK - OPTIONAL
