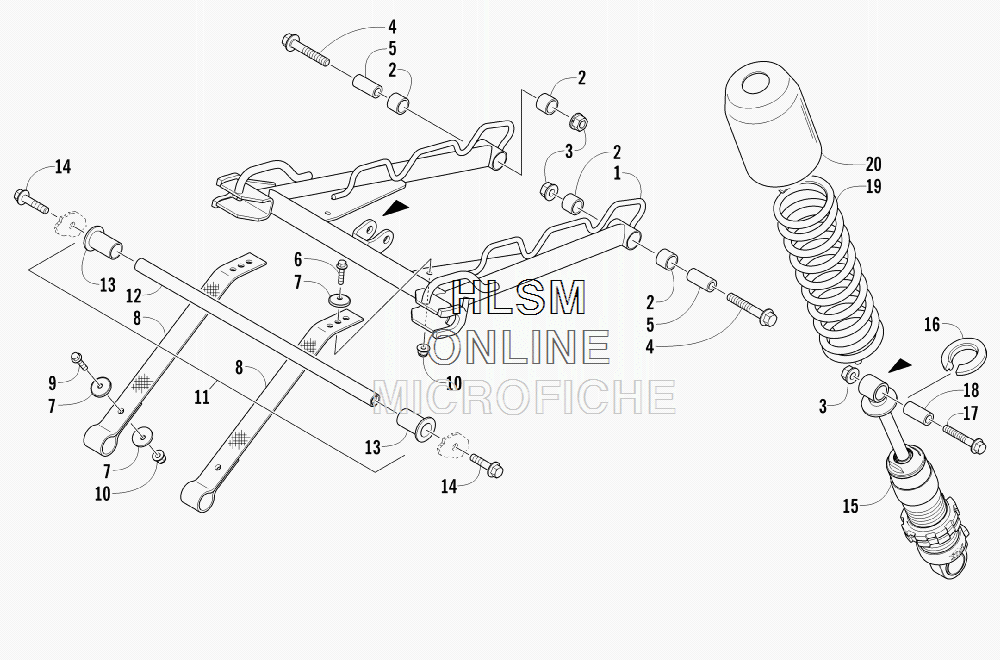

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat SNO PRO 500 (INTERNATIONAlL) - 2011 года выпуска`
-
№АртикулНазвание
-
11704-910 ARM, FRONT SUSPENSION (INC. 2)ARM, FRONT SUSPENSION (INC. 2)
-
20604-889 ...BUSHING...BUSHING
-
38047-486 NUT, LOCKNUT, LOCK
-
48020-228 SCREW, CAPSCREW, CAP
-
50104-629 SPACERSPACER
-
68002-041 SCREW, CAPSCREW, CAP
-
70623-875 WASHERWASHER
-
83604-478 STRAP, LIMITERSTRAP, LIMITER
-
98002-044 SCREW, CAPSCREW, CAP
-
108040-366 NUT, LOCKNUT, LOCK
-
111704-909 AXLE, FRONT ARM (INC. 12-13)AXLE, FRONT ARM (INC. 12-13)
-
123604-554 ...AXLE...AXLE
-
133604-555 ...BUSHING...BUSHING
-
141623-903 SCREW, CAPSCREW, CAP
-
152704-039 SHOCK ABSORBERSHOCK ABSORBER
-
163604-200 RETAINER, SPRINGRETAINER, SPRING
-
178020-227 SCREW, CAPSCREW, CAP
-
181603-531 AXLEAXLE
-
191704-736 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
200604-790 COVER, SHOCKCOVER, SHOCK
