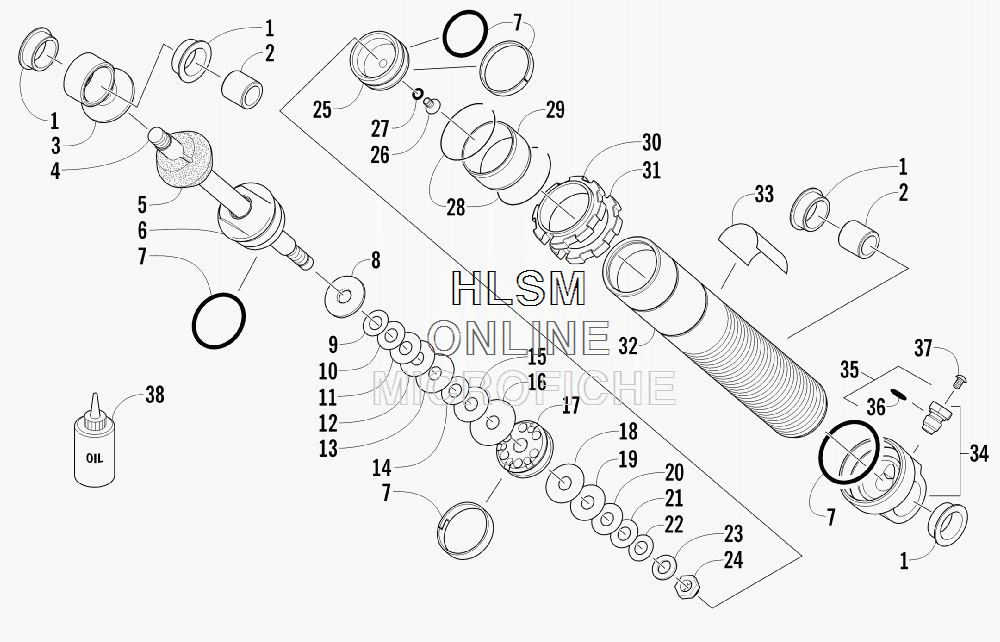

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat M6 - 2011 года выпуска`
-
№АртикулНазвание
-
-1704-934 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
10604-793 BUSHINGBUSHING
-
22604-223 SLEEVESLEEVE
-
30603-910 EYELET, SHOCKEYELET, SHOCK
-
42603-840 ROD, SHOCKROD, SHOCK
-
52603-459 BUMPER, SHOCKBUMPER, SHOCK
-
62604-812 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
72604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
80603-540 WASHER, TOP OUTWASHER, TOP OUT
-
90603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
100603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
110603-881 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
120603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
130603-889 VALVE, 1.250 X 0.015 IN.VALVE, 1.250 X 0.015 IN.
-
140603-336 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
150603-882 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
160603-350 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
172604-412 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
180603-883 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
190603-888 VALVE, 1.100 X 0.015 IN.VALVE, 1.100 X 0.015 IN.
-
200603-887 VALVE, 1.000 X 0.015 IN.VALVE, 1.000 X 0.015 IN.
-
210603-880 VALVE, 0.900 X 0.012 IN.VALVE, 0.900 X 0.012 IN.
-
220603-879 VALVE, 0.800 X 0.012 IN.VALVE, 0.800 X 0.012 IN.
-
230603-389 WASHER, BACKUPWASHER, BACKUP
-
240603-301 NUTNUT
-
252604-816 PISTON, FLOATINGPISTON, FLOATING
-
261604-316 SCREW, MACHINE W/O-RING (INC. 27)SCREW, MACHINE W/O-RING (INC. 27)
-
271604-425 ...O-RING...O-RING
-
282603-245 RETAINER, WEAR SLEEVERETAINER, WEAR SLEEVE
-
292603-246 SLEEVE, WEARSLEEVE, WEAR
-
302604-840 NUT, ADJUSTERNUT, ADJUSTER
-
312604-841 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
323604-595 BODY, SHOCKBODY, SHOCK
-
332604-897 DECAL, SHOCKDECAL, SHOCK
-
342604-817 END CAP, SHOCK (INC. 35-36)END CAP, SHOCK (INC. 35-36)
-
350703-341 ...VALVE, PRESSURE (INC. 36)...VALVE, PRESSURE (INC. 36)
-
361604-318 ......O-RING, VALVE......O-RING, VALVE
-
370624-097 SCREW, VALVESCREW, VALVE
-
385639-240 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
