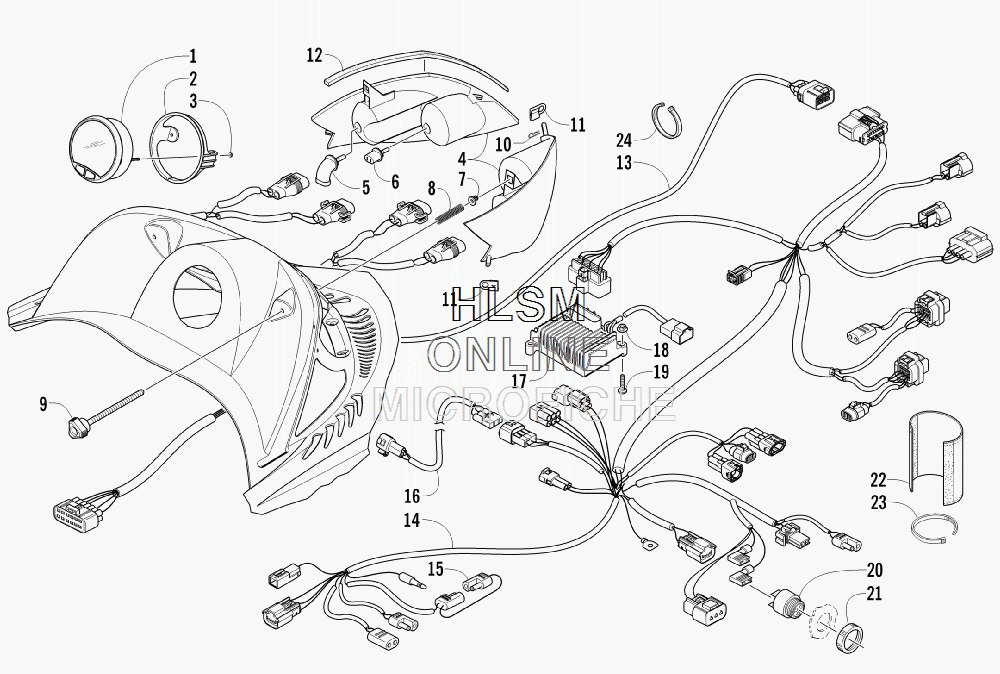

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat M6 - 2011 года выпуска`
-
№АртикулНазвание
-
10620-355 TACHOMETER/SPEEDOMETERTACHOMETER/SPEEDOMETER
-
20620-322 BRACKET, RETAININGBRACKET, RETAINING
-
30423-493 NUT W/WASHERNUT W/WASHER
-
40609-848 LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 5-6)LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 5-6)
-
40609-849 LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 5-6)LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 5-6)
-
50609-251 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
60609-693 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
71623-025 INSERTINSERT
-
80623-360 SPRING, ADJUSTERSPRING, ADJUSTER
-
91623-024 SCREW, ADJUSTERSCREW, ADJUSTER
-
101623-137 CLIP, HAIRPINCLIP, HAIRPIN
-
111623-272 CLIP - RIGHTCLIP - RIGHT
-
111623-273 CLIP - LEFTCLIP - LEFT
-
120617-501 FOAM, HOOD/HEADLIGHTFOAM, HOOD/HEADLIGHT
-
131686-614 HARNESS, HOODHARNESS, HOOD
-
141686-598 HARNESS, MAIN (INC. 15)HARNESS, MAIN (INC. 15)
-
150486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
161686-617 HARNESS, EXTENSION - TAILLIGHTHARNESS, EXTENSION - TAILLIGHT
-
170630-246 UNIT, CHASSIS CONTROLUNIT, CHASSIS CONTROL
-
188047-366 NUT, LOCKNUT, LOCK
-
198017-584 SCREW, MACHINESCREW, MACHINE
-
200630-243 ALARM, REVERSE (INC. 21)ALARM, REVERSE (INC. 21)
-
210630-017 ...RING, RETAINING...RING, RETAINING
-
223706-761 WRAPWRAP
-
230123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
240123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
