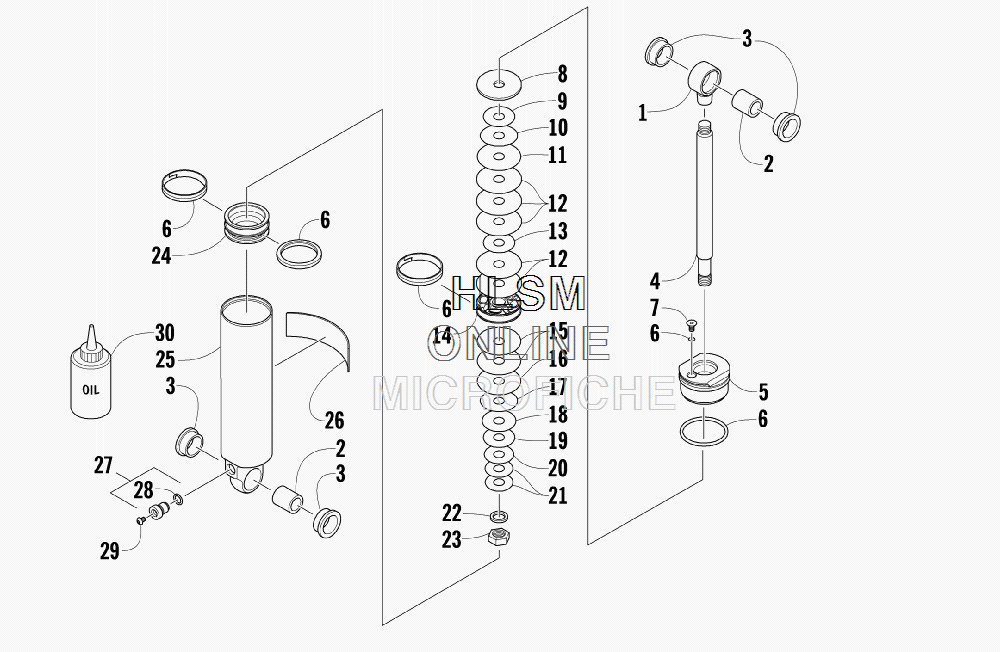

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat F8 EXT (INTERNATIONAL) - 2011 года выпуска`
-
№АртикулНазвание
-
-1704-872 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
10604-893 EYELET, SHOCKEYELET, SHOCK
-
22604-223 SLEEVESLEEVE
-
31604-222 BUSHINGBUSHING
-
43604-510 ROD, SHOCKROD, SHOCK
-
52604-627 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
62604-880 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
72604-530 SCREW, SETSCREW, SET
-
82603-466 WASHER, TOP OUTWASHER, TOP OUT
-
90603-340 VALVE, SHOCK 1.000 X 0.008 IN.VALVE, SHOCK 1.000 X 0.008 IN.
-
100603-350 VALVE, SHOCK 1.300 X 0.010 IN.VALVE, SHOCK 1.300 X 0.010 IN.
-
112604-647 VALVE, SHOCK 1.425 X 0.010 IN.VALVE, SHOCK 1.425 X 0.010 IN.
-
122604-631 VALVE, SHOCK 1.600 X 0.010 IN.VALVE, SHOCK 1.600 X 0.010 IN.
-
130603-339 VALVE, SHOCK 1.000 X 0.006 IN.VALVE, SHOCK 1.000 X 0.006 IN.
-
142604-645 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
152604-633 VALVE, SHOCK 1.425 X 0.015 IN.VALVE, SHOCK 1.425 X 0.015 IN.
-
162604-632 VALVE, SHOCK 1.425 X 0.012 IN.VALVE, SHOCK 1.425 X 0.012 IN.
-
170603-891 VALVE, SHOCK 1.300 X 0.012 IN.VALVE, SHOCK 1.300 X 0.012 IN.
-
180603-882 VALVE, SHOCK 1.100 X 0.012 IN.VALVE, SHOCK 1.100 X 0.012 IN.
-
190603-881 VALVE, SHOCK 1.000 X 0.012 IN.VALVE, SHOCK 1.000 X 0.012 IN.
-
200603-886 VALVE, SHOCK 0.900 X 0.015 IN.VALVE, SHOCK 0.900 X 0.015 IN.
-
210603-885 VALVE, SHOCK 0.800 X 0.015 IN.VALVE, SHOCK 0.800 X 0.015 IN.
-
220603-389 WASHER, BACKUPWASHER, BACKUP
-
230603-301 NUTNUT
-
242604-886 PISTON, FLOATINGPISTON, FLOATING
-
253604-511 BODY, SHOCKBODY, SHOCK
-
262604-889 DECAL, SHOCKDECAL, SHOCK
-
270703-341 VALVE, PRESSURE - ASSEMBLY (INC. 28)VALVE, PRESSURE - ASSEMBLY (INC. 28)
-
281604-318 ...O-RING...O-RING
-
290624-097 SCREW, VALVESCREW, VALVE
-
305639-240 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
