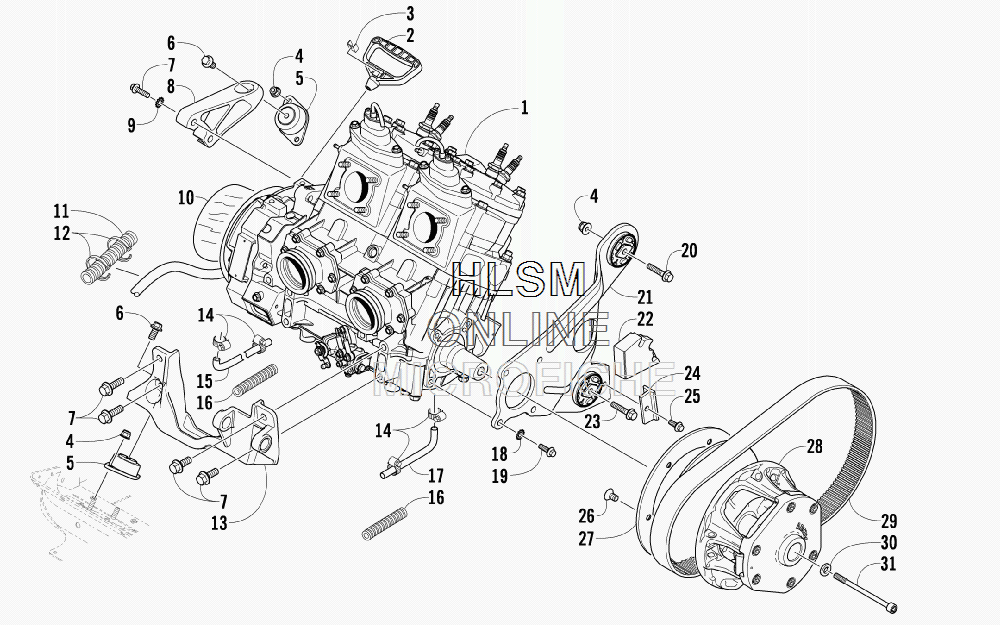

ENGINE AND RELATED PARTS для Arctic Cat F8 EXT (INTERNATIONAL) - 2011 года выпуска`
-
№АртикулНазвание
-
10662-609 ENGINE, AB80L4 W/O EFI COMPONENTSENGINE, AB80L4 W/O EFI COMPONENTS
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
48427-802 NUT, LOCKNUT, LOCK
-
50608-496 MOUNT, ENGINEMOUNT, ENGINE
-
68409-020 SCREW, CAPSCREW, CAP
-
78409-026 SCREW, CAPSCREW, CAP
-
80708-474 MOUNT, ENGINE - MAGMOUNT, ENGINE - MAG
-
98053-272 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
104606-425 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
111619-131 CONDUIT, FLEXIBLE (3/4 IN. ID) - 12 IN.CONDUIT, FLEXIBLE (3/4 IN. ID) - 12 IN.
-
120123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
130708-501 MOUNT, ENGINE - FRONTMOUNT, ENGINE - FRONT
-
140623-373 CLAMP, HOSECLAMP, HOSE
-
150610-779 HOSE, COOLANT - MAG/THROTTLE BODYHOSE, COOLANT - MAG/THROTTLE BODY
-
160619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
170610-731 HOSE, COOLANT - PTO/THROTTLE BODYHOSE, COOLANT - PTO/THROTTLE BODY
-
188053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
198408-821 SCREW, CAPSCREW, CAP
-
208408-845 SCREW, CAPSCREW, CAP
-
210708-484 BRACKET, ENGINE MOUNTING - LEFTBRACKET, ENGINE MOUNTING - LEFT
-
220608-511 BUMPER, TORQUEBUMPER, TORQUE
-
238408-847 SCREW, CAPSCREW, CAP
-
240608-512 STOP, TORQUE BUMPERSTOP, TORQUE BUMPER
-
250623-765 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
261623-821 SCREW, MACHINESCREW, MACHINE
-
270645-410 RING, DAMPERRING, DAMPER
-
280746-245 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
290627-046 BELT, DRIVEBELT, DRIVE
-
301623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
311623-792 BOLT, CLUTCHBOLT, CLUTCH
