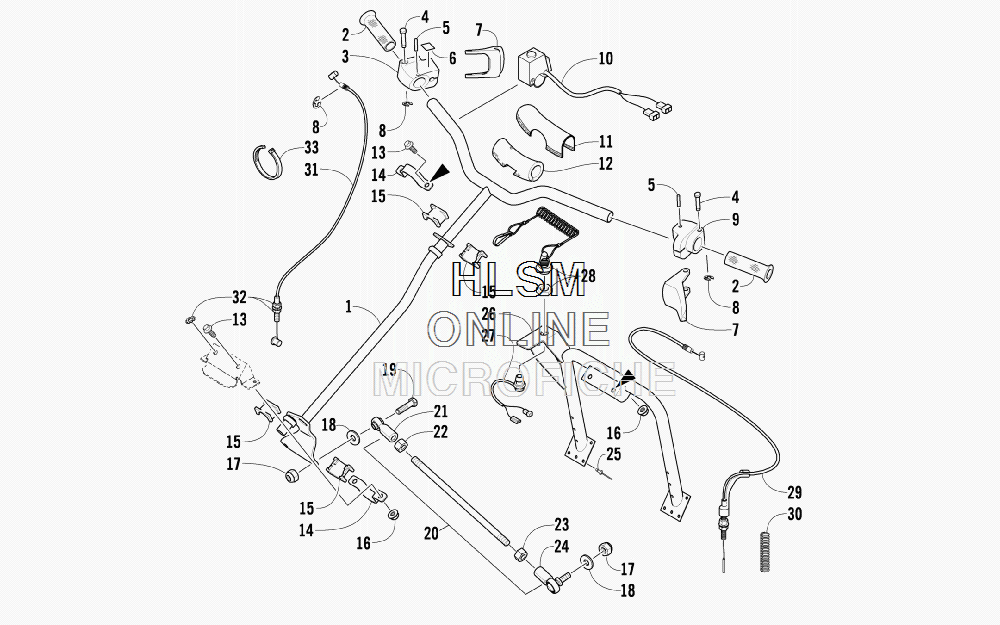

STEERING POST AND TIE ROD ASSEMBLY для Arctic Cat 120 SNO PRO - 2011 года выпуска`

№

Артикул

Название
1

1705-313 POST, STEERING - BLACK

POST, STEERING - BLACK

16 430 ₽
2

1606-765 GRIP, HANDLE

GRIP, HANDLE

3 320 ₽
3

0302-165 CONTROL, THROTTLE

CONTROL, THROTTLE

3 530 ₽
4

1623-828 PIN

PIN

1 870 ₽
5

1623-882 PIN, SPRING

PIN, SPRING

520 ₽
6

0611-022 DECAL, ENGINE STOP SWITCH

DECAL, ENGINE STOP SWITCH

520 ₽
7

0109-609 LEVER, THROTTLE/BRAKE

LEVER, THROTTLE/BRAKE

3 110 ₽
8

0123-231 RING, RETAINING

RING, RETAINING

210 ₽
9

0302-147 HOUSING, BRAKE

HOUSING, BRAKE

3 110 ₽
10

0609-007 SWITCH, ENGINE STOP

SWITCH, ENGINE STOP

8 110 ₽
11

0605-560 COVER, HANDLEBAR PAD

COVER, HANDLEBAR PAD

3 950 ₽
12

0605-501 PAD, HANDLEBAR

PAD, HANDLEBAR

4 990 ₽
13

1623-861 SCREW, CAP

SCREW, CAP

270 ₽
14

0705-896 RETAINER, BEARING

RETAINER, BEARING

2 490 ₽
15

0605-444 BEARING, STEERING POST

BEARING, STEERING POST

770 ₽
16

1623-868 NUT, LOCK

NUT, LOCK

60 ₽
17

1623-423 NUT, LOCK

NUT, LOCK

580 ₽
18

1623-874 WASHER

WASHER

20 ₽
19

8004-135 SCREW, CAP

SCREW, CAP

170 ₽
20

1703-853 TIE ROD - ASSEMBLY (INC. 21-24)

TIE ROD - ASSEMBLY (INC. 21-24)

17 470 ₽
22

0623-260 ...NUT, HEX - LEFT-HAND THREAD

...NUT, HEX - LEFT-HAND THREAD

170 ₽
23

0123-144 ...NUT, HEX - RIGHT-HAND THREAD

...NUT, HEX - RIGHT-HAND THREAD

40 ₽
25

1623-876 RIVET

RIVET

60 ₽
26

1707-444 SUPPORT, STEERING POST - BLACK

SUPPORT, STEERING POST - BLACK

10 600 ₽
27

0630-266 SWITCH, TETHER - ASSEMBLY (INC. 28)

SWITCH, TETHER - ASSEMBLY (INC. 28)

11 020 ₽
28

0630-139 ...CORD, TETHER SWITCH

...CORD, TETHER SWITCH

7 900 ₽
29

0687-229 CABLE, BRAKE

CABLE, BRAKE

8 520 ₽
30

1602-100 SPRING, RETURN - BRAKE

SPRING, RETURN - BRAKE

1 870 ₽
31

0687-231 CABLE, THROTTLE (INC. TWO NO. 32)

CABLE, THROTTLE (INC. TWO NO. 32)

6 860 ₽
32

8053-212 ...WASHER, EXTERNAL TOOTH LOCK

...WASHER, EXTERNAL TOOTH LOCK

20 ₽
33

0123-788 TIE, CABLE - 8 IN.

TIE, CABLE - 8 IN.

20 ₽
