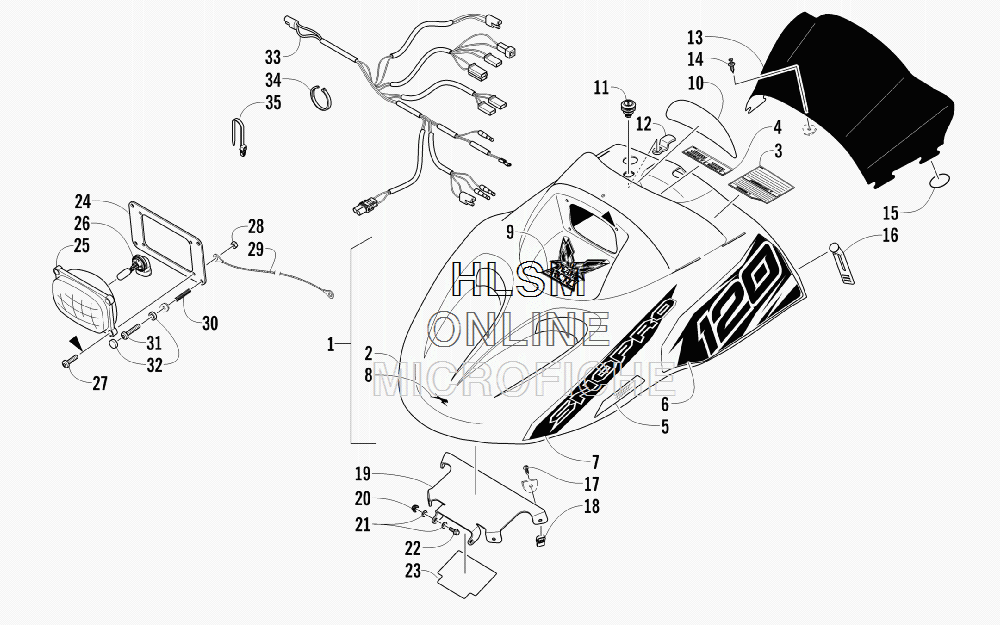

HOOD- HEADLIGHT- AND WINDSHIELD ASSEMBLY для Arctic Cat 120 SNO PRO - 2011 года выпуска`
-
№АртикулНазвание
-
13718-084 HOOD W/DECALS - GREEN (INC. 2-10)HOOD W/DECALS - GREEN (INC. 2-10)
-
22718-270 ...HOOD W/O DECALS - GREEN (INC. 3-5)...HOOD W/O DECALS - GREEN (INC. 3-5)
-
33611-755 ......DECAL, CAUTION - THROTTLE......DECAL, CAUTION - THROTTLE
-
43611-678 ......DECAL, CAUTION - HOOD......DECAL, CAUTION - HOOD
-
59611-382 ......DECAL, REFLECTOR - RIGHT - AMBER......DECAL, REFLECTOR - RIGHT - AMBER
-
59611-383 ......DECAL, REFLECTOR - LEFT - AMBER......DECAL, REFLECTOR - LEFT - AMBER
-
69611-316 ...DECAL, HOOD - LOWER RIGHT...DECAL, HOOD - LOWER RIGHT
-
69611-317 ...DECAL, HOOD - LOWER LEFT...DECAL, HOOD - LOWER LEFT
-
79611-318 ...DECAL, HOOD - FORWARD - RIGHT...DECAL, HOOD - FORWARD - RIGHT
-
79611-319 ...DECAL, HOOD - FORWARD - LEFT...DECAL, HOOD - FORWARD - LEFT
-
88611-267 ...DECAL, AIRCAT - CHROME...DECAL, AIRCAT - CHROME
-
98611-716 ...DECAL, HOOD - CREST...DECAL, HOOD - CREST
-
109611-042 ...DECAL, HOOD/CONSOLE...DECAL, HOOD/CONSOLE
-
111623-846 LATCH, HOODLATCH, HOOD
-
121623-847 ARM, HOOD LATCHARM, HOOD LATCH
-
134606-411 WINDSHIELDWINDSHIELD
-
140623-243 CLIP, RETAININGCLIP, RETAINING
-
150616-032 O-RING, WINDSHIELDO-RING, WINDSHIELD
-
161606-930 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
170623-902 SCREW, MACHINESCREW, MACHINE
-
181623-023 CLIP, U-NUTCLIP, U-NUT
-
192706-140 BRACKET, MOUNTING - HOOD - UPPERBRACKET, MOUNTING - HOOD - UPPER
-
201623-868 NUT, LOCKNUT, LOCK
-
211623-011 WASHERWASHER
-
228020-039 SCREW, CAPSCREW, CAP
-
238611-603 DECAL, JET CHARTDECAL, JET CHART
-
243706-719 PLATE, ADAPTER - HEADLIGHTPLATE, ADAPTER - HEADLIGHT
-
250609-817 HEADLIGHT ASSEMBLY (INC. 26)HEADLIGHT ASSEMBLY (INC. 26)
-
260609-251 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
271623-859 SCREW, MACHINESCREW, MACHINE
-
288041-246 NUT, LOCKNUT, LOCK
-
292606-247 CABLE, HOODCABLE, HOOD
-
300123-614 SPRING, ADJUSTMENTSPRING, ADJUSTMENT
-
311623-860 SCREW, MACHINESCREW, MACHINE
-
320124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
331686-578 HARNESS, WIRING - MAINHARNESS, WIRING - MAIN
-
340123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
350623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
