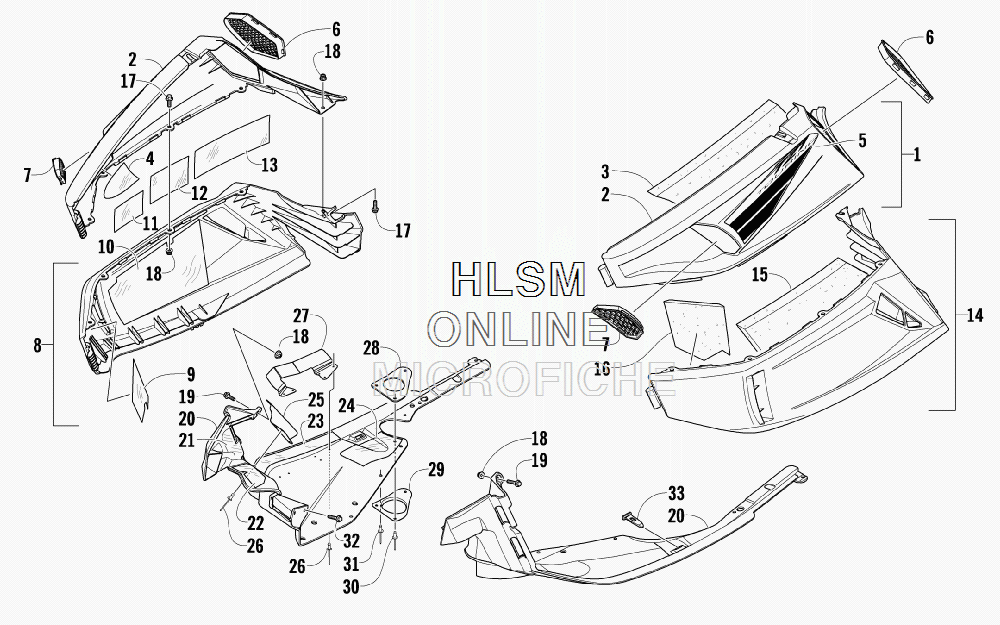

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat TZ1 - 2010 года выпуска`
-
№АртикулНазвание
-
12718-884 PANEL, SIDE - UPPER - RIGHT W/DECALS - WHITE (INC. 2 AND 4-5)PANEL, SIDE - UPPER - RIGHT W/DECALS - WHITE (INC. 2 AND 4-5)
-
12718-885 PANEL, SIDE - UPPER - LEFT W/DECALS - WHITE (INC. 2-3 AND 5)PANEL, SIDE - UPPER - LEFT W/DECALS - WHITE (INC. 2-3 AND 5)
-
22718-536 ...PANEL, SIDE - UPPER - RIGHT W/O DECALS - WHITE (INC. 4)...PANEL, SIDE - UPPER - RIGHT W/O DECALS - WHITE (INC. 4)
-
22718-357 ...PANEL, SIDE - UPPER - LEFT W/O DECALS - WHITE (INC. 3)...PANEL, SIDE - UPPER - LEFT W/O DECALS - WHITE (INC. 3)
-
30617-563 ......FOAM, UPPER SIDE PANEL - LEFT......FOAM, UPPER SIDE PANEL - LEFT
-
44606-799 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
58611-780 ...DECAL, UPPER SIDE PANEL - RIGHT...DECAL, UPPER SIDE PANEL - RIGHT
-
58611-781 ...DECAL, UPPER SIDE PANEL - LEFT...DECAL, UPPER SIDE PANEL - LEFT
-
64606-650 VENT, UPPER SIDE PANEL - REAR - RIGHTVENT, UPPER SIDE PANEL - REAR - RIGHT
-
64606-651 VENT, UPPER SIDE PANEL - REAR - LEFTVENT, UPPER SIDE PANEL - REAR - LEFT
-
74606-662 VENT, UPPER SIDE PANEL - FRONT - RIGHTVENT, UPPER SIDE PANEL - FRONT - RIGHT
-
74606-663 VENT, UPPER SIDE PANEL - FRONT - LEFTVENT, UPPER SIDE PANEL - FRONT - LEFT
-
82718-930 PANEL, SIDE - LOWER - RIGHT W/O DECALS - BLACK (INC. 9-10)PANEL, SIDE - LOWER - RIGHT W/O DECALS - BLACK (INC. 9-10)
-
96606-212 ...FOIL, PROTECTIVE - LOWER - FRONT...FOIL, PROTECTIVE - LOWER - FRONT
-
106606-214 ...FOIL, PROTECTIVE - LOWER - REAR...FOIL, PROTECTIVE - LOWER - REAR
-
116606-219 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
126606-218 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
136606-220 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
142718-349 PANEL, SIDE - LOWER - LEFT W/O DECALS - BLACK (INC. 15-16)PANEL, SIDE - LOWER - LEFT W/O DECALS - BLACK (INC. 15-16)
-
150617-567 ...FOAM, LOWER SIDE PANEL - REAR - LEFT...FOAM, LOWER SIDE PANEL - REAR - LEFT
-
160617-566 ...FOAM, LOWER SIDE PANEL - FRONT - LEFT...FOAM, LOWER SIDE PANEL - FRONT - LEFT
-
178408-620 SCREW, CAPSCREW, CAP
-
188427-602 NUT, LOCKNUT, LOCK
-
198408-635 SCREW, CAPSCREW, CAP
-
204706-772 PLATE, SKID - RIGHTPLATE, SKID - RIGHT
-
204706-073 PLATE, SKID - LEFTPLATE, SKID - LEFT
-
214606-982 FOIL, SKID PLATE HINGEFOIL, SKID PLATE HINGE
-
224606-796 FOIL, PROTECTIVE - UPPER - FRONTFOIL, PROTECTIVE - UPPER - FRONT
-
234606-798 FOIL, PROTECTIVE - OUTERFOIL, PROTECTIVE - OUTER
-
244606-797 FOIL, PROTECTIVE - CENTERFOIL, PROTECTIVE - CENTER
-
256606-226 SHIELD, HEATSHIELD, HEAT
-
268061-506 RIVETRIVET
-
276606-227 SHIELD, HEATSHIELD, HEAT
-
282612-469 SEAL, EXHAUST - OUTLETSEAL, EXHAUST - OUTLET
-
291712-594 SHIELD, HEAT - EXHAUST OUTLETSHIELD, HEAT - EXHAUST OUTLET
-
300623-778 RIVETRIVET
-
318061-708 RIVETRIVET
-
320623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
334606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
