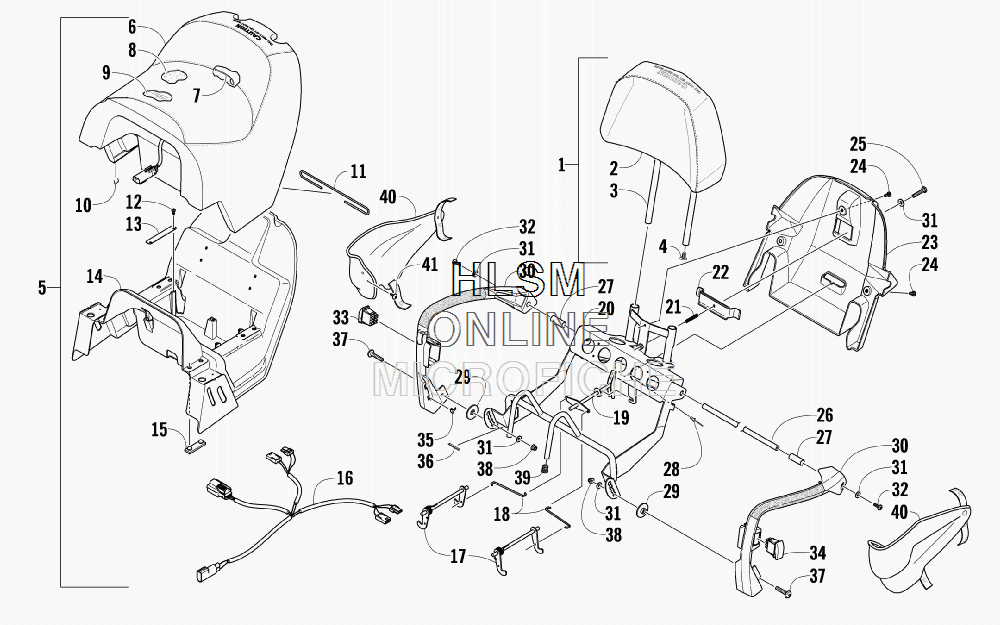

PASSENGER SEAT AND BACKREST ASSEMBLY для Arctic Cat TZ1 - 2010 года выпуска`
-
№АртикулНазвание
-
14706-249 BACKREST - COMPLETE (INC. 2-4)BACKREST - COMPLETE (INC. 2-4)
-
24706-250 ...COVER, BACKREST...COVER, BACKREST
-
35606-082 ...BACKREST...BACKREST
-
41623-732 ...CLIP, RETAINING...CLIP, RETAINING
-
54706-648 SEAT, PASSENGER - ASSEMBLY (INC. 6-41)SEAT, PASSENGER - ASSEMBLY (INC. 6-41)
-
64706-248 ...COVER, PASSENGER SEAT (INC. 7)...COVER, PASSENGER SEAT (INC. 7)
-
75606-378 ......WIRE, SEAT......WIRE, SEAT
-
83706-738 ...FOAM, SEAT...FOAM, SEAT
-
90609-869 ...PAD, SEAT HEATER...PAD, SEAT HEATER
-
100624-528 ...STAPLE...STAPLE
-
115606-380 ...WIRE, SEAT...WIRE, SEAT
-
120623-727 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
135606-178 ...RETAINER, SEAT LATCH...RETAINER, SEAT LATCH
-
144606-290 ...BASE, SEAT...BASE, SEAT
-
150406-879 ...BUMPER, SEAT...BUMPER, SEAT
-
161686-570 ...HARNESS...HARNESS
-
174706-194 ...ROD, LATCH W/SPRING - RIGHT...ROD, LATCH W/SPRING - RIGHT
-
174706-195 ...ROD, LATCH W/SPRING - LEFT...ROD, LATCH W/SPRING - LEFT
-
185606-204 ...ROD, CROSS...ROD, CROSS
-
194706-090 ...ROD, HANDLE...ROD, HANDLE
-
203706-808 ...FRAME, SEAT...FRAME, SEAT
-
215606-095 ...SPRING, ADJUSTMENT...SPRING, ADJUSTMENT
-
223706-806 ...PLATE, CLAMP - BACKREST...PLATE, CLAMP - BACKREST
-
234606-291 ...PANEL, SEAT-BASE...PANEL, SEAT-BASE
-
240423-396 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
251623-774 ...SCREW, CAP...SCREW, CAP
-
265606-020 ...ROD...ROD
-
275606-018 ...SPACER...SPACER
-
280623-853 ...RIVET...RIVET
-
294706-075 ...SPACER...SPACER
-
305606-084 ...HANDHOLD - RIGHT...HANDHOLD - RIGHT
-
305606-085 ...HANDHOLD - LEFT...HANDHOLD - LEFT
-
318050-217 ...WASHER...WASHER
-
321623-789 ...SCREW, MACHINE...SCREW, MACHINE
-
330609-835 ...SWITCH, HANDWARMER...SWITCH, HANDWARMER
-
340609-836 ...SWITCH, SEAT HEATER...SWITCH, SEAT HEATER
-
351623-703 ...CLIP, SPEED...CLIP, SPEED
-
360706-371 ...TRIM...TRIM
-
378476-630 ...SCREW, MACHINE...SCREW, MACHINE
-
388427-602 ...NUT, LOCK...NUT, LOCK
-
391623-697 ...PLUG...PLUG
-
405606-212 ...WINDGUARD - RIGHT...WINDGUARD - RIGHT
-
405606-213 ...WINDGUARD - LEFT...WINDGUARD - LEFT
-
411623-129 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
