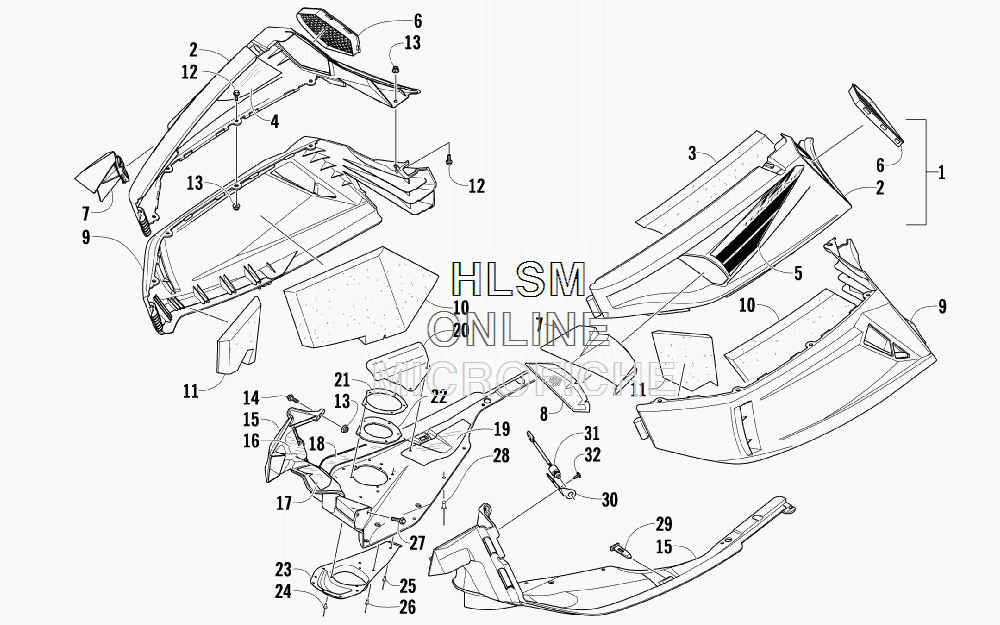

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat TZ1 TURBO LXR NAVY BLUE - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    2718-888 PANEL, SIDE - UPPER - RIGHT W/DECALS - WHITE (INC. 2-5)
    PANEL, SIDE - UPPER - RIGHT W/DECALS - WHITE (INC. 2-5)
  • 1
    2718-887 PANEL, SIDE - UPPER - LEFT W/DECALS - WHITE (INC. 2-3 AND 5)
    PANEL, SIDE - UPPER - LEFT W/DECALS - WHITE (INC. 2-3 AND 5)
  • 2
    2718-860 ...PANEL, SIDE - UPPER - RIGHT W/O DECALS - WHITE (INC. 3-4)
    ...PANEL, SIDE - UPPER - RIGHT W/O DECALS - WHITE (INC. 3-4)
  • 2
    2718-803 ...PANEL, SIDE - UPPER - LEFT W/O DECALS - WHITE (INC. 3)
    ...PANEL, SIDE - UPPER - LEFT W/O DECALS - WHITE (INC. 3)
  • 3
    0617-562 ......FOAM, UPPER SIDE PANEL - RIGHT
    ......FOAM, UPPER SIDE PANEL - RIGHT
  • 3
    0617-563 ......FOAM, UPPER SIDE PANEL - LEFT
    ......FOAM, UPPER SIDE PANEL - LEFT
  • 4
    4606-799 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 5
    8611-780 ...DECAL, UPPER SIDE PANEL - RIGHT
    ...DECAL, UPPER SIDE PANEL - RIGHT
  • 5
    8611-781 ...DECAL, UPPER SIDE PANEL - LEFT
    ...DECAL, UPPER SIDE PANEL - LEFT
  • 6
    4606-650 VENT, UPPER SIDE PANEL - REAR - RIGHT - BLACK
    VENT, UPPER SIDE PANEL - REAR - RIGHT - BLACK
  • 6
    4606-651 VENT, UPPER SIDE PANEL - REAR - LEFT - BLACK
    VENT, UPPER SIDE PANEL - REAR - LEFT - BLACK
  • 7
    4706-692 VENT, UPPER SIDE PANEL - FRONT - RIGHT - NAVY BLUE
    VENT, UPPER SIDE PANEL - FRONT - RIGHT - NAVY BLUE
  • 7
    4706-693 VENT, UPPER SIDE PANEL - FRONT - LEFT - NAVY BLUE
    VENT, UPPER SIDE PANEL - FRONT - LEFT - NAVY BLUE
  • 8
    6606-191 SCREEN, VENT
    SCREEN, VENT
  • 9
    2718-800 PANEL, SIDE - LOWER - RIGHT W/O DECALS - BLACK (INC. 10-11)
    PANEL, SIDE - LOWER - RIGHT W/O DECALS - BLACK (INC. 10-11)
  • 9
    2718-349 PANEL, SIDE - LOWER - LEFT W/O DECALS - BLACK (INC. 10-11)
    PANEL, SIDE - LOWER - LEFT W/O DECALS - BLACK (INC. 10-11)
  • 10
    0617-568 ...FOAM, LOWER SIDE PANEL - REAR - RIGHT
    ...FOAM, LOWER SIDE PANEL - REAR - RIGHT
  • 10
    0617-567 ...FOAM, LOWER SIDE PANEL - REAR - LEFT
    ...FOAM, LOWER SIDE PANEL - REAR - LEFT
  • 11
    0617-564 ...FOAM, LOWER SIDE PANEL - FRONT - RIGHT
    ...FOAM, LOWER SIDE PANEL - FRONT - RIGHT
  • 11
    0617-566 ...FOAM, LOWER SIDE PANEL - FRONT - LEFT
    ...FOAM, LOWER SIDE PANEL - FRONT - LEFT
  • 12
    8408-620 SCREW, CAP
    SCREW, CAP
  • 13
    8427-602 NUT, LOCK
    NUT, LOCK
  • 14
    8408-635 SCREW, CAP
    SCREW, CAP
  • 15
    3706-706 PLATE, SKID - RIGHT
    PLATE, SKID - RIGHT
  • 15
    4706-073 PLATE, SKID - LEFT
    PLATE, SKID - LEFT
  • 16
    4606-982 FOIL, SKID PLATE HINGE
    FOIL, SKID PLATE HINGE
  • 17
    4606-796 FOIL, PROTECTIVE UPPER FRONT
    FOIL, PROTECTIVE UPPER FRONT
  • 18
    4606-798 FOIL, PROTECTIVE OUTER
    FOIL, PROTECTIVE OUTER
  • 19
    4606-797 FOIL, PROTECTIVE CENTER
    FOIL, PROTECTIVE CENTER
  • 20
    2612-268 SHIELD, HEAT
    SHIELD, HEAT
  • 21
    1712-328 PLATE, EXHAUST - OUTLET
    PLATE, EXHAUST - OUTLET
  • 22
    2612-122 SEAL, EXHAUST - OUTLET
    SEAL, EXHAUST - OUTLET
  • 23
    1712-501 SHIELD, HEAT - EXHAUST OUTLET
    SHIELD, HEAT - EXHAUST OUTLET
  • 24
    8060-510 RIVET
    RIVET
  • 25
    8061-508 RIVET
    RIVET
  • 26
    0623-778 RIVET
    RIVET
  • 27
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 28
    8061-708 RIVET
    RIVET
  • 29
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 30
    0745-363 BRACKET, HOOD SENSOR
    BRACKET, HOOD SENSOR
  • 31
    0630-228 SWITCH, ALARM - REVERSE
    SWITCH, ALARM - REVERSE
  • 32
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
