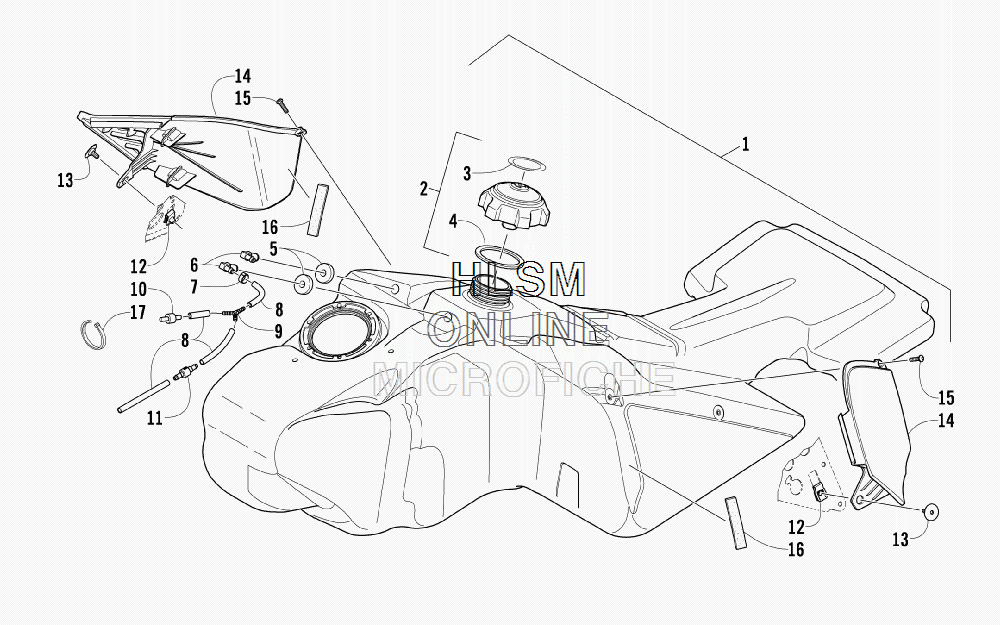

GAS TANK ASSEMBLY для Arctic Cat TZ1 TURBO LXR NAVY BLUE - 2010 года выпуска
-
№АртикулНазвание
-
12670-060 TANK, GAS - ASSEMBLY (INC. 2-6)TANK, GAS - ASSEMBLY (INC. 2-6)
-
22670-176 ...CAP, GAS TANK - ASSEMBLY (INC. 3-4)...CAP, GAS TANK - ASSEMBLY (INC. 3-4)
-
39611-313 ......DECAL, GAS TANK CAP......DECAL, GAS TANK CAP
-
40109-733 ......SEAL, GAS TANK CAP......SEAL, GAS TANK CAP
-
51670-325 ...GROMMET...GROMMET
-
61670-494 ...FITTING, ELBOW...FITTING, ELBOW
-
71623-233 CLAMP, HOSECLAMP, HOSE
-
86101-009 HOSE, GASLINE - 50 FTHOSE, GASLINE - 50 FT
-
86101-001 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
92670-105 Y-FITTINGY-FITTING
-
100610-059 VALVE, CHECKVALVE, CHECK
-
111670-913 VALVE, PRESSURE-RELIEFVALVE, PRESSURE-RELIEF
-
120423-577 CLIP, U-NUTCLIP, U-NUT
-
130423-101 SCREW, SHOULDERSCREW, SHOULDER
-
145606-144 KNEE PAD, RIGHTKNEE PAD, RIGHT
-
145606-145 KNEE PAD, LEFTKNEE PAD, LEFT
-
158470-510 SCREW, MACHINESCREW, MACHINE
-
160619-946 TAPE, FOAM - 1 FTTAPE, FOAM - 1 FT
-
170123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
