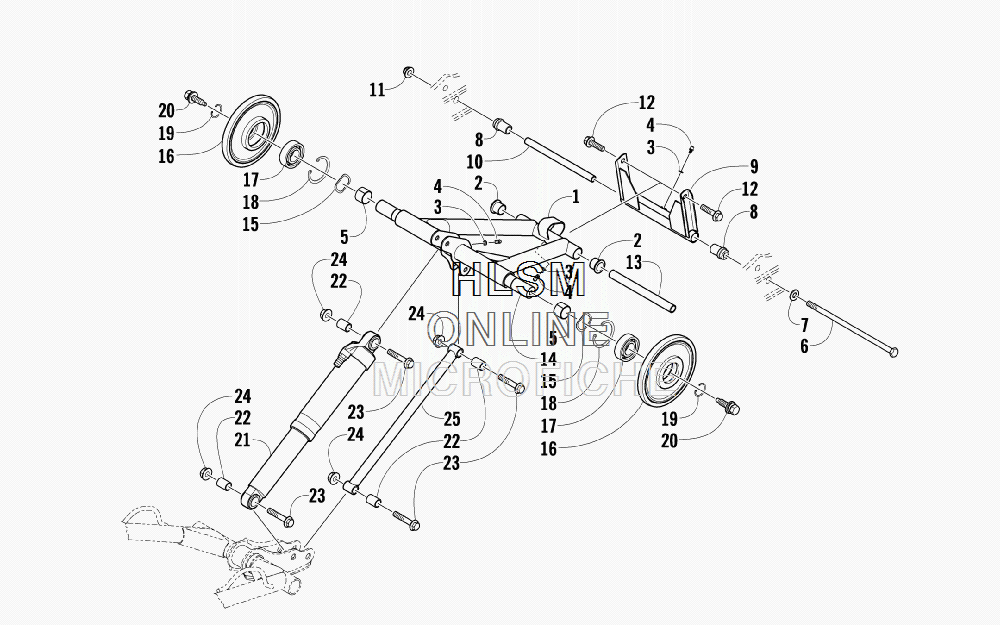

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat M6 - 2010 года выпуска`
-
№АртикулНазвание
-
11704-646 ARM, IDLER - GREEN (INC. 2, TWO NO. 3-4, AND 5)ARM, IDLER - GREEN (INC. 2, TWO NO. 3-4, AND 5)
-
23604-028 ...BUSHING, FLARED...BUSHING, FLARED
-
31623-011 ...WASHER...WASHER
-
41623-010 ...FITTING, GREASE...FITTING, GREASE
-
52604-852 ...BUSHING...BUSHING
-
61623-037 SCREW, CAPSCREW, CAP
-
70623-439 WASHERWASHER
-
82604-664 BUSHING, REAR ARMBUSHING, REAR ARM
-
91704-648 ARM, REAR - GREEN (INC. ONE NO. 3-4)ARM, REAR - GREEN (INC. ONE NO. 3-4)
-
102604-663 TUBE, AXLETUBE, AXLE
-
118047-490 NUT, LOCKNUT, LOCK
-
121623-503 SCREW, CAPSCREW, CAP
-
132604-176 AXLEAXLE
-
143604-254 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
151623-692 WASHER, WAVEWASHER, WAVE
-
162604-699 WHEEL, IDLER (INC. 17-18)WHEEL, IDLER (INC. 17-18)
-
170107-598 ...BEARING...BEARING
-
180123-798 ...RING, RETAINING...RING, RETAINING
-
191623-690 RING, RETAININGRING, RETAINING
-
201623-166 SCREW, CAPSCREW, CAP
-
211704-813 SHOCK ABSORBERSHOCK ABSORBER
-
221604-139 SLEEVESLEEVE
-
238020-226 SCREW, CAPSCREW, CAP
-
248041-486 NUT, LOCKNUT, LOCK
-
251704-683 LINK, REAR SHOCK - GREENLINK, REAR SHOCK - GREEN
