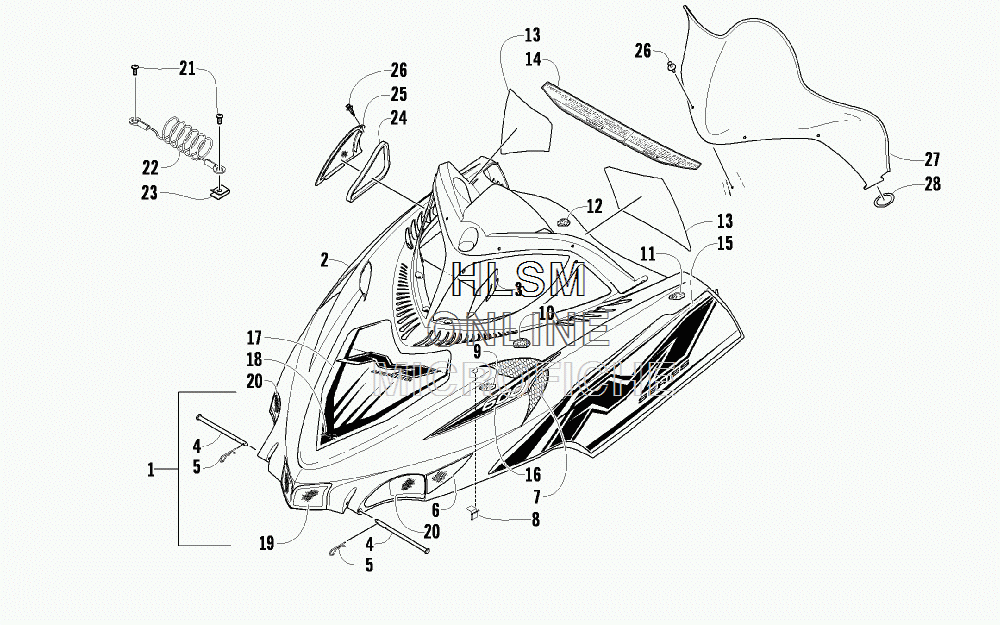

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat M6 - 2010 года выпуска`
-
№АртикулНазвание
-
12718-855 HOOD W/DECALS - GREEN (INC. 2-18)HOOD W/DECALS - GREEN (INC. 2-18)
-
22718-841 ...HOOD W/O DECALS - GREEN (INC. 3-14)...HOOD W/O DECALS - GREEN (INC. 3-14)
-
36606-222 ......FOAM, PROTECTIVE - HOOD TAB......FOAM, PROTECTIVE - HOOD TAB
-
41623-026 ......PIN, CLEVIS......PIN, CLEVIS
-
50623-847 ......CLIP, HAIRPIN......CLIP, HAIRPIN
-
68611-936 ......DECAL, REFLECTOR - RIGHT - AMBER......DECAL, REFLECTOR - RIGHT - AMBER
-
68611-937 ......DECAL, REFLECTOR - LEFT - AMBER......DECAL, REFLECTOR - LEFT - AMBER
-
72706-797 ......SCREEN, VENT - REAR - LEFT......SCREEN, VENT - REAR - LEFT
-
81623-694 ......CLIP, RETAINING......CLIP, RETAINING
-
90617-580 ......FOAM, HOOD - FORWARD - RIGHT......FOAM, HOOD - FORWARD - RIGHT
-
90617-581 ......FOAM, HOOD - FORWARD - LEFT......FOAM, HOOD - FORWARD - LEFT
-
100617-602 ......FOAM, HOOD - CENTER - LEFT......FOAM, HOOD - CENTER - LEFT
-
110617-582 ......FOAM, HOOD - REAR - RIGHT......FOAM, HOOD - REAR - RIGHT
-
110617-583 ......FOAM, HOOD - REAR - LEFT......FOAM, HOOD - REAR - LEFT
-
120617-584 ......FOAM, HOOD - REAR - CENTER......FOAM, HOOD - REAR - CENTER
-
138611-896 ......DECAL, WARNING - ENGLISH......DECAL, WARNING - ENGLISH
-
138611-897 ......DECAL, WARNING - FRENCH......DECAL, WARNING - FRENCH
-
146611-143 ......DECAL, CAUTION......DECAL, CAUTION
-
158611-930 ...DECAL, HOOD - LOWER RIGHT...DECAL, HOOD - LOWER RIGHT
-
158611-931 ...DECAL, HOOD - LOWER LEFT...DECAL, HOOD - LOWER LEFT
-
168611-924 ...DECAL, HOOD - UPPER RIGHT...DECAL, HOOD - UPPER RIGHT
-
168611-925 ...DECAL, HOOD - UPPER LEFT...DECAL, HOOD - UPPER LEFT
-
178611-948 ...DECAL, HOOD - CREST...DECAL, HOOD - CREST
-
188611-267 ...DECAL, AIRCAT - CHROME...DECAL, AIRCAT - CHROME
-
196606-046 SCREEN, VENT - CENTERSCREEN, VENT - CENTER
-
206606-044 SCREEN, VENT - FRONT - RIGHTSCREEN, VENT - FRONT - RIGHT
-
206606-045 SCREEN, VENT - FRONT - LEFTSCREEN, VENT - FRONT - LEFT
-
210623-302 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
222606-726 CABLE, HOODCABLE, HOOD
-
231623-052 CLIP, U-NUTCLIP, U-NUT
-
240617-486 FOAM, INTAKE BEZEL - RIGHTFOAM, INTAKE BEZEL - RIGHT
-
240617-487 FOAM, INTAKE BEZEL - LEFTFOAM, INTAKE BEZEL - LEFT
-
255606-080 BEZEL, INTAKE - RIGHTBEZEL, INTAKE - RIGHT
-
255606-081 BEZEL, INTAKE - LEFTBEZEL, INTAKE - LEFT
-
260623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
273606-868 WINDSHIELDWINDSHIELD
-
280616-032 O-RINGO-RING
