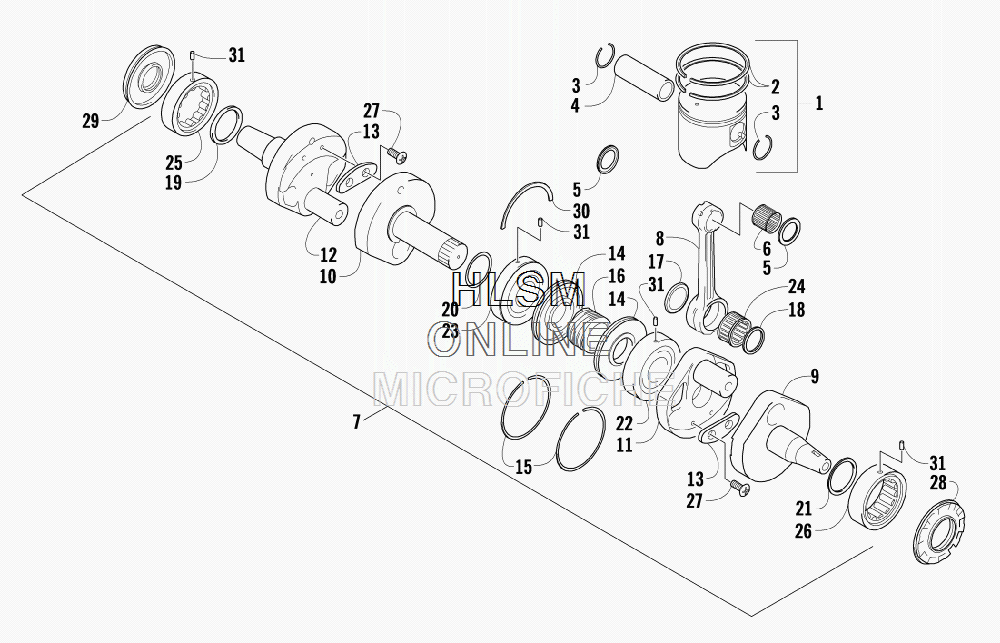

PISTON AND CRANKSHAFT для Arctic Cat M1000 SNO PRO 162 - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    3007-257 PISTON SET (INC. 2-3)
    PISTON SET (INC. 2-3)
  • 2
    3007-258 ...RING SET, PISTON
    ...RING SET, PISTON
  • 3
    3008-585 ...CIRCLIP, PISTON
    ...CIRCLIP, PISTON
  • 4
    3007-259 PIN, PISTON
    PIN, PISTON
  • 5
    3008-582 WASHER, M24X36X2
    WASHER, M24X36X2
  • 6
    3008-583 BEARING
    BEARING
  • 7
    3007-260 CRANKSHAFT ASSEMBLY (INC. 8-27)
    CRANKSHAFT ASSEMBLY (INC. 8-27)
  • 8
    3007-261 ...CONNECTING ROD
    ...CONNECTING ROD
  • 9
    3007-262 ...CRANKSHAFT - RIGHT
    ...CRANKSHAFT - RIGHT
  • 10
    3007-263 ...CRANKSHAFT - MIDDLE
    ...CRANKSHAFT - MIDDLE
  • 11
    3007-264 ...WHEEL, CRANKSHAFT
    ...WHEEL, CRANKSHAFT
  • 12
    3007-265 ...CRANKSHAFT - LEFT
    ...CRANKSHAFT - LEFT
  • 13
    3007-266 ...BALANCER, CRANKSHAFT
    ...BALANCER, CRANKSHAFT
  • 14
    3007-267 ...RACE, MIDDLE CRANK SEAL
    ...RACE, MIDDLE CRANK SEAL
  • 15
    3007-268 ...RING, MIDDLE CRANK SEAL
    ...RING, MIDDLE CRANK SEAL
  • 16
    3007-269 ...GEAR, OIL PUMP DRIVE
    ...GEAR, OIL PUMP DRIVE
  • 17
    3007-270 ...WASHER (32X44X3)
    ...WASHER (32X44X3)
  • 18
    3007-271 ...WASHER
    ...WASHER
  • 19
    3007-272 ...WASHER, CRANKSHAFT - LEFT (45X55X3)
    ...WASHER, CRANKSHAFT - LEFT (45X55X3)
  • 20
    3007-273 ...WASHER (42X50X1)
    ...WASHER (42X50X1)
  • 21
    3007-274 ...WASHER, CRANKSHAFT - RIGHT (44X52X2)
    ...WASHER, CRANKSHAFT - RIGHT (44X52X2)
  • 22
    3007-275 ...BEARING (37X90X21)
    ...BEARING (37X90X21)
  • 23
    3007-276 ...BEARING (37X90X21)
    ...BEARING (37X90X21)
  • 24
    3007-277 ...BEARING, CRANK PIN (32X41X22)
    ...BEARING, CRANK PIN (32X41X22)
  • 25
    3007-278 ...BEARING ASSEMBLY - LEFT (45X85X30.2)
    ...BEARING ASSEMBLY - LEFT (45X85X30.2)
  • 26
    3007-279 ...BEARING ASSEMBLY - RIGHT (37X90X23)
    ...BEARING ASSEMBLY - RIGHT (37X90X23)
  • 27
    3007-440 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 28
    3007-280 SEAL, OIL - RIGHT (37X90X8)
    SEAL, OIL - RIGHT (37X90X8)
  • 29
    3007-281 SEAL, OIL - LEFT (45X85X10)
    SEAL, OIL - LEFT (45X85X10)
  • 30
    3004-157 C-RING, 87.6X96X2
    C-RING, 87.6X96X2
  • 31
    3003-658 PIN, ALIGNMENT
    PIN, ALIGNMENT
