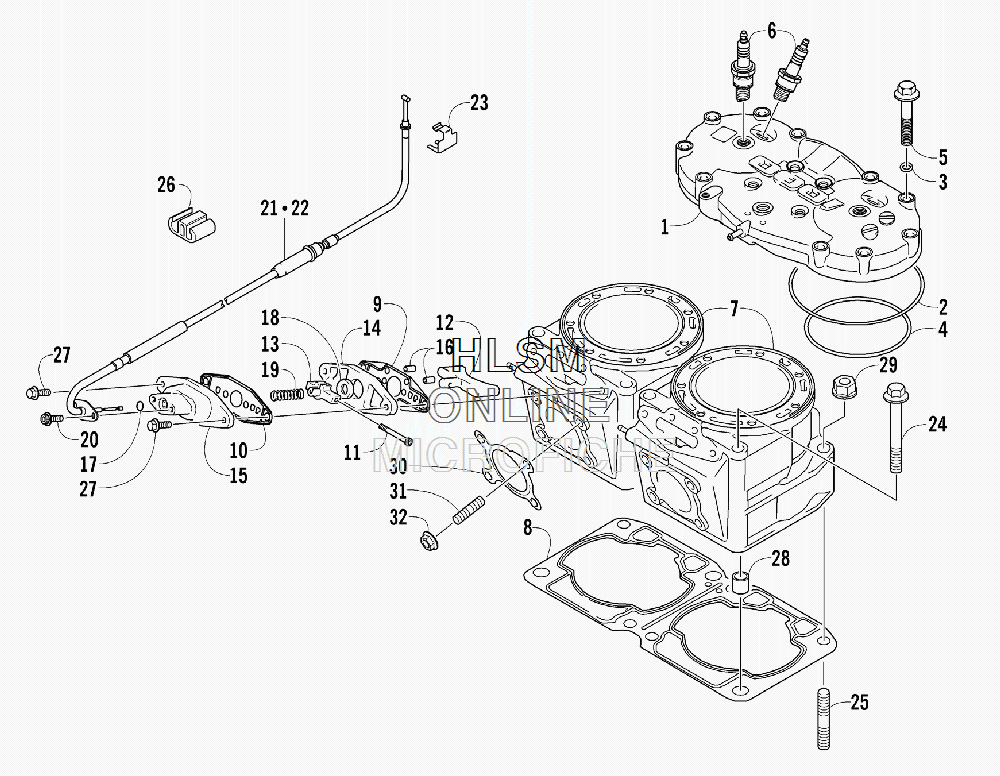

CYLINDER AND HEAD ASSEMBLY для Arctic Cat M1000 SNO PRO 162 - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    3007-619 HEAD, CYLINDER
    HEAD, CYLINDER
  • 2
    3007-240 ORING (D:1.8,ID:132)
    ORING (D:1.8,ID:132)
  • 3
    3003-227 O-RING, CYL HD BLT
    O-RING, CYL HD BLT
  • 4
    3007-241 O RING (D:2.4,ID:103.5)
    O RING (D:2.4,ID:103.5)
  • 5
    3006-538 SCREW, CAP
    SCREW, CAP
  • 6
    0217-709 PLUG, SPARK - BR9EYA
    PLUG, SPARK - BR9EYA
  • 7
    3007-243 CYLINDER
    CYLINDER
  • 8
    3007-242 GASKET, CYLINDER
    GASKET, CYLINDER
  • 9
    3007-705 GASKET, EXHAUST VALVE CASE
    GASKET, EXHAUST VALVE CASE
  • 10
    3006-436 GASKET, EXHAUST VALVE COVER
    GASKET, EXHAUST VALVE COVER
  • 11
    3005-983 PIN, EXHAUST VALVE
    PIN, EXHAUST VALVE
  • 12
    3007-245 VALVE, EXHAUST
    VALVE, EXHAUST
  • 13
    3005-860 STOPPER, EXHAUST VALVE
    STOPPER, EXHAUST VALVE
  • 14
    3006-495 PLATE, EXHAUST VALVE
    PLATE, EXHAUST VALVE
  • 15
    3006-425 COVER, EXHAUST VALVE
    COVER, EXHAUST VALVE
  • 16
    3006-321 PIN, DOWEL
    PIN, DOWEL
  • 17
    3005-226 O-RING
    O-RING
  • 18
    3006-322 SEAL, OIL
    SEAL, OIL
  • 19
    3007-246 SPRING
    SPRING
  • 20
    3007-433 SCREW, CAP
    SCREW, CAP
  • 21
    3007-247 CABLE, EXHAUST VALVE - MAG
    CABLE, EXHAUST VALVE - MAG
  • 22
    3007-248 CABLE, EXHAUST VALVE - PTO
    CABLE, EXHAUST VALVE - PTO
  • 23
    3005-747 HOLDER, EXHAUST VALVE CABLE
    HOLDER, EXHAUST VALVE CABLE
  • 24
    3007-249 BOLT (10X145)
    BOLT (10X145)
  • 25
    3007-250 BOLT, STUD
    BOLT, STUD
  • 26
    3005-808 CLAMP, EXHAUST VALVE CABLE
    CLAMP, EXHAUST VALVE CABLE
  • 27
    3007-434 SCREW, CAP
    SCREW, CAP
  • 28
    3004-975 PIN, DOWEL
    PIN, DOWEL
  • 29
    3007-391 NUT
    NUT
  • 30
    3007-286 GASKET, EXHAUST
    GASKET, EXHAUST
  • 31
    3007-415 BOLT, STUD
    BOLT, STUD
  • 32
    3007-390 NUT
    NUT
