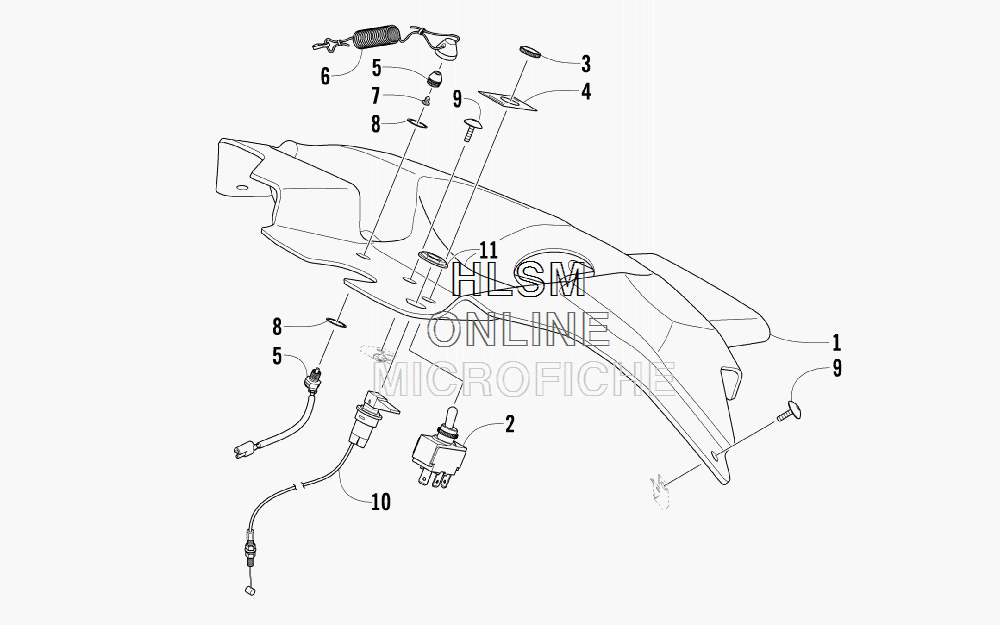

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat 600 SNO PRO SNO CROSS - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    4706-892 CONSOLE
    CONSOLE
  • 2
    0609-904 SWITCH, HANDWARMER/THUMBWARMER (INC. 3)
    SWITCH, HANDWARMER/THUMBWARMER (INC. 3)
  • 3
    0609-905 ...NUT
    ...NUT
  • 4
    9611-053 DECAL, SWITCH - HANDWARMER/THUMBWARMER
    DECAL, SWITCH - HANDWARMER/THUMBWARMER
  • 5
    0709-072 TETHER SWITCH (INC. 6-7)
    TETHER SWITCH (INC. 6-7)
  • 6
    0709-055 ...TETHER CORD W/SCREW (INC. 7)
    ...TETHER CORD W/SCREW (INC. 7)
  • 7
    0623-338 ......SCREW, SELF-TAPPING
    ......SCREW, SELF-TAPPING
  • 8
    0123-985 WASHER, INTERNAL TOOTH LOCK
    WASHER, INTERNAL TOOTH LOCK
  • 9
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 10
    0687-228 CABLE, CHOKE (INC. 11)
    CABLE, CHOKE (INC. 11)
  • 11
    0687-181 ...NUT
    ...NUT
