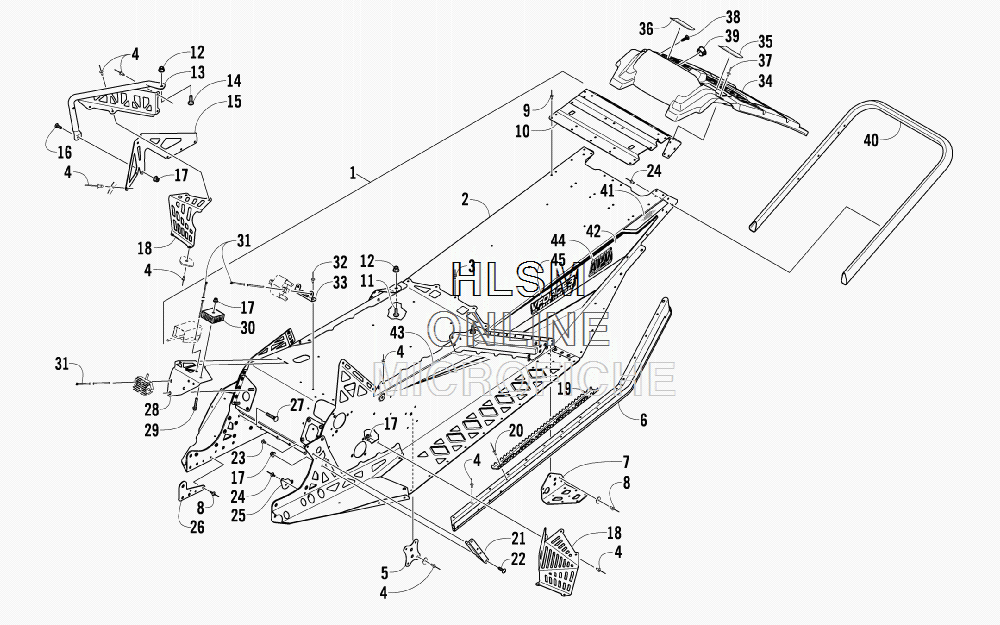

CHASSIS- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat 600 SNO PRO SNO CROSS - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    1707-417 CHASSIS ASSEMBLY - BLACK (INC. 2-11 AND TWO NO. 12)
    CHASSIS ASSEMBLY - BLACK (INC. 2-11 AND TWO NO. 12)
  • 2
    1707-440 ...TUNNEL, REAR - BLACK
    ...TUNNEL, REAR - BLACK
  • 3
    8061-682 ...RIVET
    ...RIVET
  • 4
    1623-130 ...RIVET
    ...RIVET
  • 5
    6606-061 ...PLATE, BACKING
    ...PLATE, BACKING
  • 6
    4706-750 ...ROLL, TUNNEL - RIGHT - BLACK
    ...ROLL, TUNNEL - RIGHT - BLACK
  • 6
    4706-751 ...ROLL, TUNNEL - LEFT - BLACK
    ...ROLL, TUNNEL - LEFT - BLACK
  • 7
    4706-834 ...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR - BLACK
    ...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR - BLACK
  • 7
    4706-835 ...BRACKET, SUSPENSION MOUNTING - LEFT - REAR - BLACK
    ...BRACKET, SUSPENSION MOUNTING - LEFT - REAR - BLACK
  • 8
    1623-241 ...RIVET
    ...RIVET
  • 9
    8060-706 ...RIVET
    ...RIVET
  • 10
    1707-441 ...END CAP, TUNNEL - BLACK
    ...END CAP, TUNNEL - BLACK
  • 11
    8476-835 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 12
    8427-802 ...NUT, LOCK
    ...NUT, LOCK
  • 13
    4706-514 HOOK, TOE - RIGHT - BLACK
    HOOK, TOE - RIGHT - BLACK
  • 13
    4706-515 HOOK, TOE - LEFT - BLACK
    HOOK, TOE - LEFT - BLACK
  • 14
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    4706-510 GUSSET, TOE STOP - RIGHT - BLACK
    GUSSET, TOE STOP - RIGHT - BLACK
  • 15
    4706-511 GUSSET, TOE STOP - LEFT - BLACK
    GUSSET, TOE STOP - LEFT - BLACK
  • 16
    8476-630 SCREW, MACHINE
    SCREW, MACHINE
  • 17
    8427-602 NUT, LOCK
    NUT, LOCK
  • 18
    4706-516 SHIELD, TOE - RIGHT - BLACK
    SHIELD, TOE - RIGHT - BLACK
  • 18
    4706-517 SHIELD, TOE - LEFT - BLACK
    SHIELD, TOE - LEFT - BLACK
  • 19
    4706-307 PLATE, GRIP - GREEN
    PLATE, GRIP - GREEN
  • 20
    8060-506 RIVET
    RIVET
  • 21
    0608-585 BRACKET, ENGINE/CHASSIS MOUNTING - LEFT
    BRACKET, ENGINE/CHASSIS MOUNTING - LEFT
  • 22
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    1623-463 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 24
    8060-686 RIVET
    RIVET
  • 25
    5606-672 PLATE, BACKING - PTO MOUNTING
    PLATE, BACKING - PTO MOUNTING
  • 26
    5606-628 BRACE, SUPPORT - INNER
    BRACE, SUPPORT - INNER
  • 27
    1623-020 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 28
    5606-966 PANEL, ELECTRICAL
    PANEL, ELECTRICAL
  • 29
    8408-635 SCREW, CAP
    SCREW, CAP
  • 30
    0630-181 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 31
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 31
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 32
    8060-682 RIVET
    RIVET
  • 33
    5606-536 BRACKET, MOUNTING - COIL
    BRACKET, MOUNTING - COIL
  • 34
    5606-525 SNOWFLAP
    SNOWFLAP
  • 35
    5611-853 DECAL, WARNING - TOWING - ENGLISH
    DECAL, WARNING - TOWING - ENGLISH
  • 36
    5611-852 DECAL, WARNING - TOWING - FRENCH
    DECAL, WARNING - TOWING - FRENCH
  • 37
    8061-708 RIVET
    RIVET
  • 38
    1623-343 PLUG, HOLE
    PLUG, HOLE
  • 39
    5606-988 PLUG, HOLE
    PLUG, HOLE
  • 40
    4706-882 BUMPER, REAR - GREEN
    BUMPER, REAR - GREEN
  • 41
    8611-676 DECAL, REFLECTOR - RIGHT - RED
    DECAL, REFLECTOR - RIGHT - RED
  • 41
    8611-677 DECAL, REFLECTOR - LEFT - RED
    DECAL, REFLECTOR - LEFT - RED
  • 42
    9611-034 DECAL, TUNNEL - REAR - RIGHT
    DECAL, TUNNEL - REAR - RIGHT
  • 42
    9611-035 DECAL, TUNNEL - REAR - LEFT
    DECAL, TUNNEL - REAR - LEFT
  • 43
    9611-030 DECAL, TUNNEL - FORWARD - RIGHT
    DECAL, TUNNEL - FORWARD - RIGHT
  • 43
    9611-031 DECAL, TUNNEL - FORWARD - LEFT
    DECAL, TUNNEL - FORWARD - LEFT
  • 44
    7611-150 DECAL, "APV"
    DECAL, "APV"
  • 45
    8611-994 DECAL, "V-FORCE"
    DECAL, "V-FORCE"
