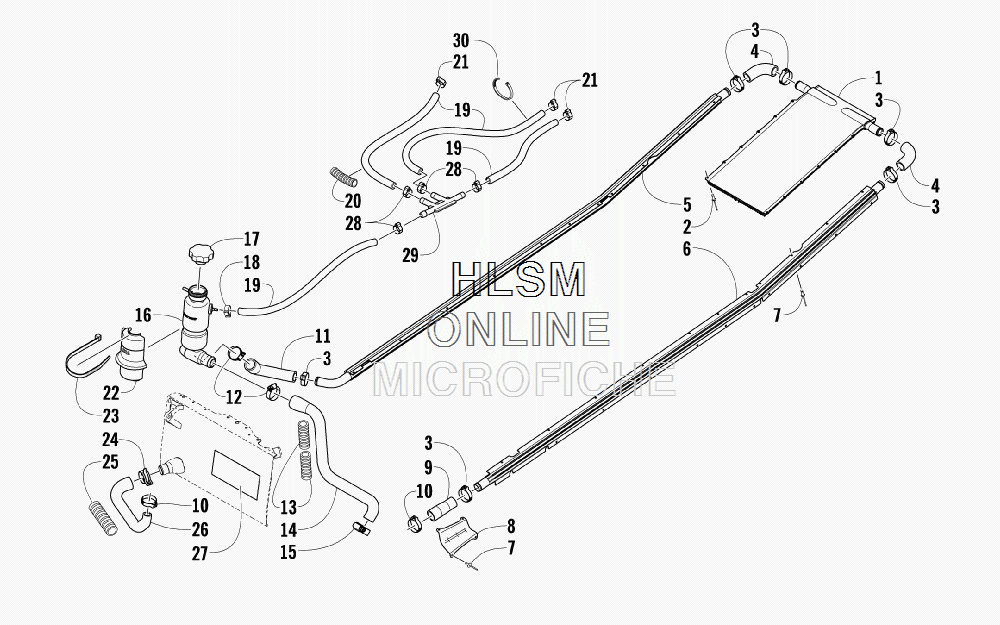

COOLING ASSEMBLY для Arctic Cat CROSSFIRE R 1000 EFI LE [S2009CFLEXUSB] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    4706-179 HEAT EXCHANGER - REAR
    HEAT EXCHANGER - REAR
  • 2
    8060-686 RIVET
    RIVET
  • 3
    1623-349 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    0610-567 HOSE, COOLANT
    HOSE, COOLANT
  • 5
    5606-584 HEAT EXCHANGER - RIGHT
    HEAT EXCHANGER - RIGHT
  • 6
    5606-585 HEAT EXCHANGER - LEFT
    HEAT EXCHANGER - LEFT
  • 7
    8060-484 RIVET
    RIVET
  • 7
    8060-488 RIVET
    RIVET
  • 8
    4606-270 PROTECTOR, HOSE
    PROTECTOR, HOSE
  • 9
    0610-679 HOSE, COOLANT - FRONT/LEFT HEAT EXCHANGER
    HOSE, COOLANT - FRONT/LEFT HEAT EXCHANGER
  • 10
    1623-656 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    0610-659 HOSE, COOLANT - TANK/RIGHT HEAT EXCHANGER
    HOSE, COOLANT - TANK/RIGHT HEAT EXCHANGER
  • 12
    1623-093 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    1619-109 PROTECTOR, HOSE - 7 IN.
    PROTECTOR, HOSE - 7 IN.
  • 14
    0610-681 HOSE, COOLANT TANK/ENGINE
    HOSE, COOLANT TANK/ENGINE
  • 15
    1623-230 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    3706-684 TANK, COOLANT
    TANK, COOLANT
  • 17
    4606-209 CAP
    CAP
  • 18
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    0610-538 HOSE, COOLANT - 25 FT
    HOSE, COOLANT - 25 FT
  • 20
    0716-558 CONDUIT, FLEXIBLE - 10 FT
    CONDUIT, FLEXIBLE - 10 FT
  • 21
    1623-619 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    5606-040 SHIELD, HEAT
    SHIELD, HEAT
  • 23
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 24
    1623-322 CLAMP, HOSE
    CLAMP, HOSE
  • 25
    0619-619 CONDUIT, FLEXIBLE - 4 IN.
    CONDUIT, FLEXIBLE - 4 IN.
  • 26
    0610-680 HOSE, COOLANT - ENGINE/FRONT HEAT EXCHANGER
    HOSE, COOLANT - ENGINE/FRONT HEAT EXCHANGER
  • 27
    4606-962 PAD, HEAT EXCHANGER - FRONT
    PAD, HEAT EXCHANGER - FRONT
  • 28
    1623-655 CLAMP, HOSE
    CLAMP, HOSE
  • 29
    0610-717 FITTING, DOUBLE-T
    FITTING, DOUBLE-T
  • 30
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
