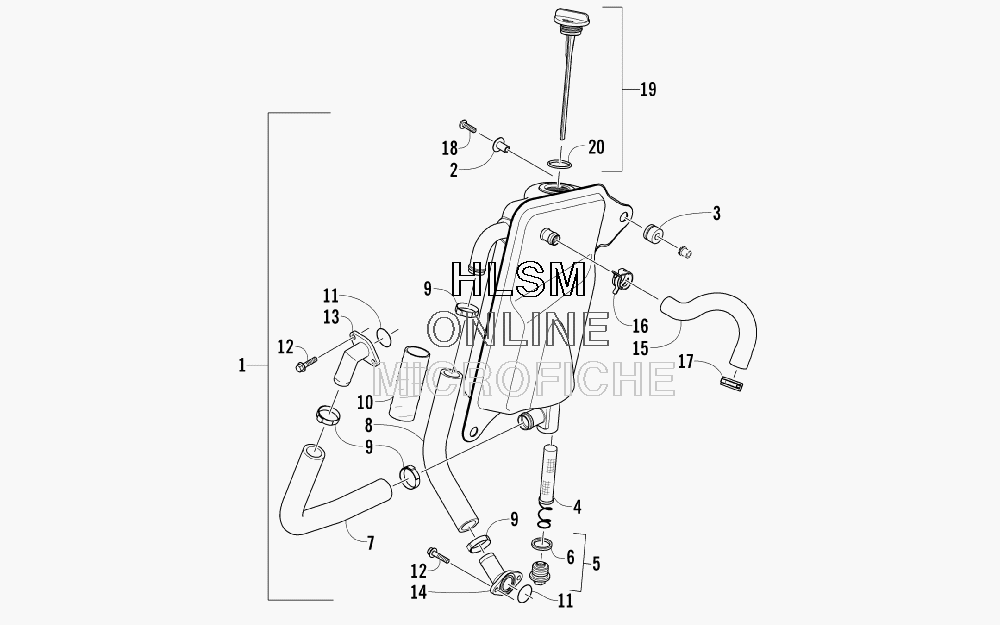

OIL TANK ASSEMBLY для Arctic Cat AC TZ1 TURBO LXR - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-837 TANK, OIL - ASSEMBLY (INC. 2-8 AND TWO NO. 9)
    TANK, OIL - ASSEMBLY (INC. 2-8 AND TWO NO. 9)
  • 2
    1623-573 ...BUSHING, FLANGED
    ...BUSHING, FLANGED
  • 3
    1670-729 ...GROMMET
    ...GROMMET
  • 4
    1670-983 ...SCREEN, OIL TANK
    ...SCREEN, OIL TANK
  • 5
    1670-914 ...PLUG, DRAIN (INC. 6)
    ...PLUG, DRAIN (INC. 6)
  • 6
    1670-926 ......O-RING
    ......O-RING
  • 7
    0610-641 ...HOSE, OIL - FEED
    ...HOSE, OIL - FEED
  • 8
    0610-642 ...HOSE, OIL - RETURN
    ...HOSE, OIL - RETURN
  • 9
    1623-515 ...CLAMP, HOSE
    ...CLAMP, HOSE
  • 10
    0610-790 CONDUIT - 5 FT
    CONDUIT - 5 FT
  • 11
    0648-441 O-RING
    O-RING
  • 12
    8408-616 SCREW, CAP
    SCREW, CAP
  • 13
    1670-727 FITTING, OIL SUPPLY - ENGINE
    FITTING, OIL SUPPLY - ENGINE
  • 14
    1670-726 FITTING, OIL RETURN - ENGINE
    FITTING, OIL RETURN - ENGINE
  • 15
    0610-664 HOSE, BREATHER - OIL TANK
    HOSE, BREATHER - OIL TANK
  • 16
    1623-288 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    1623-289 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    8476-630 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    1670-872 CAP, OIL TANK (INC. 20)
    CAP, OIL TANK (INC. 20)
  • 20
    1670-823 ...SEAL
    ...SEAL
