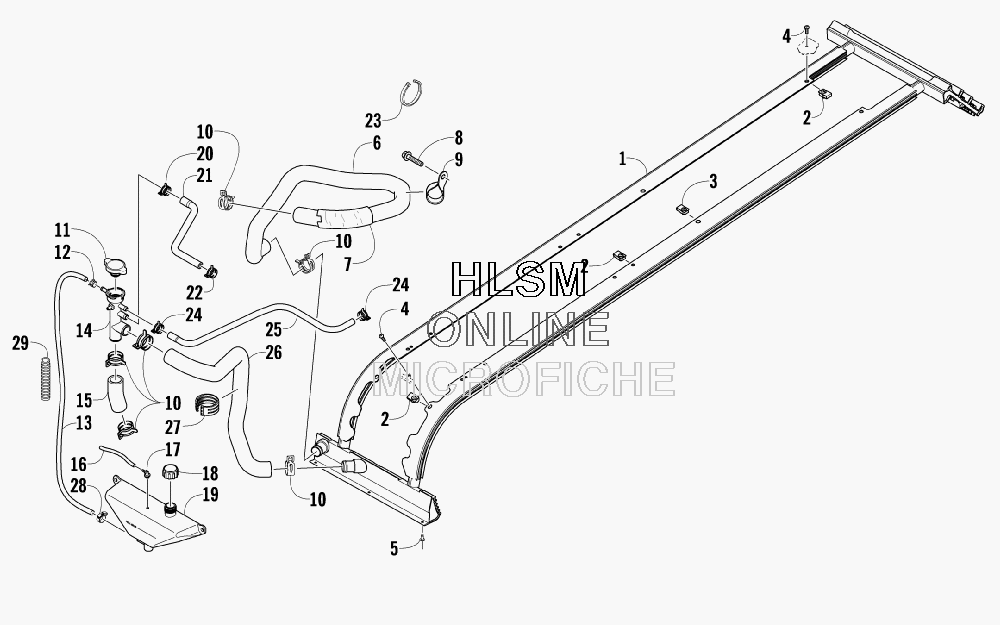

COOLING ASSEMBLY для Arctic Cat AC TZ1 TURBO LXR - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    4706-278 EXCHANGER, HEAT
    EXCHANGER, HEAT
  • 2
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 3
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 4
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 5
    8060-686 RIVET
    RIVET
  • 6
    0610-638 HOSE, COOLANT - ENGINE/HEAT EXCHANGER
    HOSE, COOLANT - ENGINE/HEAT EXCHANGER
  • 7
    0610-790 CONDUIT - 5 FT
    CONDUIT - 5 FT
  • 8
    8408-020 SCREW, CAP
    SCREW, CAP
  • 9
    4606-388 BRACKET, COOLANT HOSE
    BRACKET, COOLANT HOSE
  • 10
    0623-736 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    2606-284 CAP
    CAP
  • 12
    1623-351 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    0610-692 HOSE - GREEN - 25 FT
    HOSE - GREEN - 25 FT
  • 13
    0610-693 HOSE - GREEN - 100 FT
    HOSE - GREEN - 100 FT
  • 14
    2670-013 NECK, FILLER
    NECK, FILLER
  • 15
    0610-753 HOSE, COOLANT - COOLANT TANK/ENGINE
    HOSE, COOLANT - COOLANT TANK/ENGINE
  • 16
    0610-010 HOSE, COOLANT - 25 FT
    HOSE, COOLANT - 25 FT
  • 17
    0670-242 FITTING, VENT
    FITTING, VENT
  • 18
    0670-035 CAP, COOLANT TANK
    CAP, COOLANT TANK
  • 19
    1670-997 TANK, COOLANT
    TANK, COOLANT
  • 20
    1623-281 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    0610-786 HOSE, COOLANT - FILLER NECK/TURBOCHARGER
    HOSE, COOLANT - FILLER NECK/TURBOCHARGER
  • 22
    1623-280 CLAMP, HOSE
    CLAMP, HOSE
  • 23
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 24
    1623-278 CLAMP, HOSE
    CLAMP, HOSE
  • 25
    0610-732 HOSE, COOLANT - BYPASS
    HOSE, COOLANT - BYPASS
  • 26
    0610-778 HOSE, COOLANT - HEAT EXCHANGER
    HOSE, COOLANT - HEAT EXCHANGER
  • 27
    0623-540 TIE, CABLE - TRIPLE
    TIE, CABLE - TRIPLE
  • 28
    0623-063 CLAMP, HOSE
    CLAMP, HOSE
  • 29
    1619-306 CONDUIT, HIGH TEMPERATURE
    CONDUIT, HIGH TEMPERATURE
