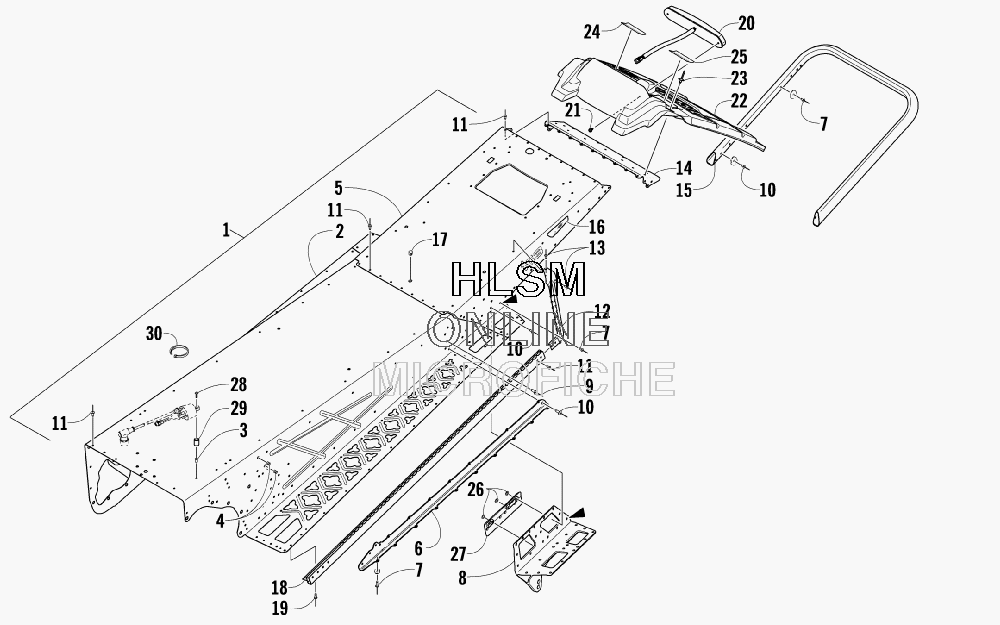

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY для Arctic Cat AC M6 - 2009 года выпуска`
-
№АртикулНазвание
-
-1707-306 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
12718-733 TUNNEL ASSEMBLY (INC. 2-11)TUNNEL ASSEMBLY (INC. 2-11)
-
22718-723 ...TUNNEL, FRONT (INC. 3-4)...TUNNEL, FRONT (INC. 3-4)
-
31623-562 ......INSERT......INSERT
-
41623-657 ......INSERT......INSERT
-
55606-499 ...TUNNEL, REAR...TUNNEL, REAR
-
65606-402 ...BRACKET, TUNNEL SUPPORT - RIGHT...BRACKET, TUNNEL SUPPORT - RIGHT
-
65606-403 ...BRACKET, TUNNEL SUPPORT - LEFT...BRACKET, TUNNEL SUPPORT - LEFT
-
78060-686 ...RIVET...RIVET
-
82706-456 ...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR
-
82706-457 ...BRACKET, SUSPENSION MOUNTING - LEFT - REAR...BRACKET, SUSPENSION MOUNTING - LEFT - REAR
-
98060-682 ...RIVET...RIVET
-
108060-688 ...RIVET...RIVET
-
118060-484 ...RIVET...RIVET
-
125606-594 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
125606-595 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
138060-488 RIVETRIVET
-
145606-253 END CAP, TUNNELEND CAP, TUNNEL
-
155606-477 BUMPER, REARBUMPER, REAR
-
168611-520 DECAL, REFLECTOR - RED - RIGHTDECAL, REFLECTOR - RED - RIGHT
-
168611-521 DECAL, REFLECTOR - RED - LEFTDECAL, REFLECTOR - RED - LEFT
-
170623-562 PLUG, HOLEPLUG, HOLE
-
185606-490 ROLL, TUNNEL - RIGHTROLL, TUNNEL - RIGHT
-
185606-491 ROLL, TUNNEL - LEFTROLL, TUNNEL - LEFT
-
198060-482 RIVET, BLIND-DH SS53 ZINCRIVET, BLIND-DH SS53 ZINC
-
200609-855 TAILLIGHT, LEDTAILLIGHT, LED
-
210623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
225606-525 SNOWFLAPSNOWFLAP
-
238061-710 RIVETRIVET
-
245611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
255611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
260123-802 WASHERWASHER
-
274606-790 GUIDE, TRACK - TUNNEL - RIGHTGUIDE, TRACK - TUNNEL - RIGHT
-
274606-791 GUIDE, TRACK - TUNNEL - LEFTGUIDE, TRACK - TUNNEL - LEFT
-
281623-671 SCREW, MACHINESCREW, MACHINE
-
291623-045 SPACERSPACER
-
300123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
