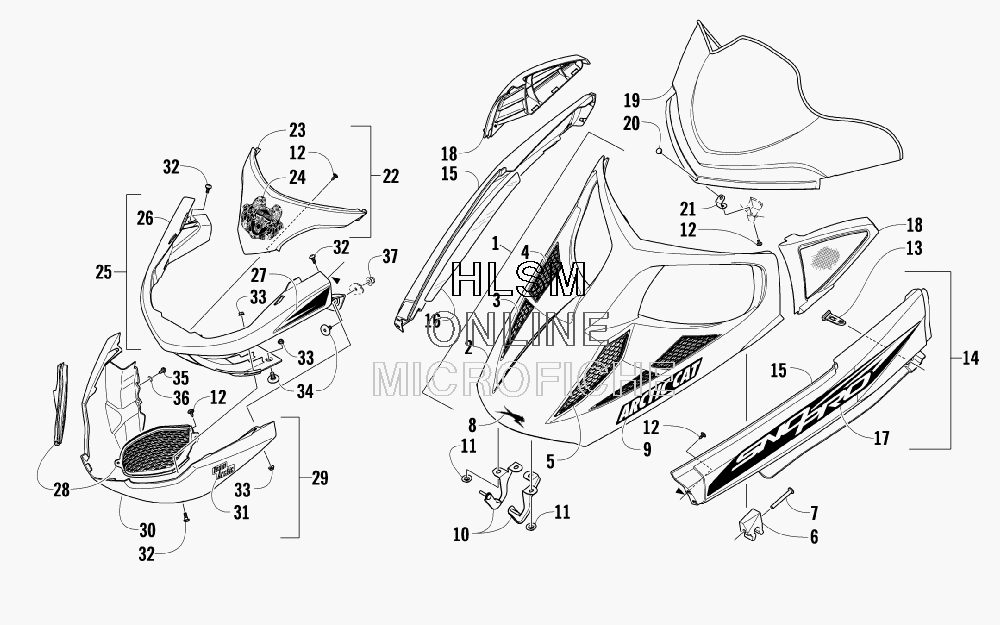

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat AC F1000 EFI SNO PRO - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2718-574 HOOD W/DECALS - BLACK (INC. 2-9) GREEN
    HOOD W/DECALS - BLACK (INC. 2-9) GREEN
  • 1
    2718-575 HOOD W/DECALS - BLACK (INC. 2-9) (ORANGE)
    HOOD W/DECALS - BLACK (INC. 2-9) (ORANGE)
  • 2
    7800-110 ...HOOD W/O DECALS - BLACK (INC. 3-7) GREEN
    ...HOOD W/O DECALS - BLACK (INC. 3-7) GREEN
  • 2
    7800-111 ...HOOD W/O DECALS - BLACK (INC. 3-7) (ORANGE)
    ...HOOD W/O DECALS - BLACK (INC. 3-7) (ORANGE)
  • 3
    4606-636 ......VENT, HOOD - OUTER FRONT - RIGHT - GREEN
    ......VENT, HOOD - OUTER FRONT - RIGHT - GREEN
  • 3
    4606-637 ......VENT, HOOD - OUTER FRONT - LEFT - GREEN
    ......VENT, HOOD - OUTER FRONT - LEFT - GREEN
  • 3
    4606-638 ......VENT, HOOD - OUTER FRONT - RIGHT - ORANGE
    ......VENT, HOOD - OUTER FRONT - RIGHT - ORANGE
  • 3
    4606-639 ......VENT, HOOD - OUTER FRONT - LEFT - ORANGE
    ......VENT, HOOD - OUTER FRONT - LEFT - ORANGE
  • 4
    4606-646 ......VENT, HOOD - OUTER REAR - RIGHT - GREEN
    ......VENT, HOOD - OUTER REAR - RIGHT - GREEN
  • 4
    4606-647 ......VENT, HOOD - OUTER REAR - LEFT - GREEN
    ......VENT, HOOD - OUTER REAR - LEFT - GREEN
  • 4
    4606-648 ......VENT, HOOD - OUTER REAR - RIGHT - ORANGE
    ......VENT, HOOD - OUTER REAR - RIGHT - ORANGE
  • 4
    4606-649 ......VENT, HOOD - OUTER REAR - LEFT - ORANGE
    ......VENT, HOOD - OUTER REAR - LEFT - ORANGE
  • 5
    4606-620 ......VENT, HOOD - INNER - RIGHT - GREEN
    ......VENT, HOOD - INNER - RIGHT - GREEN
  • 5
    4606-621 ......VENT, HOOD - INNER - LEFT - GREEN
    ......VENT, HOOD - INNER - LEFT - GREEN
  • 5
    4606-622 ......VENT, HOOD - INNER - RIGHT - ORANGE
    ......VENT, HOOD - INNER - RIGHT - ORANGE
  • 5
    4606-623 ......VENT, HOOD - INNER - LEFT - ORANGE
    ......VENT, HOOD - INNER - LEFT - ORANGE
  • 6
    1623-614 ......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT
    ......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT
  • 6
    1623-615 ......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT
    ......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT
  • 7
    1623-610 ......PIN, RETAINING
    ......PIN, RETAINING
  • 8
    8611-267 ...DECAL, AIRCAT - CHROME
    ...DECAL, AIRCAT - CHROME
  • 9
    8611-454 ...DECAL, HOOD - "ARCTIC CAT"
    ...DECAL, HOOD - "ARCTIC CAT"
  • 9
    8611-455 ...DECAL, HOOD - "ARCTIC CAT" (ORANGE)
    ...DECAL, HOOD - "ARCTIC CAT" (ORANGE)
  • 10
    3706-348 BRACKET, HINGE - RIGHT
    BRACKET, HINGE - RIGHT
  • 10
    3706-347 BRACKET, HINGE - LEFT
    BRACKET, HINGE - LEFT
  • 11
    1623-469 NUT, STAMPED
    NUT, STAMPED
  • 12
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 13
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 14
    2718-556 SPAR, FRONT W/DECALS - RIGHT (INC. 15-17) GREEN
    SPAR, FRONT W/DECALS - RIGHT (INC. 15-17) GREEN
  • 14
    2718-557 SPAR, FRONT W/DECALS - LEFT (INC. 15 AND 17) GREEN
    SPAR, FRONT W/DECALS - LEFT (INC. 15 AND 17) GREEN
  • 14
    2718-558 SPAR, FRONT W/DECALS - RIGHT (INC. 15-17) (ORANGE)
    SPAR, FRONT W/DECALS - RIGHT (INC. 15-17) (ORANGE)
  • 14
    2718-559 SPAR, FRONT W/DECALS - LEFT (INC. 15 AND 17) (ORANGE)
    SPAR, FRONT W/DECALS - LEFT (INC. 15 AND 17) (ORANGE)
  • 15
    4606-884 ...SPAR, FRONT W/O DECALS - RIGHT - BLACK
    ...SPAR, FRONT W/O DECALS - RIGHT - BLACK
  • 15
    4606-885 ...SPAR, FRONT W/O DECALS - LEFT - BLACK
    ...SPAR, FRONT W/O DECALS - LEFT - BLACK
  • 16
    4606-934 ...FOIL, SPAR - RIGHT
    ...FOIL, SPAR - RIGHT
  • 17
    8611-448 ...DECAL, FRONT SPAR - RIGHT GREEN
    ...DECAL, FRONT SPAR - RIGHT GREEN
  • 17
    8611-449 ...DECAL, FRONT SPAR - LEFT GREEN
    ...DECAL, FRONT SPAR - LEFT GREEN
  • 17
    8611-466 ...DECAL, FRONT SPAR - RIGHT (ORANGE)
    ...DECAL, FRONT SPAR - RIGHT (ORANGE)
  • 17
    8611-467 ...DECAL, FRONT SPAR - LEFT (ORANGE)
    ...DECAL, FRONT SPAR - LEFT (ORANGE)
  • 18
    5606-924 BEZEL, INTAKE - RIGHT - BLACK
    BEZEL, INTAKE - RIGHT - BLACK
  • 18
    5606-925 BEZEL, INTAKE - LEFT - BLACK
    BEZEL, INTAKE - LEFT - BLACK
  • 19
    5606-960 WINDSHIELD
    WINDSHIELD
  • 20
    1623-677 RIVET, PLASTIC
    RIVET, PLASTIC
  • 21
    4606-961 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 22
    2718-546 FACIA, BUMPER - UPPER W/DECALS - BLACK (INC. 23-24)
    FACIA, BUMPER - UPPER W/DECALS - BLACK (INC. 23-24)
  • 23
    4606-518 ...FASCIA, BUMPER - UPPER - BLACK
    ...FASCIA, BUMPER - UPPER - BLACK
  • 24
    8611-437 ...DECAL, FRONT BUMPER - CREST
    ...DECAL, FRONT BUMPER - CREST
  • 25
    2718-541 BUMPER, FRONT W/DECALS - WHITE (INC. 26-27) GREEN
    BUMPER, FRONT W/DECALS - WHITE (INC. 26-27) GREEN
  • 25
    2718-542 BUMPER, FRONT W/DECALS - WHITE (INC. 26-27) (ORANGE)
    BUMPER, FRONT W/DECALS - WHITE (INC. 26-27) (ORANGE)
  • 26
    5606-034 ...BUMPER, FRONT
    ...BUMPER, FRONT
  • 27
    8611-452 ...DECAL, FRONT BUMPER - RIGHT GREEN
    ...DECAL, FRONT BUMPER - RIGHT GREEN
  • 27
    8611-453 ...DECAL, FRONT BUMPER - LEFT GREEN
    ...DECAL, FRONT BUMPER - LEFT GREEN
  • 27
    8611-468 ...DECAL, FRONT BUMPER - RIGHT (ORANGE)
    ...DECAL, FRONT BUMPER - RIGHT (ORANGE)
  • 27
    8611-469 ...DECAL, FRONT BUMPER - LEFT (ORANGE)
    ...DECAL, FRONT BUMPER - LEFT (ORANGE)
  • 28
    4606-604 VENT, BUMPER - RIGHT - BLACK
    VENT, BUMPER - RIGHT - BLACK
  • 28
    4606-605 VENT, BUMPER - LEFT - BLACK
    VENT, BUMPER - LEFT - BLACK
  • 29
    2718-545 FASCIA, BUMPER - LOWER W/DECALS (INC. 30-31)
    FASCIA, BUMPER - LOWER W/DECALS (INC. 30-31)
  • 30
    5606-467 ...FASCIA, BUMPER - LOWER W/O DECALS - WHITE
    ...FASCIA, BUMPER - LOWER W/O DECALS - WHITE
  • 31
    8611-450 ...DECAL, FASCIA - LOWER
    ...DECAL, FASCIA - LOWER
  • 32
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 33
    8427-602 NUT, LOCK
    NUT, LOCK
  • 34
    1623-775 SCREW, SHOULDER
    SCREW, SHOULDER
  • 35
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 36
    8053-242 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 37
    8424-602 NUT
    NUT
