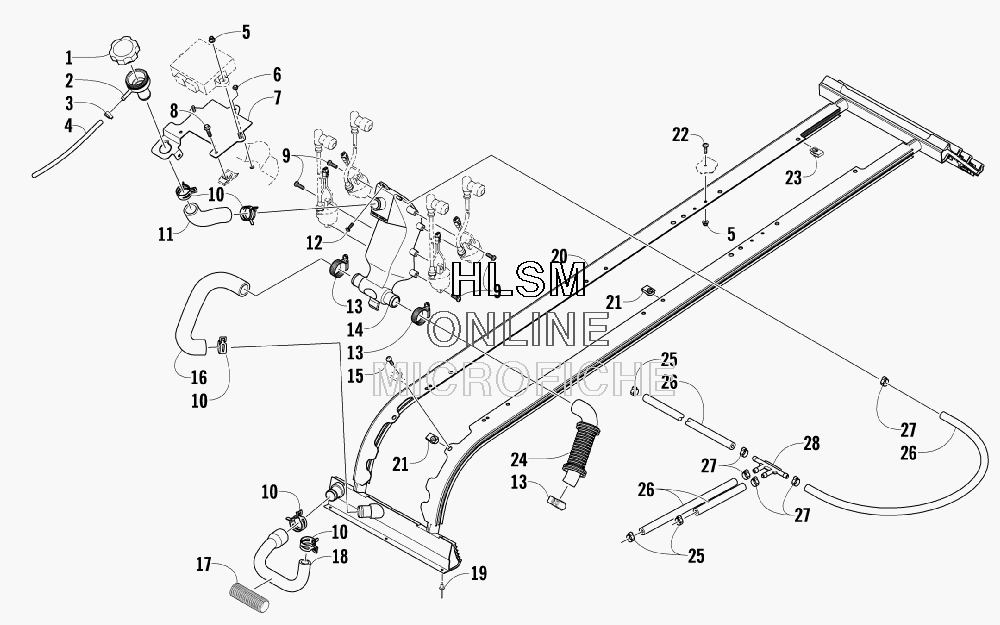

COOLING ASSEMBLY для Arctic Cat AC F1000 EFI SNO PRO - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    4606-209 CAP
    CAP
  • 2
    1670-848 NECK, FILLER
    NECK, FILLER
  • 3
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    0610-692 HOSE - GREEN - 25 FT
    HOSE - GREEN - 25 FT
  • 4
    0610-693 HOSE - GREEN - 100 FT
    HOSE - GREEN - 100 FT
  • 5
    8427-602 NUT, LOCK
    NUT, LOCK
  • 6
    1623-760 SCREW, CAP
    SCREW, CAP
  • 7
    4706-244 BRACKET, FILLER NECK
    BRACKET, FILLER NECK
  • 8
    8408-620 SCREW, MACH-TSTRH M6X1.0X20 Z & Y
    SCREW, MACH-TSTRH M6X1.0X20 Z & Y
  • 9
    1623-678 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 10
    0623-736 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    0610-750 HOSE, COOLANT - FILLER NECK/COOLANT TANK
    HOSE, COOLANT - FILLER NECK/COOLANT TANK
  • 12
    8470-510 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    1623-092 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    1670-885 TANK, COOLANT
    TANK, COOLANT
  • 15
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0610-696 HOSE, COOLANT - HEAT EXCHANGER/COOLANT TANK
    HOSE, COOLANT - HEAT EXCHANGER/COOLANT TANK
  • 17
    0619-619 CONDUIT, FLEXIBLE - 4 IN.
    CONDUIT, FLEXIBLE - 4 IN.
  • 18
    0610-672 HOSE, COOLANT - ENGINE/HEAT EXCHANGER
    HOSE, COOLANT - ENGINE/HEAT EXCHANGER
  • 19
    8060-686 RIVET
    RIVET
  • 20
    4706-298 EXCHANGER, HEAT (INC. 21)
    EXCHANGER, HEAT (INC. 21)
  • 21
    1623-637 ...CLIP, U-NUT
    ...CLIP, U-NUT
  • 22
    8470-620 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 24
    0610-697 HOSE, COOLANT - ENGINE/COOLANT TANK
    HOSE, COOLANT - ENGINE/COOLANT TANK
  • 25
    1623-619 CLAMP, HOSE
    CLAMP, HOSE
  • 26
    0610-538 HOSE, VENT - 25 FT
    HOSE, VENT - 25 FT
  • 27
    1623-655 CLAMP, HOSE
    CLAMP, HOSE
  • 28
    0610-717 FITTING, DOUBLE-T
    FITTING, DOUBLE-T
