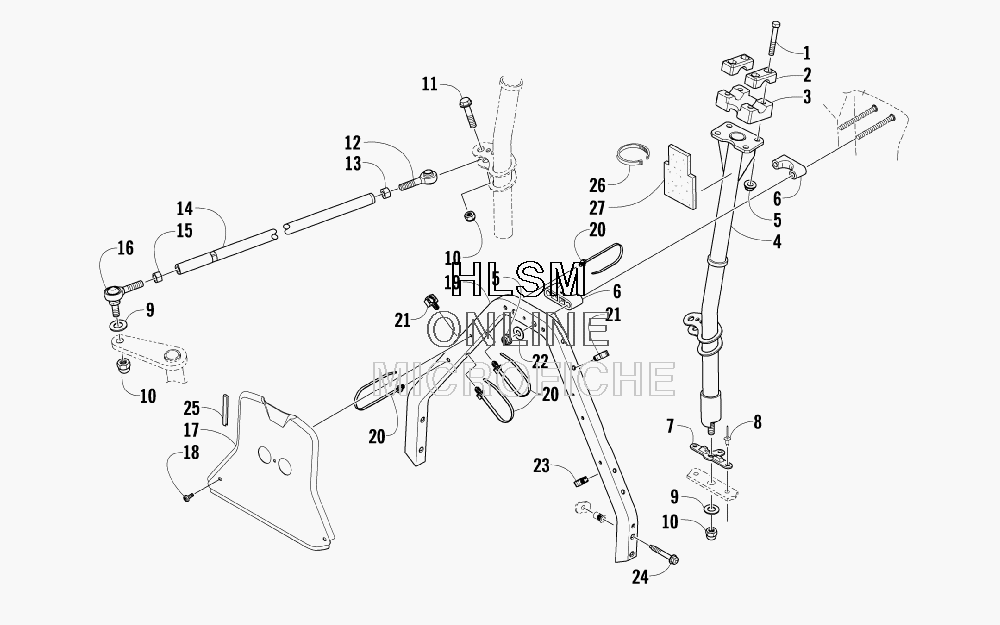

STEERING POST ASSEMBLY для Arctic Cat AC CROSSFIRE 800 EFI - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    8002-138 SCREW, CAP
    SCREW, CAP
  • 2
    0605-506 CAP, ADJUSTING BLOCK
    CAP, ADJUSTING BLOCK
  • 3
    0605-507 BLOCK, ADJUSTING
    BLOCK, ADJUSTING
  • 4
    1705-253 POST, STEERING
    POST, STEERING
  • 5
    8047-426 NUT, LOCK
    NUT, LOCK
  • 6
    0605-576 BLOCK, MOUNTING - STEERING POST
    BLOCK, MOUNTING - STEERING POST
  • 7
    0605-943 STOP, STEERING POST
    STOP, STEERING POST
  • 8
    8060-888 RIVET
    RIVET
  • 9
    0623-044 WASHER
    WASHER
  • 10
    0623-025 NUT, LOCK
    NUT, LOCK
  • 11
    8004-225 SCREW, CAP
    SCREW, CAP
  • 12
    0605-504 BALL JOINT, TIE ROD - RIGHT-HAND THREAD
    BALL JOINT, TIE ROD - RIGHT-HAND THREAD
  • 13
    0623-294 NUT, HEX - RIGHT-HAND THREAD
    NUT, HEX - RIGHT-HAND THREAD
  • 14
    0605-856 TUBE, TIE ROD
    TUBE, TIE ROD
  • 15
    0123-917 NUT, HEX - LEFT-HAND THREAD
    NUT, HEX - LEFT-HAND THREAD
  • 16
    0605-511 BALL JOINT, TIE ROD - LEFT-HAND THREAD
    BALL JOINT, TIE ROD - LEFT-HAND THREAD
  • 17
    5606-501 PANEL, CLOSE-OUT
    PANEL, CLOSE-OUT
  • 18
    1623-353 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 19
    1705-260 SUPPORT, STEERING
    SUPPORT, STEERING
  • 20
    0623-677 TIE, CABLE - PUSH-MOUNT
    TIE, CABLE - PUSH-MOUNT
  • 21
    1623-406 CLIP, RETAINING
    CLIP, RETAINING
  • 22
    8050-252 WASHER
    WASHER
  • 23
    1623-717 CLIP, RETAINING
    CLIP, RETAINING
  • 24
    1623-482 SCREW, CAP
    SCREW, CAP
  • 25
    0706-371 TRIM
    TRIM
  • 26
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 27
    0617-538 FOAM, STEERING POST
    FOAM, STEERING POST
