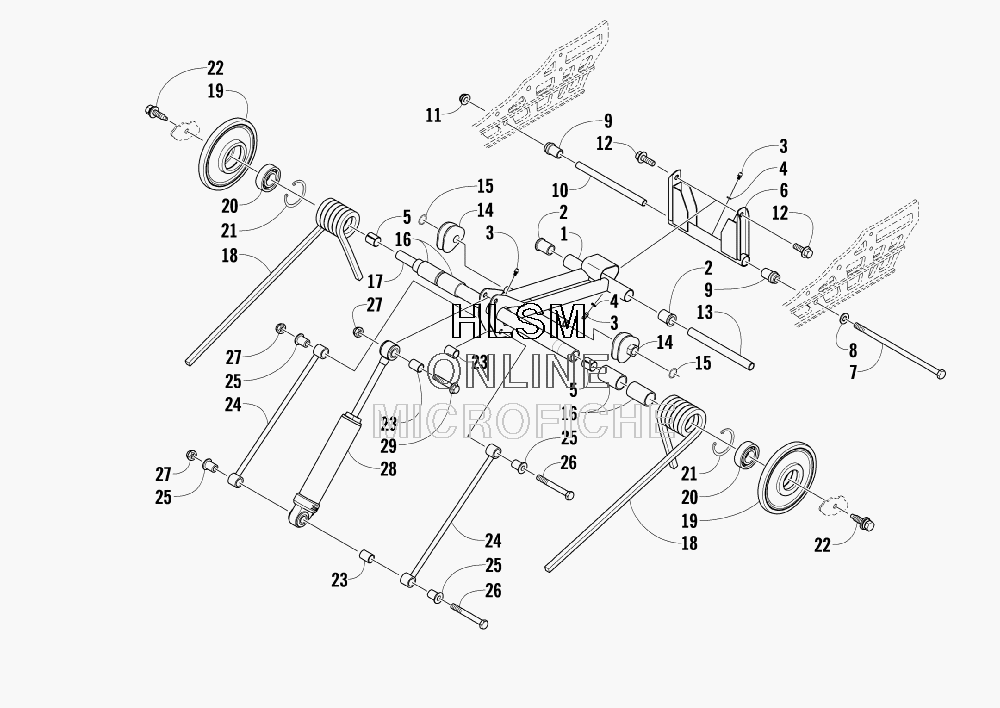

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat AC CROSSFIRE 800 EFI - 2009 года выпуска`
-
№АртикулНазвание
-
11704-793 ARM, IDLER - BLACK (INC. 2, ONE NO. 3-4, AND 5)ARM, IDLER - BLACK (INC. 2, ONE NO. 3-4, AND 5)
-
23604-028 ...BUSHING, FLARED...BUSHING, FLARED
-
31623-010 ...FITTING, GREASE...FITTING, GREASE
-
41623-011 ...WASHER...WASHER
-
52604-147 ...BEARING...BEARING
-
61704-019 ARM, REAR - BLACK (INC. ONE NO. 3-4)ARM, REAR - BLACK (INC. ONE NO. 3-4)
-
71623-037 SCREW, CAPSCREW, CAP
-
80623-439 WASHERWASHER
-
92604-664 BUSHING, REAR ARMBUSHING, REAR ARM
-
102604-663 AXLE, INNERAXLE, INNER
-
118047-490 NUT, LOCKNUT, LOCK
-
121623-503 SCREW, CAPSCREW, CAP
-
132604-176 AXLEAXLE
-
141604-204 BLOCK, SPRING ADJUSTER - RIGHTBLOCK, SPRING ADJUSTER - RIGHT
-
141604-205 BLOCK, SPRING ADJUSTER - LEFTBLOCK, SPRING ADJUSTER - LEFT
-
150623-138 RING, RETAININGRING, RETAINING
-
162604-764 SLEEVE, SPRINGSLEEVE, SPRING
-
173604-085 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
181704-808 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
181704-809 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
191604-690 WHEEL, IDLER (INC. 20-21)WHEEL, IDLER (INC. 20-21)
-
200107-598 ...BEARING...BEARING
-
210123-798 ...RING, RETAINING...RING, RETAINING
-
221623-166 SCREW, CAPSCREW, CAP
-
231604-139 SLEEVE, SHOCKSLEEVE, SHOCK
-
240704-350 LINK, REAR SHOCK - BLACKLINK, REAR SHOCK - BLACK
-
251604-498 AXLE, LINK - FLANGEDAXLE, LINK - FLANGED
-
268020-233 SCREW, CAPSCREW, CAP
-
278041-486 NUT, LOCKNUT, LOCK
-
281704-812 SHOCK ABSORBERSHOCK ABSORBER
-
298020-226 SCREW, CAPSCREW, CAP
