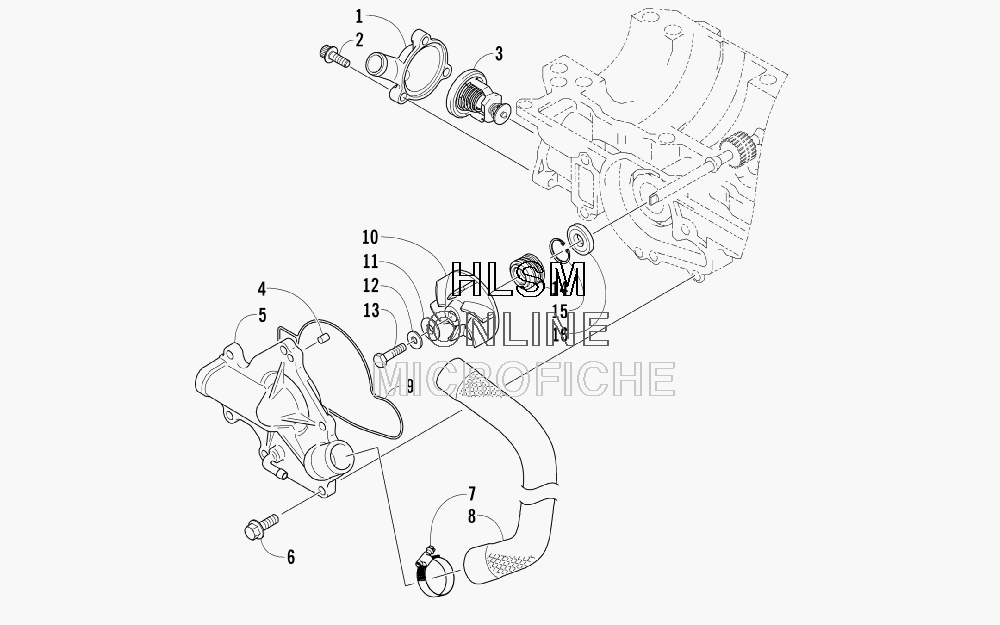

WATER PUMP/WATER MANIFOLD для Arctic Cat AC CROSSFIRE 500 - 2009 года выпуска`
-
№АртикулНазвание
-
13006-914 CAP, THERMOSTATCAP, THERMOSTAT
-
23007-446 SCREW, CAPSCREW, CAP
-
33007-041 THERMOSTATTHERMOSTAT
-
43005-899 PIN, DOWELPIN, DOWEL
-
53006-942 COVER, WATER PUMPCOVER, WATER PUMP
-
63007-409 SCREW, CAPSCREW, CAP
-
73006-324 CLAMP, HOSECLAMP, HOSE
-
83006-360 HOSE, WATER INLETHOSE, WATER INLET
-
93006-356 O-RING, COVERO-RING, COVER
-
103005-697 IMPELLERIMPELLER
-
113003-431 WASHERWASHER
-
123003-432 GASKETGASKET
-
133003-426 SCREW, CAPSCREW, CAP
-
143007-180 SEAL, WATER PUMPSEAL, WATER PUMP
-
153004-009 RING, RETAININGRING, RETAINING
-
163007-431 SEAL, OILSEAL, OIL
