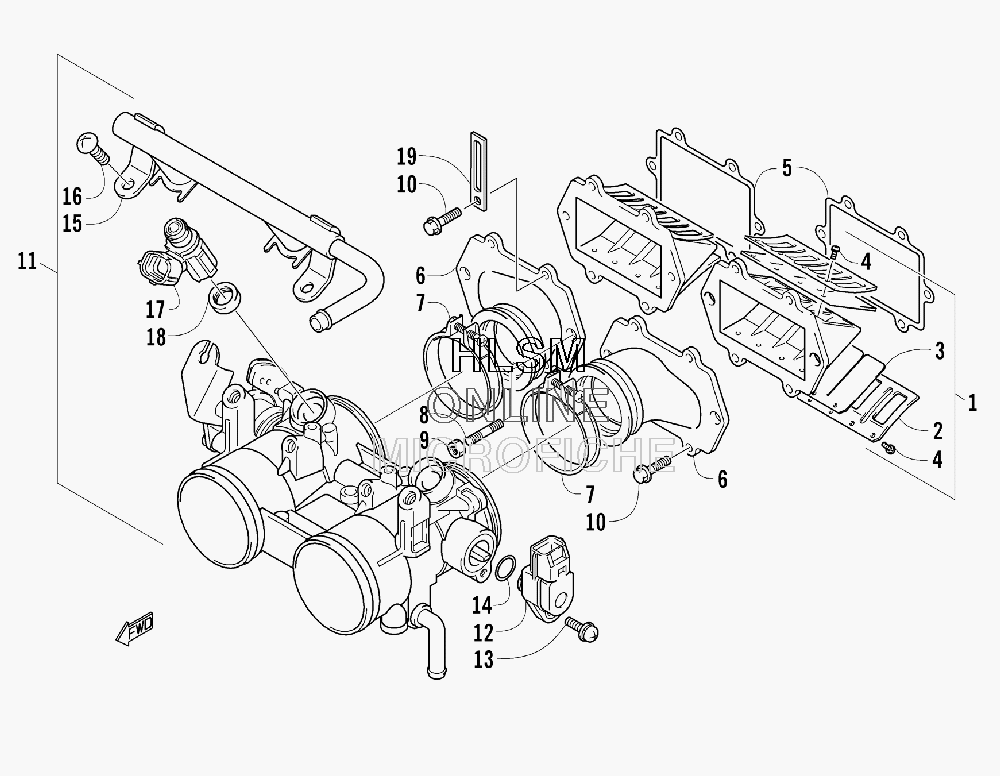

REED VALVE/THROTTLE BODY ASSEMBLY для Arctic Cat AC CROSSFIRE 500 - 2009 года выпуска`
-
№АртикулНазвание
-
13005-876 VALVE, REED - ASSEMBLY (INC. 2-4)VALVE, REED - ASSEMBLY (INC. 2-4)
-
23005-877 ...STOPPER...STOPPER
-
33005-878 ...VALVE, REED...VALVE, REED
-
43004-506 ...SCREW, MACHINE...SCREW, MACHINE
-
53005-879 GASKET, REED VALVEGASKET, REED VALVE
-
63007-462 PIPE, INTAKE - RHPIPE, INTAKE - RH
-
63007-463 PIPE, INTAKE - LHPIPE, INTAKE - LH
-
73007-464 CLAMPCLAMP
-
83007-465 BOLT, STUDBOLT, STUD
-
93007-373 NUTNUT
-
103007-409 SCREW, CAPSCREW, CAP
-
113007-466 BODY, THROTTLE - ASSEMBLY (INC. 12-18)BODY, THROTTLE - ASSEMBLY (INC. 12-18)
-
123007-467 ...SENSOR, THROTTLE - ASSEMBLY...SENSOR, THROTTLE - ASSEMBLY
-
133006-652 ...SCREW, MACHINE...SCREW, MACHINE
-
143007-468 ...O-RING...O-RING
-
153007-469 ...PIPE, DELIVERY...PIPE, DELIVERY
-
163423-814 ...SCREW, MACHINE...SCREW, MACHINE
-
173007-051 ...INJECTOR, FUEL - ASSEMBLY L...INJECTOR, FUEL - ASSEMBLY L
-
173007-052 ...INJECTOR, FUEL - ASSEMBLY N...INJECTOR, FUEL - ASSEMBLY N
-
173007-053 ...INJECTOR, FUEL - ASSEMBLY S...INJECTOR, FUEL - ASSEMBLY S
-
183403-121 ...CUSHION, INJECTOR...CUSHION, INJECTOR
-
193002-964 CLAMP, WIRECLAMP, WIRE
