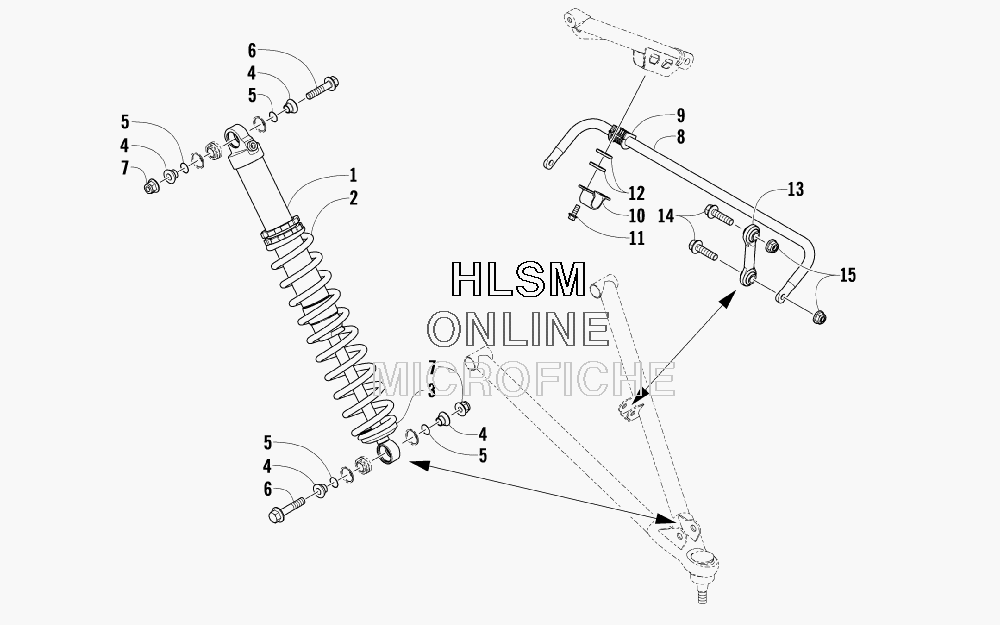

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat 600 SNO PRO - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2703-573 SHOCK, SKI
    SHOCK, SKI
  • 2
    2703-385 SPRING, COMPRESSION - WHITE - 175 LB
    SPRING, COMPRESSION - WHITE - 175 LB
  • 2
    2703-386 SPRING, COMPRESSION - WHITE - 160 LB (OPTIONAL)
    SPRING, COMPRESSION - WHITE - 160 LB (OPTIONAL)
  • 2
    2703-387 SPRING, COMPRESSION - WHITE - 190 LB (OPTIONAL)
    SPRING, COMPRESSION - WHITE - 190 LB (OPTIONAL)
  • 3
    1603-890 RETAINER, SPRING
    RETAINER, SPRING
  • 4
    2603-758 SPACER
    SPACER
  • 5
    2604-698 O-RING
    O-RING
  • 6
    8408-045 SCREW, CAP
    SCREW, CAP
  • 7
    8427-002 NUT, LOCK
    NUT, LOCK
  • 8
    4639-961 KIT, SWAY BAR - BLACK - 11.1 MM (INC. 9)
    KIT, SWAY BAR - BLACK - 11.1 MM (INC. 9)
  • 8
    4639-962 KIT, SWAY BAR - BLACK - 12.7 MM (INC. 9) (OPTIONAL)
    KIT, SWAY BAR - BLACK - 12.7 MM (INC. 9) (OPTIONAL)
  • 8
    4639-963 KIT, SWAY BAR - BLACK - 14.3 MM (INC. 9) (OPTIONAL)
    KIT, SWAY BAR - BLACK - 14.3 MM (INC. 9) (OPTIONAL)
  • 9
    2603-803 ...BUSHING, SWAY BAR - 11.1 MM
    ...BUSHING, SWAY BAR - 11.1 MM
  • 9
    2603-804 ...BUSHING, SWAY BAR - 12.7 MM (OPTIONAL)
    ...BUSHING, SWAY BAR - 12.7 MM (OPTIONAL)
  • 9
    2603-775 ...BUSHING, SWAY BAR - 14.3 MM (OPTIONAL)
    ...BUSHING, SWAY BAR - 14.3 MM (OPTIONAL)
  • 10
    2603-829 BRACKET, MOUNTING - SWAY BAR
    BRACKET, MOUNTING - SWAY BAR
  • 11
    8408-616 SCREW, CAP
    SCREW, CAP
  • 12
    8050-217 WASHER
    WASHER
  • 13
    2603-830 LINK, SWAY BAR
    LINK, SWAY BAR
  • 14
    8408-835 SCREW, CAP
    SCREW, CAP
  • 15
    8427-802 NUT, LOCK
    NUT, LOCK
