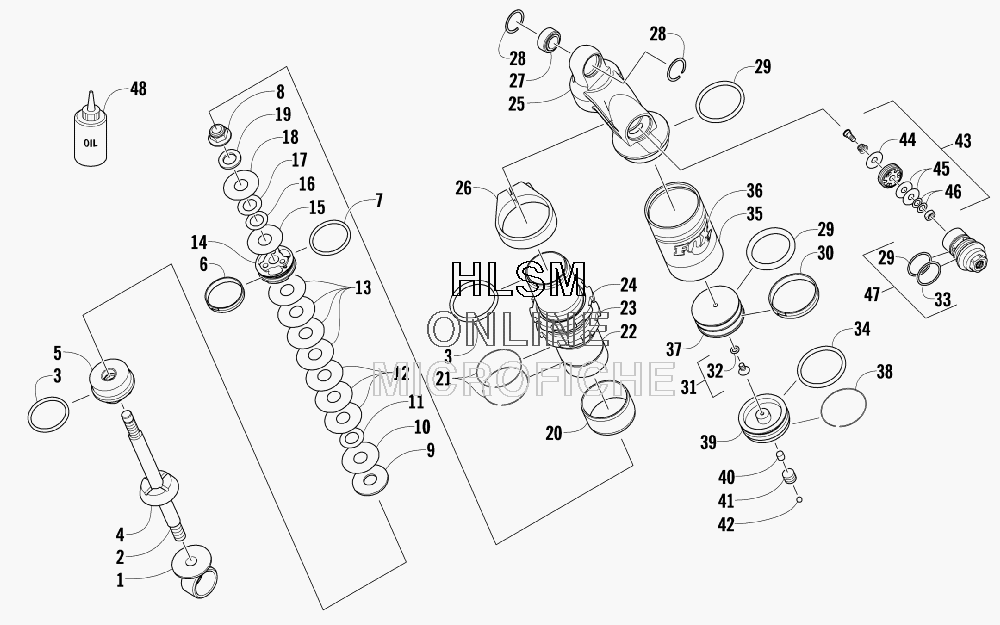

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat 600 SNO PRO - 2009 года выпуска`

№

Артикул

Название
-

1704-825 COMPLETE SHOCK ABSORBER ASSEMBLY

COMPLETE SHOCK ABSORBER ASSEMBLY

130 ₽
1

0603-910 EYELET, SHOCK

EYELET, SHOCK

13 930 ₽
2

3604-525 ROD, SHOCK

ROD, SHOCK

12 890 ₽
3

3604-538 KIT, SEAL/REBUILD (INC. 4-8)

KIT, SEAL/REBUILD (INC. 4-8)

37 020 ₽
4

3604-530 ...BUMPER

...BUMPER

7 270 ₽
5

2604-812 ...BEARING - ASSEMBLY

...BEARING - ASSEMBLY

29 950 ₽
6

0603-292 ...STRAP, PISTON

...STRAP, PISTON

5 610 ₽
7

2604-214 ...O-RING

...O-RING

690 ₽
8

0603-301 ...NUT

...NUT

980 ₽
9

0603-540 WASHER, TOP OUT

WASHER, TOP OUT

2 490 ₽
10

0603-349 VALVE, SHOCK 1.300 X 0.008 IN.

VALVE, SHOCK 1.300 X 0.008 IN.

2 070 ₽
11

0603-333 VALVE, SHOCK 0.800 X 0.006 IN.

VALVE, SHOCK 0.800 X 0.006 IN.

2 070 ₽
12

0603-890 VALVE, SHOCK 1.300 X 0.015 IN.

VALVE, SHOCK 1.300 X 0.015 IN.

1 040 ₽
13

0603-891 VALVE, SHOCK 1.300 X 0.012 IN.

VALVE, SHOCK 1.300 X 0.012 IN.

1 870 ₽
14

2604-965 PISTON, 0.041 IN. - ORIFICE

PISTON, 0.041 IN. - ORIFICE

17 050 ₽
15

0603-342 VALVE, SHOCK 1.100 X 0.006 IN.

VALVE, SHOCK 1.100 X 0.006 IN.

1 040 ₽
16

3604-533 VALVE, SHOCK 0.600 X 0.012 IN.

VALVE, SHOCK 0.600 X 0.012 IN.

2 070 ₽
17

0603-335 VALVE, SHOCK 0.800 X 0.010 IN.

VALVE, SHOCK 0.800 X 0.010 IN.

1 870 ₽
18

3604-170 WASHER, TOP OUT

WASHER, TOP OUT

3 320 ₽
19

0603-389 WASHER, BACKUP

WASHER, BACKUP

1 870 ₽
20

2603-246 SLEEVE, WEAR

SLEEVE, WEAR

4 150 ₽
21

2603-245 RETAINER, SLEEVE

RETAINER, SLEEVE

1 040 ₽
22

3604-523 BODY, SHOCK

BODY, SHOCK

28 490 ₽
23

2604-840 NUT, ADJUSTER

NUT, ADJUSTER

7 480 ₽
24

2604-841 COLLAR, LOCKING - ADJUSTER NUT

COLLAR, LOCKING - ADJUSTER NUT

7 480 ₽
25

3604-522 END CAP, SHOCK/RESERVOIR (INC. 26-28)

END CAP, SHOCK/RESERVOIR (INC. 26-28)

60 940 ₽
26

3604-532 ...CLAMP, BODY/END CAP

...CLAMP, BODY/END CAP

12 470 ₽
27

3604-526 ...BEARING

...BEARING

13 310 ₽
28

3604-527 ...RING, RETAINING

...RING, RETAINING

2 070 ₽
29

3604-539 REBUILD KIT, RESERVOIR (INC. 30-34)

REBUILD KIT, RESERVOIR (INC. 30-34)

29 950 ₽
30

1603-235 ...STRAP, PISTON

...STRAP, PISTON

3 110 ₽
31

1604-316 ...SCREW, RELIEF (INC. 32)

...SCREW, RELIEF (INC. 32)

770 ₽
32

1604-425 ......O-RING

......O-RING

690 ₽
33

2603-502 ...O-RING

...O-RING

980 ₽
34

0603-671 ...O-RING

...O-RING

630 ₽
35

3604-528 RESERVOIR

RESERVOIR

27 450 ₽
36

3604-160 DECAL, SHOCK - RESERVOIR

DECAL, SHOCK - RESERVOIR

3 950 ₽
37

3604-524 PISTON, INTERNAL FLOATING

PISTON, INTERNAL FLOATING

17 470 ₽
38

0604-992 RING, RETAINING

RING, RETAINING

920 ₽
39

3604-517 END CAP, RESERVOIR (INC. 34 AND 40-42)

END CAP, RESERVOIR (INC. 34 AND 40-42)

11 850 ₽
40

1604-428 ...PLUG

...PLUG

2 070 ₽
41

2603-338 ...SCREW, SET (FAV3 VALVE)

...SCREW, SET (FAV3 VALVE)

2 280 ₽
42

2603-337 ...BALL

...BALL

770 ₽
43

3604-187 PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 44-46)

PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 44-46)

41 590 ₽
44

0603-331 ...VALVE, SHOCK 0.700 X 0.008 IN.

...VALVE, SHOCK 0.700 X 0.008 IN.

920 ₽
45

2603-501 ...VALVE, SHOCK 0.700 X 0.010 IN.

...VALVE, SHOCK 0.700 X 0.010 IN.

2 070 ₽
46

3604-165 ...PLATE, BACKUP

...PLATE, BACKUP

2 070 ₽
47

2603-527 CARTRIDGE, DAMPING ADJUSTER (INC. 33)

CARTRIDGE, DAMPING ADJUSTER (INC. 33)

14 140 ₽
48

5639-240 OIL, SHOCK - 1 QT

OIL, SHOCK - 1 QT

3 950 ₽
