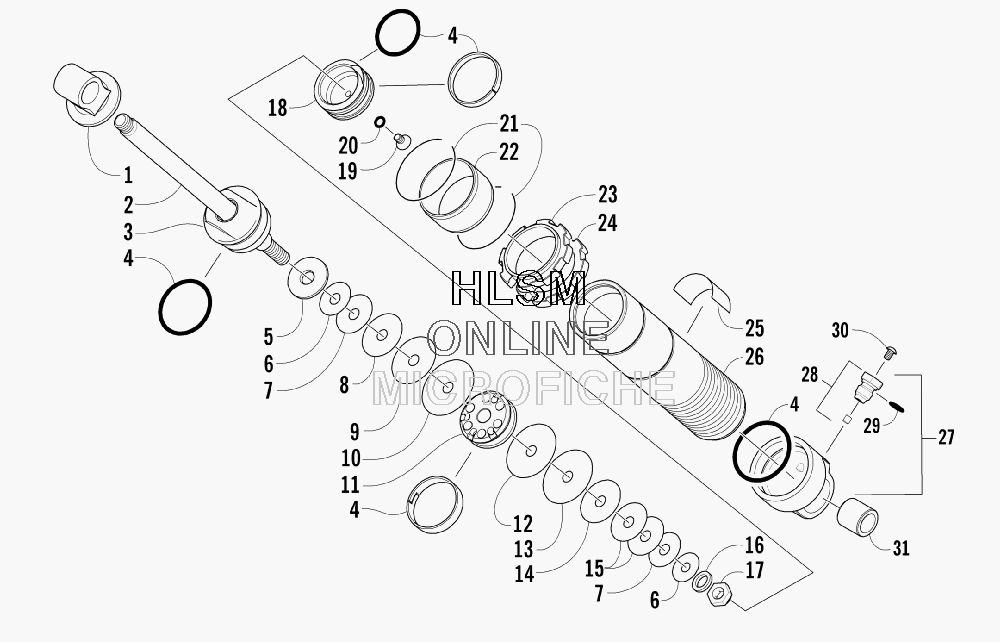

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat JAGUAR Z1 NIGHTFIRE SNO PRO - 2008 года выпуска`
-
№АртикулНазвание
-
1704-527 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
10604-625 EYELET, SHOCKEYELET, SHOCK
-
22604-883 ROD, SHOCKROD, SHOCK
-
32604-812 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
42604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
50603-540 WASHER, TOP OUTWASHER, TOP OUT
-
60603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
70603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
80603-881 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
90603-882 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
100603-891 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
112604-412 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
120603-883 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
130603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
140603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
150603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
160603-389 WASHER, BACKUPWASHER, BACKUP
-
170603-301 NUT, LOCKNUT, LOCK
-
182604-816 PISTON, FLOATINGPISTON, FLOATING
-
191604-316 SCREW, RELIEF (INC. 20)SCREW, RELIEF (INC. 20)
-
201604-425 ...O-RING...O-RING
-
212603-245 RING, RETAININGRING, RETAINING
-
222603-246 GUIDE, SPRINGGUIDE, SPRING
-
232604-840 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
242604-841 NUT, LOCKING - SPRING ADJUSTERNUT, LOCKING - SPRING ADJUSTER
-
252603-475 DECAL, SHOCKDECAL, SHOCK
-
263604-178 BODY, SHOCKBODY, SHOCK
-
272604-817 END CAP, SHOCK - ASSEMBLY (INC. 28-29)END CAP, SHOCK - ASSEMBLY (INC. 28-29)
-
280703-341 ...VALVE, PRESSURE (INC. 29)...VALVE, PRESSURE (INC. 29)
-
291604-318 ......O-RING......O-RING
-
300624-097 SCREW, VALVESCREW, VALVE
-
312604-415 SLEEVE, SHOCK EYELETSLEEVE, SHOCK EYELET
-
*4639-368 OIL, GAS SHOCK - 1 QT (NOT ILLUSTRATED)OIL, GAS SHOCK - 1 QT (NOT ILLUSTRATED)
