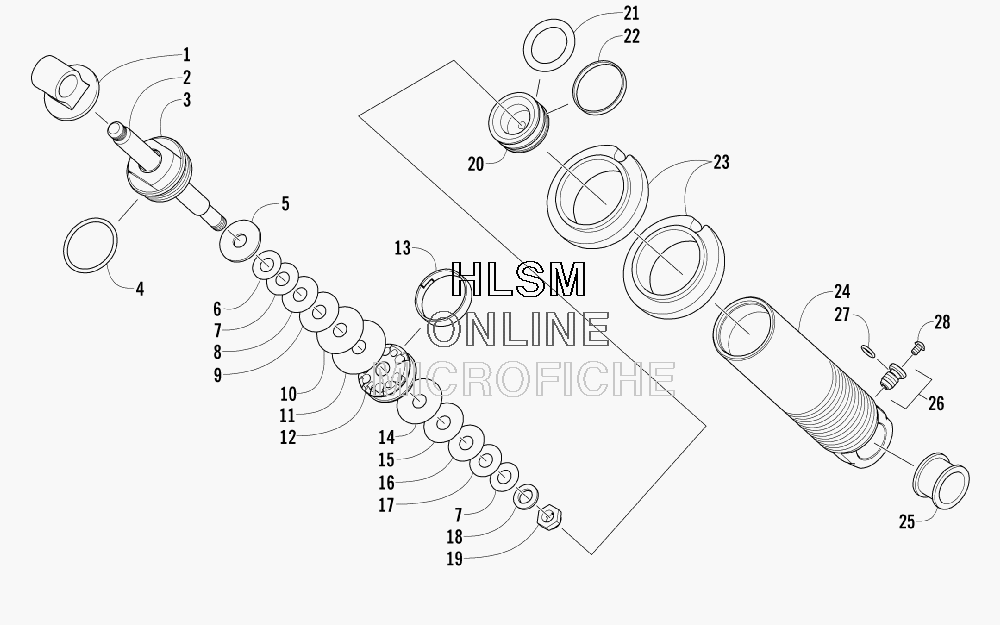

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat JAGUAR Z1 INTERNATIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
1704-571 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11604-796 EYELET, SHOCKEYELET, SHOCK
-
23604-140 ROD, SHOCKROD, SHOCK
-
31703-453 CAP, SHOCK (INC. 4)CAP, SHOCK (INC. 4)
-
41604-271 ...O-RING...O-RING
-
51604-272 WASHER, TOP OUTWASHER, TOP OUT
-
60603-878 VALVE, 0.700 X 0.012 IN.VALVE, 0.700 X 0.012 IN.
-
72603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
82603-064 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
92603-074 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
102603-094 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
112603-134 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
120603-953 PISTON, 0.093 IN. - ORIFICEPISTON, 0.093 IN. - ORIFICE
-
131604-274 STRAP, PISTON - TEFLONSTRAP, PISTON - TEFLON
-
142603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
152603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
162603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
172603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
181604-273 WASHER, BACKUPWASHER, BACKUP
-
190623-696 NUT, LOCKNUT, LOCK
-
200704-791 PISTON, FLOATING (INC. 21-22)PISTON, FLOATING (INC. 21-22)
-
212604-152 ...O-RING...O-RING
-
222604-153 ...STRAP, PISTON - TEFLON...STRAP, PISTON - TEFLON
-
231603-911 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
243604-139 BODY, SHOCKBODY, SHOCK
-
252604-156 SLEEVE, SHOCK EYELETSLEEVE, SHOCK EYELET
-
262604-649 VALVE, PRESSURE (INC. 27)VALVE, PRESSURE (INC. 27)
-
272604-162 ...O-RING, VALVE...O-RING, VALVE
-
280624-433 SCREW, VALVESCREW, VALVE
-
*4639-366 OIL, GAS SHOCK - 1 QT (NOT ILLUSTRATED)OIL, GAS SHOCK - 1 QT (NOT ILLUSTRATED)
