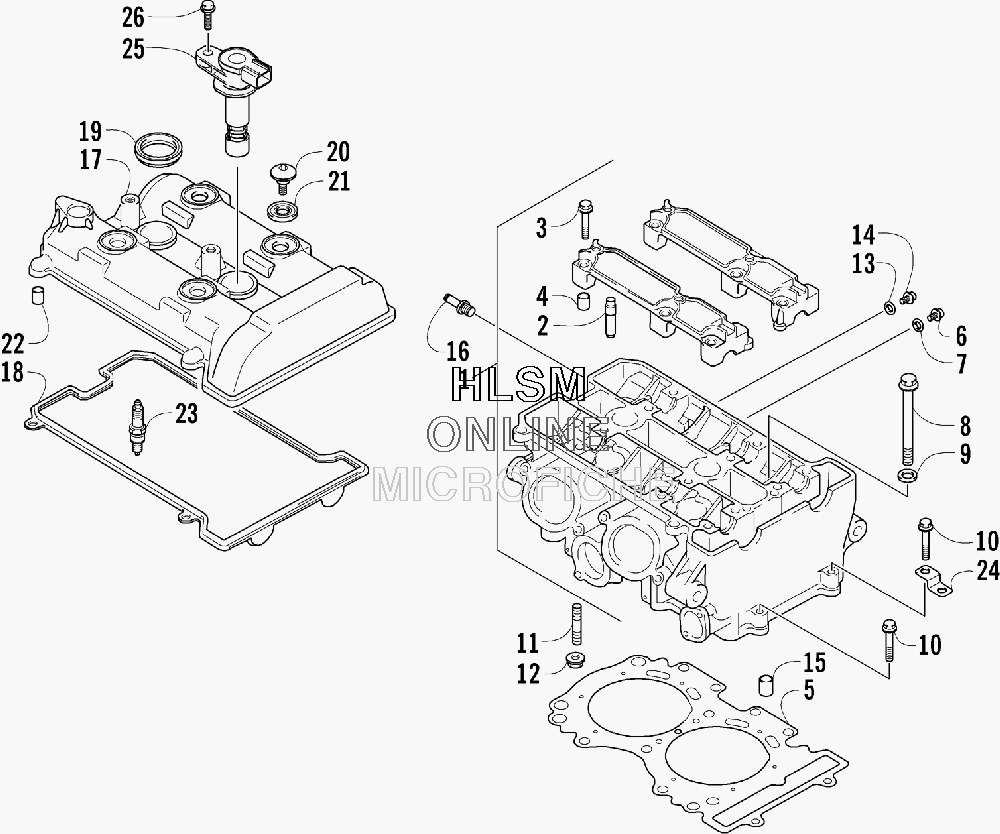

CYLINDER HEAD ASSEMBLY для Arctic Cat JAGUAR Z1 INTERNATIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
13007-494 HEAD, CYLINDER - ASSEMBLY (INC. 2-4)HEAD, CYLINDER - ASSEMBLY (INC. 2-4)
-
23007-069 ...GUIDE, VALVE...GUIDE, VALVE
-
33007-070 ...BOLT, CAMSHAFT HOUSING...BOLT, CAMSHAFT HOUSING
-
43007-071 ...PIN, DOWEL...PIN, DOWEL
-
53007-072 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
63006-598 BOLT, AIR-RELEASEBOLT, AIR-RELEASE
-
73003-290 GASKET, AIR-RELEASE BOLTGASKET, AIR-RELEASE BOLT
-
83007-073 BOLT, CYLINDER HEADBOLT, CYLINDER HEAD
-
93007-495 WASHER, CYLINDER HEAD BOLTWASHER, CYLINDER HEAD BOLT
-
103007-496 BOLT, CYLINDER HEADBOLT, CYLINDER HEAD
-
113007-074 BOLT, STUDBOLT, STUD
-
123007-390 NUTNUT
-
133003-290 GASKET, OIL PLUGGASKET, OIL PLUG
-
143007-497 PLUG, OILPLUG, OIL
-
153423-088 PIN, DOWELPIN, DOWEL
-
163007-075 FITTING, WATER BYPASS HOSEFITTING, WATER BYPASS HOSE
-
173007-076 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
183007-077 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
193007-078 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
203423-646 BOLTBOLT
-
213423-680 WASHERWASHER
-
223423-043 PIN, DOWELPIN, DOWEL
-
230217-732 PLUG, SPARK (CR8EKB)PLUG, SPARK (CR8EKB)
-
243007-079 BRACKET, HARNESSBRACKET, HARNESS
-
253007-236 COIL, IGNITIONCOIL, IGNITION
-
263007-380 BOLT, IGNITION COILBOLT, IGNITION COIL
