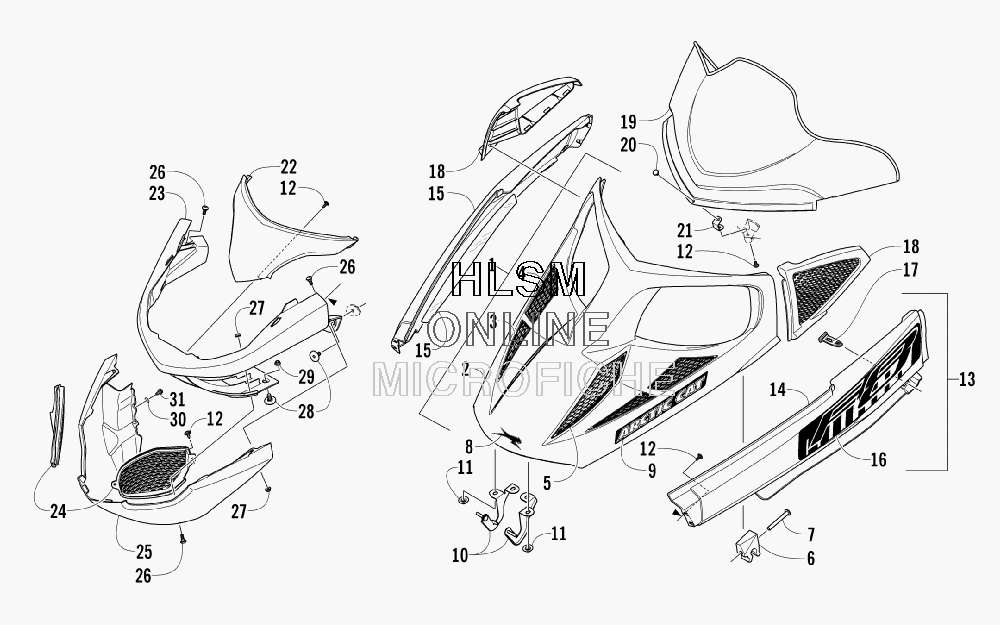

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat F8 EFI NIGHTFIRE SNO PRO - 2008 года выпуска`
-
№АртикулНазвание
-
12718-463 HOOD W/DECALS - BLACK (INC. 2-9)HOOD W/DECALS - BLACK (INC. 2-9)
-
27999-794 ...HOOD W/O DECALS - BLACK (INC. 3-7)...HOOD W/O DECALS - BLACK (INC. 3-7)
-
34606-624 ......VENT, HOOD - OUTER FRONT - RIGHT - BLACK......VENT, HOOD - OUTER FRONT - RIGHT - BLACK
-
34606-625 ......VENT, HOOD - OUTER FRONT - LEFT - BLACK......VENT, HOOD - OUTER FRONT - LEFT - BLACK
-
44606-640 ......VENT, HOOD - OUTER REAR - RIGHT - BLACK......VENT, HOOD - OUTER REAR - RIGHT - BLACK
-
44606-641 ......VENT, HOOD - OUTER REAR - LEFT - BLACK......VENT, HOOD - OUTER REAR - LEFT - BLACK
-
54606-614 ......VENT, HOOD - INNER - RIGHT - BLACK......VENT, HOOD - INNER - RIGHT - BLACK
-
54606-615 ......VENT, HOOD - INNER - LEFT - BLACK......VENT, HOOD - INNER - LEFT - BLACK
-
61623-614 ......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT
-
61623-615 ......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT
-
71623-610 ......PIN, RETAINING......PIN, RETAINING
-
88611-267 ...DECAL, AIRCAT - CHROME...DECAL, AIRCAT - CHROME
-
98611-306 ...DECAL, HOOD - "ARCTIC CAT" - BLACK...DECAL, HOOD - "ARCTIC CAT" - BLACK
-
103706-348 BRACKET, HINGE - RIGHTBRACKET, HINGE - RIGHT
-
103706-347 BRACKET, HINGE - LEFTBRACKET, HINGE - LEFT
-
111623-469 NUT, STAMPEDNUT, STAMPED
-
121623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
132718-460 SPAR, FRONT W/DECALS - RIGHT (INC. 14-16)SPAR, FRONT W/DECALS - RIGHT (INC. 14-16)
-
132718-461 SPAR, FRONT W/DECALS - LEFT (INC. 14 AND 16)SPAR, FRONT W/DECALS - LEFT (INC. 14 AND 16)
-
144606-884 ...SPAR, FRONT W/O DECALS - RIGHT - BLACK...SPAR, FRONT W/O DECALS - RIGHT - BLACK
-
144606-885 ...SPAR, FRONT W/O DECALS - LEFT - BLACK...SPAR, FRONT W/O DECALS - LEFT - BLACK
-
154606-934 ...FOIL, SPAR - RIGHT...FOIL, SPAR - RIGHT
-
168611-318 ...DECAL, FRONT SPAR - RIGHT...DECAL, FRONT SPAR - RIGHT
-
168611-319 ...DECAL, FRONT SPAR - LEFT...DECAL, FRONT SPAR - LEFT
-
174606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
185606-414 BEZEL, INTAKE - RIGHT - BLACKBEZEL, INTAKE - RIGHT - BLACK
-
185606-415 BEZEL, INTAKE - LEFT - BLACKBEZEL, INTAKE - LEFT - BLACK
-
195606-398 WINDSHIELDWINDSHIELD
-
201623-677 RIVET, PLASTICRIVET, PLASTIC
-
214606-961 BRACKET, WINDSHIELD - HOLD-DOWNBRACKET, WINDSHIELD - HOLD-DOWN
-
224606-518 FASCIA, BUMPER - UPPER - BLACKFASCIA, BUMPER - UPPER - BLACK
-
234606-512 BUMPER, FRONTBUMPER, FRONT
-
244606-604 VENT, BUMPER - RIGHT - BLACKVENT, BUMPER - RIGHT - BLACK
-
244606-605 VENT, BUMPER - LEFT - BLACKVENT, BUMPER - LEFT - BLACK
-
255606-462 FASCIA, BUMPER - LOWER W/O DECALS - BLACKFASCIA, BUMPER - LOWER W/O DECALS - BLACK
-
260423-355 SCREW, SHOULDERSCREW, SHOULDER
-
278427-602 NUT, LOCKNUT, LOCK
-
280423-130 SCREW, BODYSCREW, BODY
-
298424-602 NUTNUT
-
308053-242 WASHER, LOCKWASHER, LOCK
-
310623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
