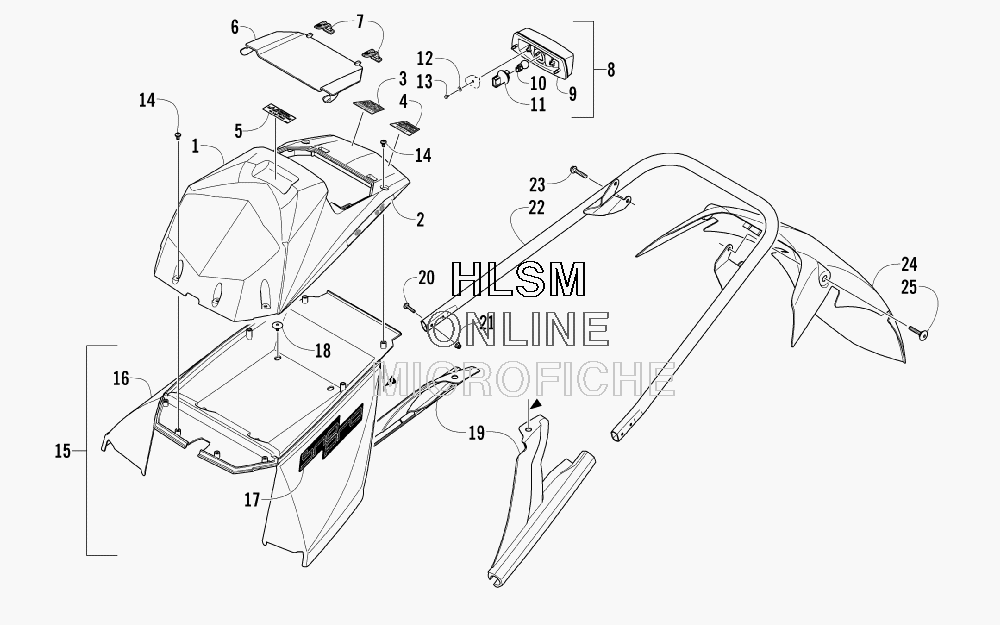

REAR BUMPER- STORAGE BOX- AND TAILLIGHT ASSEMBLY для Arctic Cat F8 EFI NIGHTFIRE SNO PRO - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2718-365 BOX, STORAGE W/O DECALS - BLACK (INC. 2-4)
    BOX, STORAGE W/O DECALS - BLACK (INC. 2-4)
  • 2
    8611-182 ...DECAL, REFLECTOR - RIGHT
    ...DECAL, REFLECTOR - RIGHT
  • 2
    8611-183 ...DECAL, REFLECTOR - LEFT
    ...DECAL, REFLECTOR - LEFT
  • 3
    7611-432 ...DECAL, WARNING - TOWING (FRENCH)
    ...DECAL, WARNING - TOWING (FRENCH)
  • 4
    7611-433 ...DECAL, WARNING - TOWING (ENGLISH)
    ...DECAL, WARNING - TOWING (ENGLISH)
  • 5
    7611-902 DECAL, SEAT ADJUSTMENT
    DECAL, SEAT ADJUSTMENT
  • 6
    4606-732 LID, REAR STORAGE BOX - BLACK
    LID, REAR STORAGE BOX - BLACK
  • 7
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 8
    0509-022 TAILLIGHT W/SOCKET ASSEMBLY (INC. 9-11)
    TAILLIGHT W/SOCKET ASSEMBLY (INC. 9-11)
  • 9
    0509-025 ...HOUSING, TAILLIGHT
    ...HOUSING, TAILLIGHT
  • 10
    0409-056 ...BULB, TAILLIGHT
    ...BULB, TAILLIGHT
  • 11
    0409-057 ...SOCKET, TAILLIGHT
    ...SOCKET, TAILLIGHT
  • 12
    8050-127 WASHER
    WASHER
  • 13
    0623-257 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    1623-661 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    2718-462 FENDER, REAR - TUNNEL W/DECALS (INC. 16-17)
    FENDER, REAR - TUNNEL W/DECALS (INC. 16-17)
  • 16
    4706-162 ...FENDER, REAR - TUNNEL
    ...FENDER, REAR - TUNNEL
  • 17
    8611-307 ...DECAL, REAR FENDER - LOWER
    ...DECAL, REAR FENDER - LOWER
  • 18
    0423-101 SCREW, BODY
    SCREW, BODY
  • 19
    4606-728 PANEL, FILLER - SNOWFLAP - RIGHT
    PANEL, FILLER - SNOWFLAP - RIGHT
  • 19
    4606-729 PANEL, FILLER - SNOWFLAP - LEFT
    PANEL, FILLER - SNOWFLAP - LEFT
  • 20
    8476-630 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    8427-602 NUT, LOCK
    NUT, LOCK
  • 22
    1707-181 BUMPER, REAR
    BUMPER, REAR
  • 23
    1623-428 SCREW, CAP
    SCREW, CAP
  • 24
    3706-920 SNOWFLAP
    SNOWFLAP
  • 25
    1623-532 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • *
    4706-055 KIT, TOOL (NOT ILLUSTRATED)
    KIT, TOOL (NOT ILLUSTRATED)
