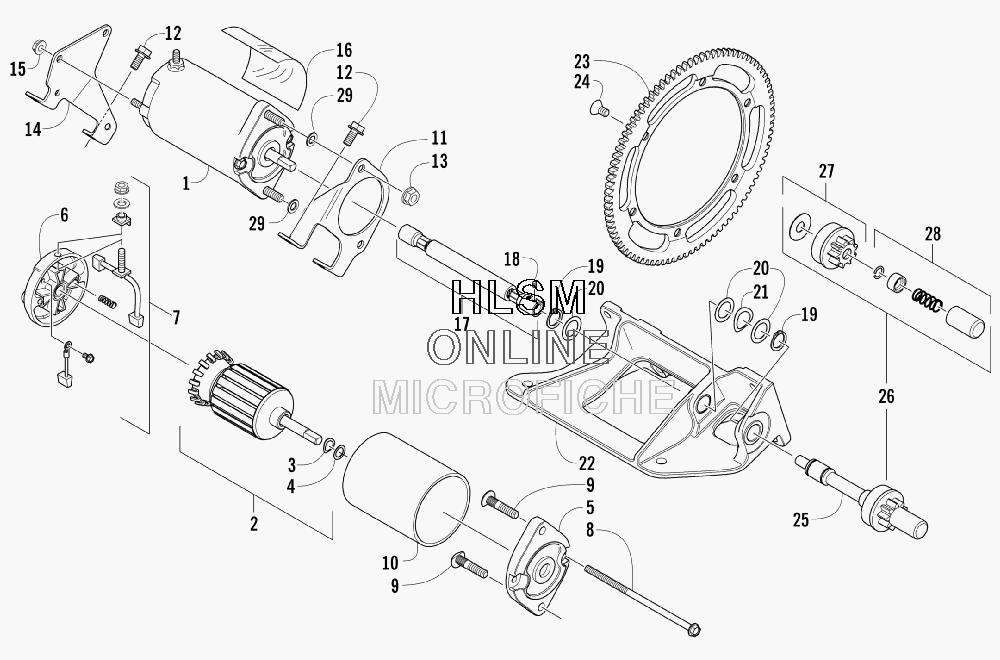

FLEX-DRIVE STARTER MOTOR ASSEMBLY для Arctic Cat BEARCAT 570 INTERNATIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
10745-143 MOTOR, STARTER (INC. 2-10)MOTOR, STARTER (INC. 2-10)
-
20645-296 ...ARMATURE ASSEMBLY (INC. 3-4)...ARMATURE ASSEMBLY (INC. 3-4)
-
30645-131 ......WASHER, WAVE......WASHER, WAVE
-
40645-293 ......WASHER, THRUST......WASHER, THRUST
-
50645-297 ...CAP, DRIVE...CAP, DRIVE
-
60645-313 ...CAP, COMMUTATOR (INC. 7)...CAP, COMMUTATOR (INC. 7)
-
70645-275 ......KIT, BRUSH AND SPRING......KIT, BRUSH AND SPRING
-
80645-128 ...THROUGH-BOLT...THROUGH-BOLT
-
90623-093 ...BOLT, RIBBED...BOLT, RIBBED
-
110745-193 BRACKET, MOUNTING - STARTER MOTORBRACKET, MOUNTING - STARTER MOTOR
-
120623-765 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
138047-426 NUT, LOCKNUT, LOCK
-
140745-194 BRACKET, MOUNTINGBRACKET, MOUNTING
-
158047-366 NUT, LOCKNUT, LOCK
-
160716-344 TAPE, FOILTAPE, FOIL
-
170745-167 SHAFT, FLEX-DRIVE (INC. TWO NO. 18)SHAFT, FLEX-DRIVE (INC. TWO NO. 18)
-
180623-891 ...SCREW, SET - SOCKET...SCREW, SET - SOCKET
-
190645-256 RING, SNAPRING, SNAP
-
200645-254 WASHER, THRUSTWASHER, THRUST
-
210645-255 WASHER, WAVEWASHER, WAVE
-
220745-154 BRACKET, ENGINE MOUNTING - FRONTBRACKET, ENGINE MOUNTING - FRONT
-
230645-329 RING GEARRING GEAR
-
241623-128 SCREW, MACHINESCREW, MACHINE
-
250745-253 DRIVE, PINION - FLEX-DRIVE SHAFT (INC. 26-28)DRIVE, PINION - FLEX-DRIVE SHAFT (INC. 26-28)
-
260745-224 ...KIT, PINION DRIVE ASSEMBLY (INC. 27-28)...KIT, PINION DRIVE ASSEMBLY (INC. 27-28)
-
270645-380 ......PINION DRIVE ASSEMBLY......PINION DRIVE ASSEMBLY
-
280645-186 ......PINION STOPPER ASSEMBLY......PINION STOPPER ASSEMBLY
-
290123-053 WASHERWASHER
