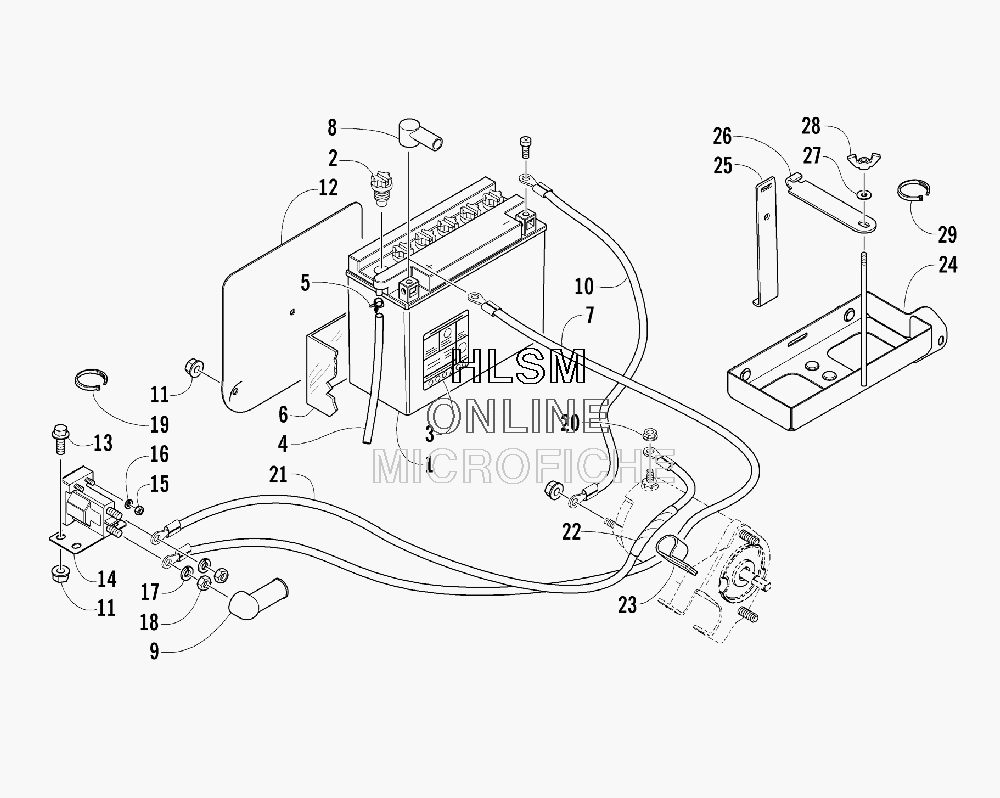

BATTERY- SOLENOID- AND CABLES для Arctic Cat BEARCAT 570 INTERNATIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
10745-059 BATTERY (INC. 2-6)BATTERY (INC. 2-6)
-
20645-246 ...CAP, BATTERY...CAP, BATTERY
-
30645-151 ...DECAL, WARNING - BATTERY...DECAL, WARNING - BATTERY
-
40645-179 ...HOSE, BATTERY VENT...HOSE, BATTERY VENT
-
50645-152 ...CLAMP, HOSE...CLAMP, HOSE
-
60645-082 ...WRAP, HEAT - BATTERY...WRAP, HEAT - BATTERY
-
70645-374 CABLE, BATTERY/SOLENOID (INC. 8-9)CABLE, BATTERY/SOLENOID (INC. 8-9)
-
80645-019 ...BOOT, TERMINAL - BATTERY...BOOT, TERMINAL - BATTERY
-
90645-327 ...BOOT, TERMINAL - SOLENOID...BOOT, TERMINAL - SOLENOID
-
100645-136 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
118047-366 NUT, LOCKNUT, LOCK
-
120745-139 SHIELD, HEATSHIELD, HEAT
-
138020-040 SCREW, CAPSCREW, CAP
-
140645-196 SOLENOID (INC. 15-18)SOLENOID (INC. 15-18)
-
158042-272 ...NUT...NUT
-
168051-152 ...WASHER, LOCK...WASHER, LOCK
-
178051-242 ...WASHER, LOCK...WASHER, LOCK
-
188043-452 ...NUT...NUT
-
190623-144 CABLE TIE - 17.5 IN.CABLE TIE - 17.5 IN.
-
200623-122 NUT, LOCKNUT, LOCK
-
210645-373 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
220645-181 TUBE, HEAT PROTECTIONTUBE, HEAT PROTECTION
-
233008-040 CLAMP, WIRECLAMP, WIRE
-
240745-166 TRAY, BATTERYTRAY, BATTERY
-
250645-311 STRAP, BATTERY - SIDESTRAP, BATTERY - SIDE
-
260645-243 STRAP, BATTERY - TOPSTRAP, BATTERY - TOP
-
278050-217 WASHERWASHER
-
280623-325 NUT, WINGNUT, WING
-
290123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
