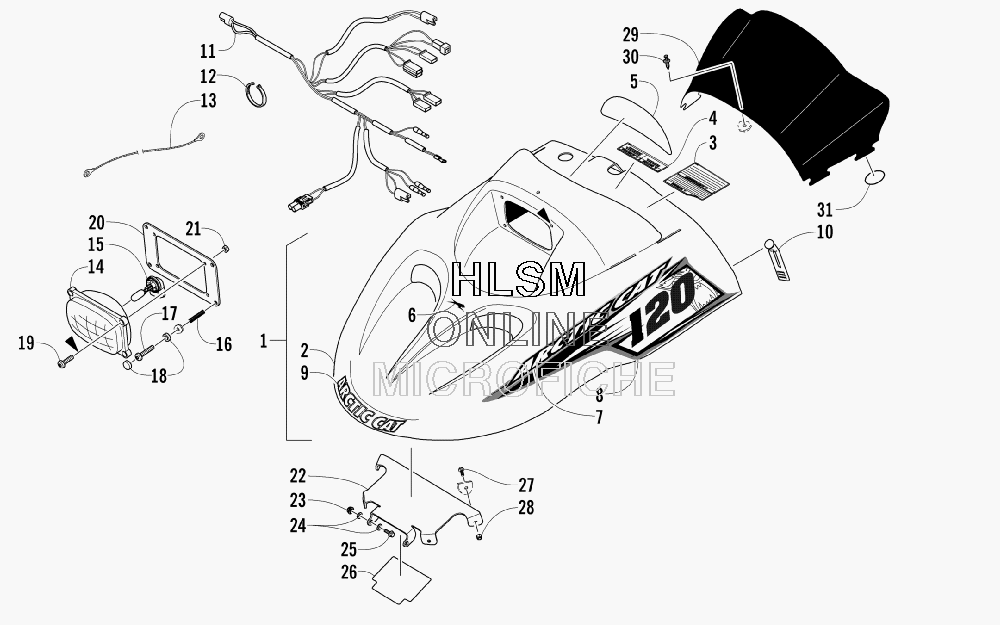

HOOD- HEADLIGHT- AND WINDSHIELD ASSEMBLY для Arctic Cat AC 120 (PINK) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2718-074 HOOD W/DECALS - GREEN (INC. 2-9) (GREEN)
    HOOD W/DECALS - GREEN (INC. 2-9) (GREEN)
  • 1
    2718-143 HOOD W/DECALS - PINK (INC. 2-9) (PINK)
    HOOD W/DECALS - PINK (INC. 2-9) (PINK)
  • 2
    2718-002 ...HOOD W/O DECALS - GREEN (INC. 3-4) (GREEN)
    ...HOOD W/O DECALS - GREEN (INC. 3-4) (GREEN)
  • 2
    2718-142 ...HOOD W/O DECALS - PINK (INC. 3-4) (PINK)
    ...HOOD W/O DECALS - PINK (INC. 3-4) (PINK)
  • 3
    3611-755 ......DECAL, CAUTION - THROTTLE
    ......DECAL, CAUTION - THROTTLE
  • 4
    3611-678 ......DECAL, CAUTION - HOOD
    ......DECAL, CAUTION - HOOD
  • 5
    7611-942 ...DECAL, INSTRUMENT PANEL (GREEN)
    ...DECAL, INSTRUMENT PANEL (GREEN)
  • 5
    8611-147 ...DECAL, INSTRUMENT PANEL (PINK)
    ...DECAL, INSTRUMENT PANEL (PINK)
  • 6
    8611-267 ...DECAL, AIRCAT - CHROME
    ...DECAL, AIRCAT - CHROME
  • 7
    7611-940 ...DECAL, HOOD - UPPER (GREEN)
    ...DECAL, HOOD - UPPER (GREEN)
  • 7
    8611-149 ...DECAL, HOOD - UPPER (PINK)
    ...DECAL, HOOD - UPPER (PINK)
  • 8
    7611-938 ...DECAL, HOOD - LOWER RIGHT (GREEN)
    ...DECAL, HOOD - LOWER RIGHT (GREEN)
  • 8
    7611-939 ...DECAL, HOOD - LOWER LEFT (GREEN)
    ...DECAL, HOOD - LOWER LEFT (GREEN)
  • 8
    8611-142 ...DECAL, HOOD - LOWER RIGHT (PINK)
    ...DECAL, HOOD - LOWER RIGHT (PINK)
  • 8
    8611-143 ...DECAL, HOOD - LOWER LEFT (PINK)
    ...DECAL, HOOD - LOWER LEFT (PINK)
  • 9
    7611-072 ...DECAL, "ARCTIC CAT"
    ...DECAL, "ARCTIC CAT"
  • 10
    1606-930 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 11
    1686-353 HARNESS, WIRING - MAIN
    HARNESS, WIRING - MAIN
  • 12
    0123-788 CABLE TIE - 7 IN.
    CABLE TIE - 7 IN.
  • 13
    2606-247 CABLE, HOOD
    CABLE, HOOD
  • 14
    0609-817 HEADLIGHT ASSEMBLY (INC. 15)
    HEADLIGHT ASSEMBLY (INC. 15)
  • 15
    0609-251 ...BULB, HEADLIGHT
    ...BULB, HEADLIGHT
  • 16
    0123-614 SPRING, ADJUSTMENT SCREW
    SPRING, ADJUSTMENT SCREW
  • 17
    8019-407 SCREW, ADJUSTMENT
    SCREW, ADJUSTMENT
  • 18
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 19
    8019-397 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    3706-719 PLATE, ADAPTER - HEADLIGHT
    PLATE, ADAPTER - HEADLIGHT
  • 21
    8041-246 NUT, HEX
    NUT, HEX
  • 22
    2706-140 BRACKET, MOUNTING - HOOD - UPPER
    BRACKET, MOUNTING - HOOD - UPPER
  • 23
    8047-366 NUT, LOCK
    NUT, LOCK
  • 24
    1623-011 WASHER
    WASHER
  • 25
    8020-039 SCREW, CAP
    SCREW, CAP
  • 26
    8611-241 DECAL, JET CHART
    DECAL, JET CHART
  • 27
    0623-902 SCREW, HEX WASHER HEAD
    SCREW, HEX WASHER HEAD
  • 28
    1623-023 NUT, LOCK
    NUT, LOCK
  • 29
    4606-411 WINDSHIELD
    WINDSHIELD
  • 30
    0623-243 CLIP, RETAINING
    CLIP, RETAINING
  • 31
    0616-032 O-RING, WINDSHIELD
    O-RING, WINDSHIELD
