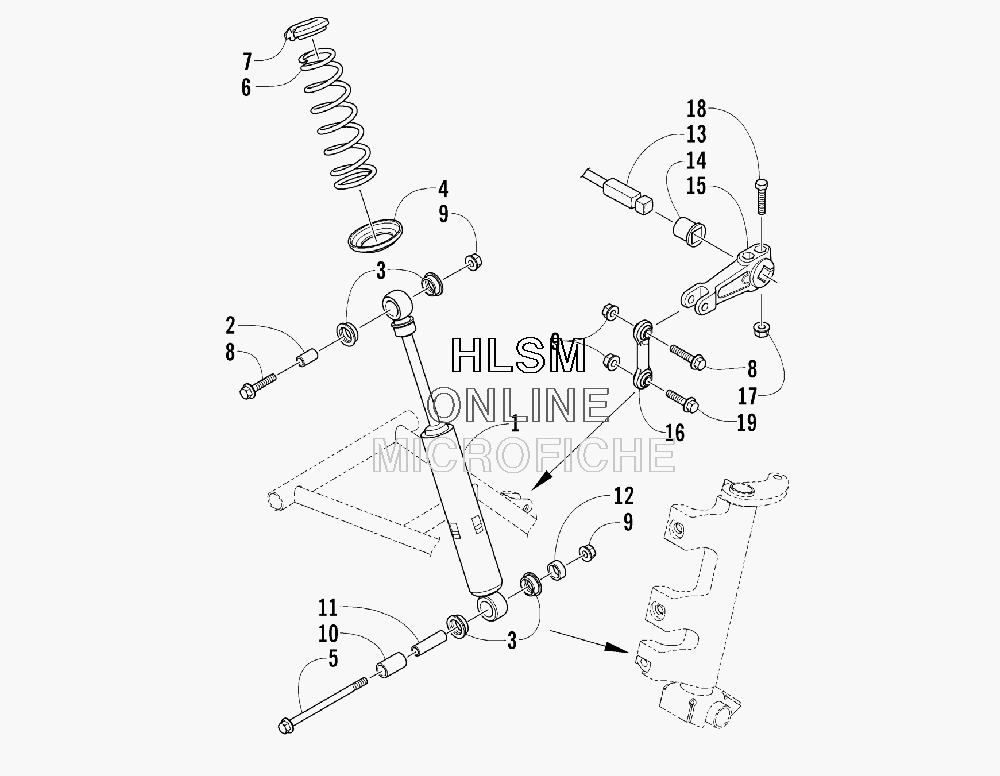

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat Z 570 (ORANGE LX) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    1603-253 SHOCK, FRONT SUSPENSION (INC. 2-3)
    SHOCK, FRONT SUSPENSION (INC. 2-3)
  • 2
    0604-309 ...SLEEVE, SHOCK
    ...SLEEVE, SHOCK
  • 3
    0604-310 ...BUSHING, SHOCK
    ...BUSHING, SHOCK
  • 4
    2703-187 RETAINER, SPRING - SHOCK
    RETAINER, SPRING - SHOCK
  • 5
    8020-234 SCREW, CAP
    SCREW, CAP
  • 6
    1703-858 SPRING, COMPRESSION - ORANGE
    SPRING, COMPRESSION - ORANGE
  • 7
    1603-889 RETAINER, SPRING
    RETAINER, SPRING
  • 8
    8020-226 SCREW, CAP
    SCREW, CAP
  • 9
    8047-486 NUT, LOCK
    NUT, LOCK
  • 10
    0603-854 SPACER, SHOCK
    SPACER, SHOCK
  • 11
    1604-184 SLEEVE, SHOCK
    SLEEVE, SHOCK
  • 12
    0603-855 SPACER, SHOCK
    SPACER, SHOCK
  • 13
    1703-618 SWAY BAR
    SWAY BAR
  • 14
    0603-151 BEARING, SWAY BAR
    BEARING, SWAY BAR
  • 15
    2603-307 ARM, SWAY BAR
    ARM, SWAY BAR
  • 16
    1603-002 LINK, SWAY BAR
    LINK, SWAY BAR
  • 17
    8047-426 NUT, LOCK
    NUT, LOCK
  • 18
    8002-137 SCREW, CAP
    SCREW, CAP
  • 19
    8020-225 SCREW, CAP
    SCREW, CAP
