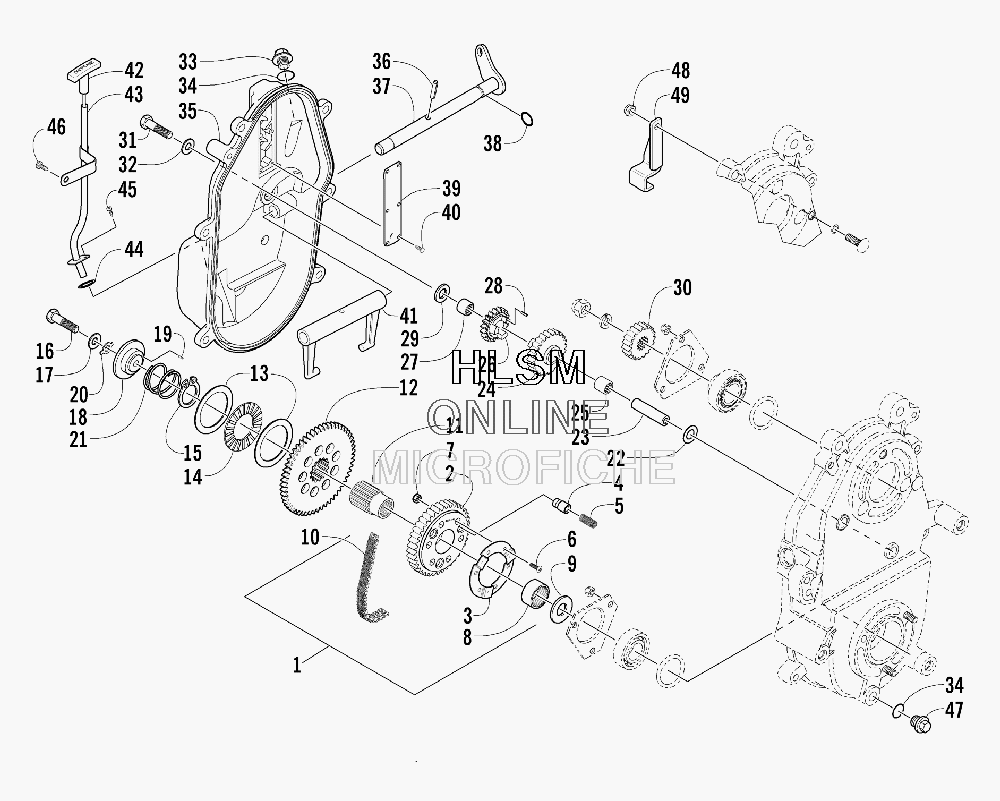

DRIVE/REVERSE DROPCASE ASSEMBLY (OPTIONAL) для Arctic Cat Z 570 (ORANGE LX) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1639-921 COMPLETE DRIVE/REVERSE DROPCASE ASSEMBLY KIT LOW/HIGH ALT
    COMPLETE DRIVE/REVERSE DROPCASE ASSEMBLY KIT LOW/HIGH ALT
  • 1
    0702-170 SPROCKET ASSEMBLY - 39T (INC. 2-8)
    SPROCKET ASSEMBLY - 39T (INC. 2-8)
  • 3
    0602-144 ...RETAINER, SPRING
    ...RETAINER, SPRING
  • 4
    0602-133 ...PIN, SLIP
    ...PIN, SLIP
  • 5
    0602-138 ...SPRING, COMPRESSION
    ...SPRING, COMPRESSION
  • 6
    0623-182 ...SCREW, CAP
    ...SCREW, CAP
  • 7
    0123-430 ...NUT, LOCK
    ...NUT, LOCK
  • 8
    0602-016 ...BEARING
    ...BEARING
  • 9
    0602-012 SPACER, SHAFT
    SPACER, SHAFT
  • 10
    1602-041 CHAIN - 70P
    CHAIN - 70P
  • 11
    1602-048 EXTENSION, DRIVESHAFT
    EXTENSION, DRIVESHAFT
  • 12
    0702-048 GEAR, REVERSE - 55T (INC. 13-15)
    GEAR, REVERSE - 55T (INC. 13-15)
  • 13
    0602-023 ...WASHER, THRUST
    ...WASHER, THRUST
  • 14
    0602-022 ...BEARING, THRUST
    ...BEARING, THRUST
  • 15
    0602-024 ...RING, RETAINING
    ...RING, RETAINING
  • 16
    8002-230 SCREW, CAP
    SCREW, CAP
  • 17
    8050-272 WASHER
    WASHER
  • 18
    0702-372 RETAINER, SHAFT (INC. 19)
    RETAINER, SHAFT (INC. 19)
  • 19
    8070-153 ...PIN, SPRING
    ...PIN, SPRING
  • 20
    1602-046 WASHER, TAB LOCK
    WASHER, TAB LOCK
  • 21
    0602-028 SPRING, RETURN
    SPRING, RETURN
  • 22
    0602-215 SPACER, REVERSE IDLER
    SPACER, REVERSE IDLER
  • 23
    0602-094 SHAFT, REVERSE
    SHAFT, REVERSE
  • 24
    0702-260 IDLER, REVERSE ASSEMBLY - 24T (INC. 25)
    IDLER, REVERSE ASSEMBLY - 24T (INC. 25)
  • 25
    0602-018 ...BEARING
    ...BEARING
  • 26
    0702-366 IDLER, REVERSE ASSEMBLY - 19T (INC. 27)
    IDLER, REVERSE ASSEMBLY - 19T (INC. 27)
  • 27
    1602-045 ...BEARING
    ...BEARING
  • 28
    0602-366 ALIGNER, IDLER - PIN
    ALIGNER, IDLER - PIN
  • 29
    1602-044 WASHER, THRUST
    WASHER, THRUST
  • 30
    0602-444 SPROCKET - 19T
    SPROCKET - 19T
  • 31
    8002-130 SCREW, CAP
    SCREW, CAP
  • 32
    8050-242 WASHER
    WASHER
  • 33
    0623-293 PLUG, DRAIN (ONE INCLUDED IN KIT)
    PLUG, DRAIN (ONE INCLUDED IN KIT)
  • 34
    1602-213 O-RING
    O-RING
  • 35
    1602-222 COVER, DROPCASE
    COVER, DROPCASE
  • 36
    0623-542 PIN, SPRING
    PIN, SPRING
  • 37
    0702-291 SHAFT, SHIFT FORK
    SHAFT, SHIFT FORK
  • 38
    0602-021 SEAL, O-RING
    SEAL, O-RING
  • 39
    1602-151 COVER, OIL VENT
    COVER, OIL VENT
  • 40
    0623-081 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 41
    0602-085 FORK, SHIFT
    FORK, SHIFT
  • 42
    1602-107 STICK, OIL LEVEL
    STICK, OIL LEVEL
  • 43
    1602-106 TUBE, OIL LEVEL STICK
    TUBE, OIL LEVEL STICK
  • 44
    0605-014 O-RING, OIL LEVEL STICK TUBE
    O-RING, OIL LEVEL STICK TUBE
  • 45
    0623-914 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 46
    0623-640 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 47
    0602-479 PLUG, DRAIN - MAGNETIC
    PLUG, DRAIN - MAGNETIC
  • 48
    0623-122 NUT, LOCK
    NUT, LOCK
  • 49
    0602-466 BRACKET, CHAIN BACKING
    BRACKET, CHAIN BACKING
