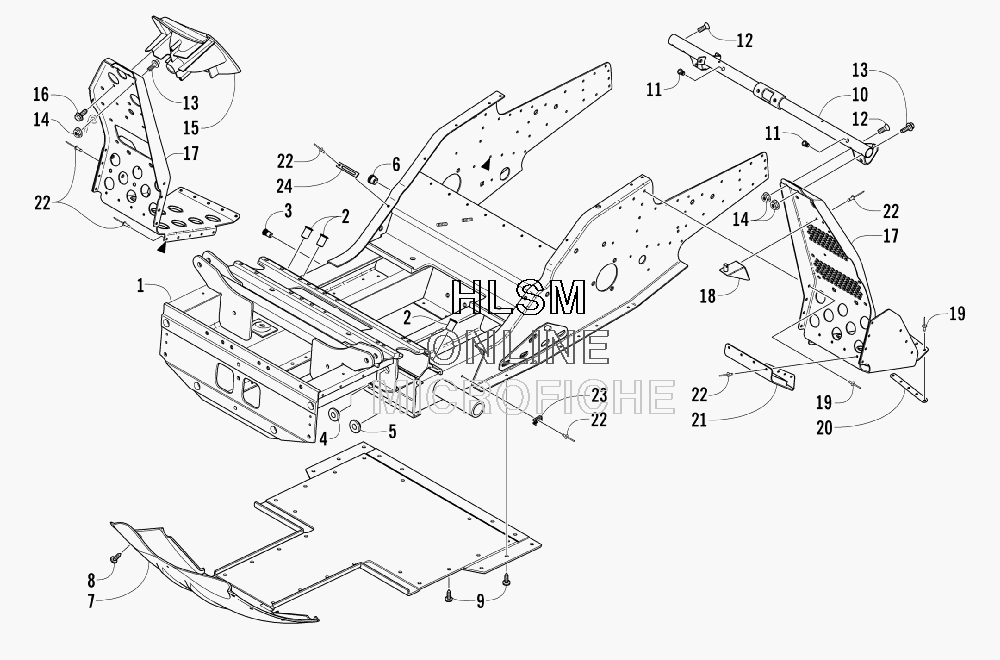

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat Z 370 (ORANGE) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0707-709 CHASSIS ASSEMBLY (INC. 2-6)
    CHASSIS ASSEMBLY (INC. 2-6)
  • 2
    0623-699 ...INSERT
    ...INSERT
  • 3
    0623-582 ...INSERT
    ...INSERT
  • 4
    0607-420 ...INSERT, LOWER A-ARM MOUNT
    ...INSERT, LOWER A-ARM MOUNT
  • 5
    0607-421 ...INSERT, UPPER A-ARM MOUNT
    ...INSERT, UPPER A-ARM MOUNT
  • 6
    0623-581 ...INSERT
    ...INSERT
  • 7
    1606-719 BELLY PAN - CENTER - BLACK
    BELLY PAN - CENTER - BLACK
  • 8
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 9
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 10
    0705-866 SUPPORT, STEERING (INC. 11)
    SUPPORT, STEERING (INC. 11)
  • 11
    0623-779 ...INSERT
    ...INSERT
  • 12
    8019-614 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    8020-040 SCREW, CAP
    SCREW, CAP
  • 14
    8047-366 NUT, LOCK
    NUT, LOCK
  • 15
    1606-062 CUP, RECOIL ROPE
    CUP, RECOIL ROPE
  • 16
    0623-297 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    2606-444 FOOTREST - RIGHT
    FOOTREST - RIGHT
  • 17
    2606-733 FOOTREST - LEFT
    FOOTREST - LEFT
  • 18
    0705-173 BRACKET, MOUNTING - GUARD
    BRACKET, MOUNTING - GUARD
  • 19
    8060-686 RIVET
    RIVET
  • 20
    2706-110 PLATE, BACKING - FOOTREST
    PLATE, BACKING - FOOTREST
  • 21
    2606-458 PLATE, BACKING - RIGHT
    PLATE, BACKING - RIGHT
  • 21
    2606-459 PLATE, BACKING - LEFT
    PLATE, BACKING - LEFT
  • 22
    8060-486 RIVET
    RIVET
  • 23
    0623-228 MOUNT, CABLE TIE
    MOUNT, CABLE TIE
  • 24
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
