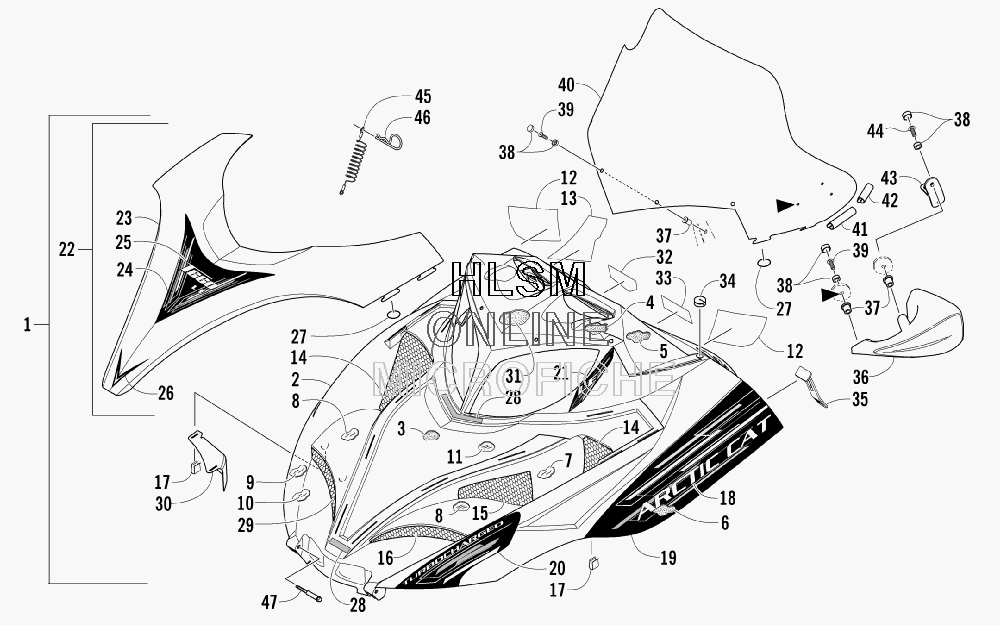

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat T660 TURBO TOURING (GREEN LE) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-990 HOOD W/DECALS - GREEN (INC. 2-16, FOURTEEN NO. 17, 18-26, TWELVE NO. 27, AND 28)
    HOOD W/DECALS - GREEN (INC. 2-16, FOURTEEN NO. 17, 18-26, TWELVE NO. 27, AND 28)
  • 2
    1718-989 ...HOOD W/O DECALS - GREEN (INC. 3-16 AND FOURTEEN NO. 17)
    ...HOOD W/O DECALS - GREEN (INC. 3-16 AND FOURTEEN NO. 17)
  • 3
    0717-183 ......FOAM, HOOD - MIDDLE
    ......FOAM, HOOD - MIDDLE
  • 4
    0717-186 ......FOAM, HOOD - GAUGE - RIGHT
    ......FOAM, HOOD - GAUGE - RIGHT
  • 5
    0717-190 ......FOAM, HOOD - UPPER RIGHT
    ......FOAM, HOOD - UPPER RIGHT
  • 5
    0717-191 ......FOAM, HOOD - UPPER LEFT
    ......FOAM, HOOD - UPPER LEFT
  • 6
    0717-184 ......FOAM, HOOD - FRONT - RIGHT
    ......FOAM, HOOD - FRONT - RIGHT
  • 6
    0717-185 ......FOAM, HOOD - FRONT - LEFT
    ......FOAM, HOOD - FRONT - LEFT
  • 7
    3606-375 ......FOIL, HOOD - SIDE
    ......FOIL, HOOD - SIDE
  • 8
    3606-372 ......FOIL, HOOD - UPPER RIGHT
    ......FOIL, HOOD - UPPER RIGHT
  • 8
    3606-373 ......FOIL, HOOD - UPPER LEFT
    ......FOIL, HOOD - UPPER LEFT
  • 9
    0619-206 ......TAPE, FOIL
    ......TAPE, FOIL
  • 10
    3606-374 ......FOIL, HOOD - LOWER RIGHT
    ......FOIL, HOOD - LOWER RIGHT
  • 11
    3606-376 ......FOIL, HOOD - UPPER
    ......FOIL, HOOD - UPPER
  • 12
    5611-840 ......DECAL, WARNING (ENGLISH)
    ......DECAL, WARNING (ENGLISH)
  • 12
    5611-841 ......DECAL, WARNING (FRENCH)
    ......DECAL, WARNING (FRENCH)
  • 13
    7611-151 ......DECAL, WARNING - BREAK-IN/REVERSE
    ......DECAL, WARNING - BREAK-IN/REVERSE
  • 14
    3606-236 ......SCREEN, HOOD - REAR - RIGHT - BLACK
    ......SCREEN, HOOD - REAR - RIGHT - BLACK
  • 14
    3606-237 ......SCREEN, HOOD - REAR - LEFT - BLACK
    ......SCREEN, HOOD - REAR - LEFT - BLACK
  • 15
    4606-161 ......SCREEN, HOOD - MIDDLE - BLACK
    ......SCREEN, HOOD - MIDDLE - BLACK
  • 16
    3606-235 ......SCREEN, HOOD - FRONT - LEFT - BLACK
    ......SCREEN, HOOD - FRONT - LEFT - BLACK
  • 17
    0123-987 ......CLIP, RETAINING
    ......CLIP, RETAINING
  • 18
    6611-805 ...EMBLEM, CHROME - HOOD
    ...EMBLEM, CHROME - HOOD
  • 19
    7611-536 ...DECAL, HOOD - LOWER RIGHT
    ...DECAL, HOOD - LOWER RIGHT
  • 19
    7611-537 ...DECAL, HOOD - LOWER LEFT
    ...DECAL, HOOD - LOWER LEFT
  • 20
    7611-538 ...DECAL, HOOD - FRONT - RIGHT
    ...DECAL, HOOD - FRONT - RIGHT
  • 20
    7611-539 ...DECAL, HOOD - FRONT - LEFT
    ...DECAL, HOOD - FRONT - LEFT
  • 21
    7611-576 ...DECAL, HOOD - UPPER - RIGHT - "LE"
    ...DECAL, HOOD - UPPER - RIGHT - "LE"
  • 21
    7611-577 ...DECAL, HOOD - UPPER - LEFT - "LE"
    ...DECAL, HOOD - UPPER - LEFT - "LE"
  • 22
    1718-991 ...COVER, HOOD W/DECALS - GREEN (INC. 23-26)
    ...COVER, HOOD W/DECALS - GREEN (INC. 23-26)
  • 23
    4606-438 ......COVER, HOOD W/O DECALS - GREEN
    ......COVER, HOOD W/O DECALS - GREEN
  • 24
    7611-547 ......DECAL, HOOD COVER - CREST
    ......DECAL, HOOD COVER - CREST
  • 25
    7611-578 ......EMBLEM, HOOD COVER - "T660 LE"
    ......EMBLEM, HOOD COVER - "T660 LE"
  • 26
    7611-579 ......EMBLEM, HOOD COVER
    ......EMBLEM, HOOD COVER
  • 27
    0616-032 ...O-RING
    ...O-RING
  • 28
    0619-946 ...TAPE, FOAM - 1 FT
    ...TAPE, FOAM - 1 FT
  • 29
    3606-234 SCREEN, HOOD - FRONT - RIGHT - BLACK
    SCREEN, HOOD - FRONT - RIGHT - BLACK
  • 30
    1670-550 DEFLECTOR, AIR INTAKE
    DEFLECTOR, AIR INTAKE
  • 31
    0717-192 FOAM, HOOD - UPPER MIDDLE
    FOAM, HOOD - UPPER MIDDLE
  • 32
    7611-601 DECAL, "CAT COMM"
    DECAL, "CAT COMM"
  • 33
    7611-165 EMBLEM, CHROME - "TURBO LE"
    EMBLEM, CHROME - "TURBO LE"
  • 34
    4606-143 GROMMET
    GROMMET
  • 35
    1606-067 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 36
    2639-477 MIRROR - KIT - BLACK (INC. SIX NO. 37-39)
    MIRROR - KIT - BLACK (INC. SIX NO. 37-39)
  • 37
    0623-845 ...NUT, EXPANSION
    ...NUT, EXPANSION
  • 38
    0124-054 ...SNAP CAP W/WASHER
    ...SNAP CAP W/WASHER
  • 39
    0623-902 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 40
    3606-408 WINDSHIELD
    WINDSHIELD
  • 41
    1623-519 CLIP, 3 IN.
    CLIP, 3 IN.
  • 42
    1623-518 CLIP, 1 IN.
    CLIP, 1 IN.
  • 43
    0630-204 MOUNT, ANTENNA - RADIO
    MOUNT, ANTENNA - RADIO
  • 44
    0623-121 SCREW, MACHINE
    SCREW, MACHINE
  • 45
    2606-247 CABLE, HOOD
    CABLE, HOOD
  • 46
    0623-805 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 47
    1623-164 SCREW, SHOULDER
    SCREW, SHOULDER
