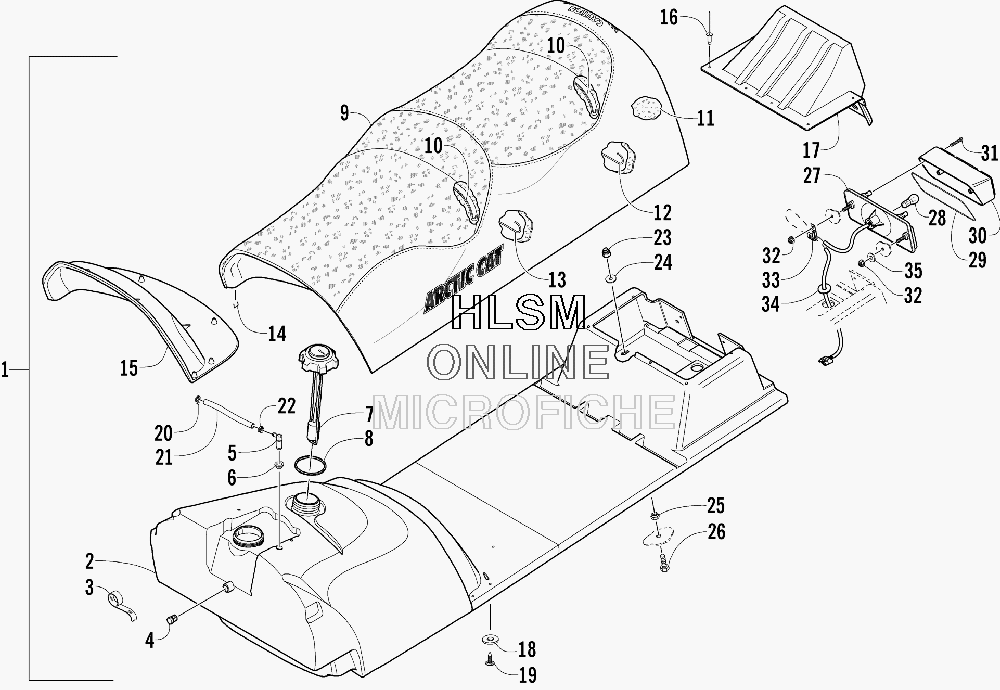

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat PANTHER 660 TOURING (INTERNATIONAL) - 2007 года выпуска`
-
№АртикулНазвание
-
12718-034 COMPLETE SEAT ASSEMBLY (INC. 2-19)COMPLETE SEAT ASSEMBLY (INC. 2-19)
-
20770-724 ...TANK, GAS/SEAT-BASE (INC. 3-8)...TANK, GAS/SEAT-BASE (INC. 3-8)
-
30670-289 ......TAPE, TEFLON......TAPE, TEFLON
-
40670-243 ......PLUG, GAS TANK......PLUG, GAS TANK
-
51670-494 ......VENT, GAS TANK......VENT, GAS TANK
-
61670-325 ......GROMMET......GROMMET
-
70670-202 ......CAP, GAS TANK W/GAUGE (INC. 8)......CAP, GAS TANK W/GAUGE (INC. 8)
-
80109-733 .........SEAL, TANK CAP.........SEAL, TANK CAP
-
93706-330 ...COVER, SEAT (INC. 10)...COVER, SEAT (INC. 10)
-
103606-363 ......WIRE, SEAT......WIRE, SEAT
-
110716-991 ...FOAM, SEAT CUSHION...FOAM, SEAT CUSHION
-
122606-942 ...WIRE, SEAT...WIRE, SEAT
-
132606-943 ...WIRE, SEAT...WIRE, SEAT
-
140624-528 ...STAPLE, SEAT COVER...STAPLE, SEAT COVER
-
151606-612 ...INSERT, SEAT FOAM...INSERT, SEAT FOAM
-
160623-853 ...RIVET...RIVET
-
171606-191 ...EXTENSION, TOOLBOX...EXTENSION, TOOLBOX
-
188050-217 ...WASHER...WASHER
-
190623-309 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
200623-101 CLIP, ROUTING - SNAP-INCLIP, ROUTING - SNAP-IN
-
216101-001 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
216101-009 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
221623-042 CLAMP, HOSECLAMP, HOSE
-
230123-108 NUT, CAPNUT, CAP
-
240623-184 WASHERWASHER
-
258047-366 NUT, LOCKNUT, LOCK
-
268020-041 SCREW, CAPSCREW, CAP
-
270609-091 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
280109-460 BULBBULB
-
290609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
300609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
310609-093 SCREW, RETAININGSCREW, RETAINING
-
320623-038 NUT W/WASHERNUT W/WASHER
-
333002-964 CLAMP, WIRECLAMP, WIRE
-
340617-136 SEAL, FOAM - SEAT-BASESEAL, FOAM - SEAT-BASE
-
358050-217 WASHERWASHER
