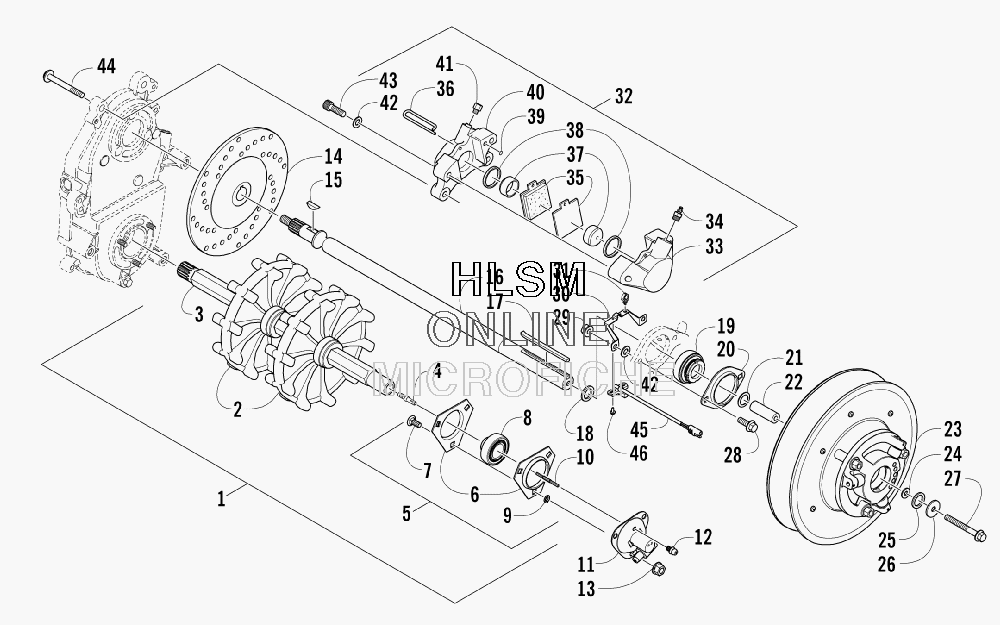

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat PANTHER 660 TOURING (INTERNATIONAL) - 2007 года выпуска`
-
№АртикулНазвание
-
10728-146 TRACK DRIVE ASSEMBLY (INC. 2-9)TRACK DRIVE ASSEMBLY (INC. 2-9)
-
21602-507 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
31602-852 ...DRIVESHAFT...DRIVESHAFT
-
40120-247 ...BUSHING, DRIVE...BUSHING, DRIVE
-
50702-567 ...PLATE, FLANGE - BEARING ASSEMBLY (INC. 6-9)...PLATE, FLANGE - BEARING ASSEMBLY (INC. 6-9)
-
60602-198 ......PLATE, FLANGE......PLATE, FLANGE
-
78011-130 ......BOLT, CARRIAGE......BOLT, CARRIAGE
-
81602-374 ......BEARING, 1 IN. W/LOCK COLLAR......BEARING, 1 IN. W/LOCK COLLAR
-
90623-810 ......RING, SOLDER......RING, SOLDER
-
100602-154 CABLE, ADAPTERCABLE, ADAPTER
-
110720-005 ADAPTER, DRIVE (INC. 12)ADAPTER, DRIVE (INC. 12)
-
120104-062 ...FITTING, GREASE...FITTING, GREASE
-
138047-426 NUT, LOCKNUT, LOCK
-
141602-205 DISC, BRAKEDISC, BRAKE
-
150602-598 KEYKEY
-
160702-810 SHAFT, DRIVENSHAFT, DRIVEN
-
170101-076 KEYKEY
-
181602-396 MAGNET, COLLARMAGNET, COLLAR
-
191602-983 BEARING, 1 IN. W/SLEEVEBEARING, 1 IN. W/SLEEVE
-
202602-039 PLATE, FLANGEPLATE, FLANGE
-
210623-118 WASHER,FLAT-1.00 X1.43 X.030WASHER,FLAT-1.00 X1.43 X.030
-
210623-119 WASHER,FLAT-1.00 X1.43 X.075WASHER,FLAT-1.00 X1.43 X.075
-
220648-066 SHAFT, STUBSHAFT, STUB
-
230726-230 CLUTCH, DRIVENCLUTCH, DRIVEN
-
240123-053 WASHERWASHER
-
250123-578 WASHERWASHER
-
260123-019 WASHERWASHER
-
271623-552 SCREW, CAPSCREW, CAP
-
288020-223 SCREW, CAPSCREW, CAP
-
298047-486 NUT, LOCKNUT, LOCK
-
303706-631 BRACKET, SPEEDOMETER SENSORBRACKET, SPEEDOMETER SENSOR
-
310623-101 CLIP, ROUTING - SNAP-INCLIP, ROUTING - SNAP-IN
-
320602-829 CALIPER, BRAKE - ASSEMBLY (INC. 33-41, TWO NO. 42, AND 43)CALIPER, BRAKE - ASSEMBLY (INC. 33-41, TWO NO. 42, AND 43)
-
340602-707 ...SCREW, BLEED - ASSEMBLY...SCREW, BLEED - ASSEMBLY
-
350702-229 ...PAD, BRAKE - SET (INC. 36)...PAD, BRAKE - SET (INC. 36)
-
361602-754 ......PIN, RETAINING......PIN, RETAINING
-
370602-708 ...PISTON...PISTON
-
381602-755 ...O-RING, SQUARE...O-RING, SQUARE
-
390602-729 ...O-RING, HOUSING...O-RING, HOUSING
-
410602-590 ...FITTING, ADAPTER...FITTING, ADAPTER
-
428050-272 ...WASHER...WASHER
-
431623-352 ...SCREW, CAP...SCREW, CAP
-
441623-558 SCREW, CAPSCREW, CAP
-
450630-008 SWITCH, MAGNETIC CARBURETOR ASSEMBLYSWITCH, MAGNETIC CARBURETOR ASSEMBLY
-
460623-137 SCREW, TAPTITESCREW, TAPTITE
