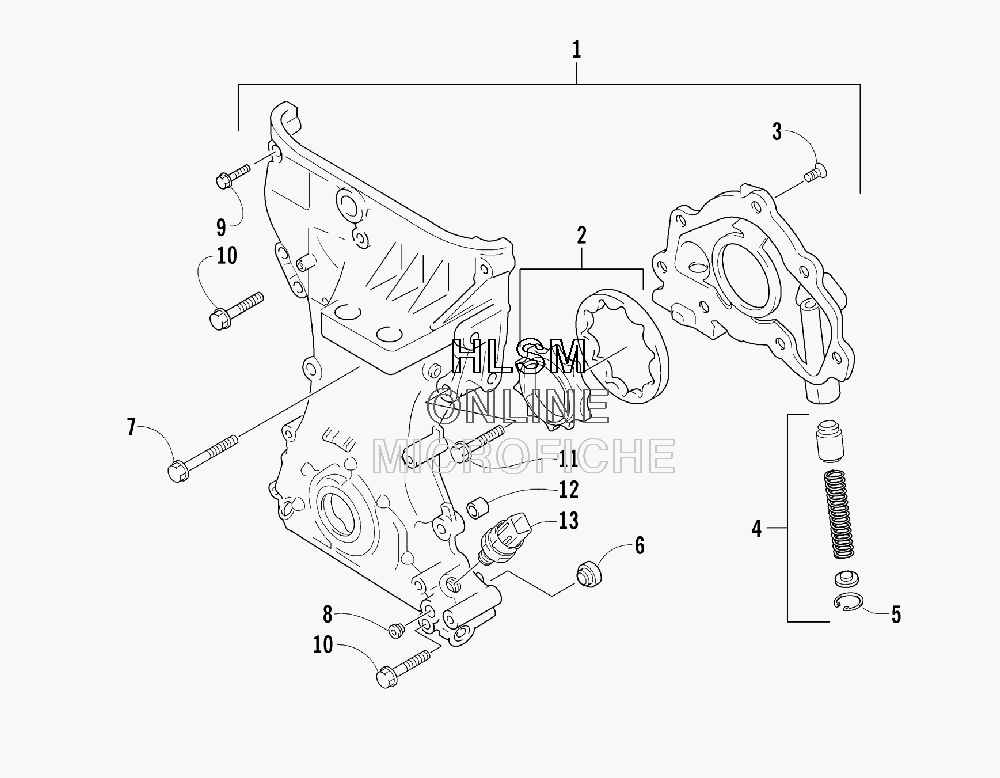

TIMING CHAIN COVER/OIL PUMP ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK (INTERNATIONAL) - 2007 года выпуска`
-
№АртикулНазвание
-
13006-219 TIMING CHAIN COVER/OIL PUMP ASSEMBLY (INC. 2-5)TIMING CHAIN COVER/OIL PUMP ASSEMBLY (INC. 2-5)
-
23006-220 ...ROTOR SET...ROTOR SET
-
33007-393 ...SCREW...SCREW
-
43006-221 ...VALVE SET (INC. 5)...VALVE SET (INC. 5)
-
53007-394 ......CIRCLIP......CIRCLIP
-
63007-032 FILTER, OIL GALLERYFILTER, OIL GALLERY
-
73006-755 BOLTBOLT
-
83423-386 PLUGPLUG
-
93007-395 BOLTBOLT
-
103007-386 BOLTBOLT
-
113007-396 BOLTBOLT
-
123005-206 PIN, DOWELPIN, DOWEL
-
133006-844 SWITCH, OIL PRESSURE - ASSEMBLYSWITCH, OIL PRESSURE - ASSEMBLY
