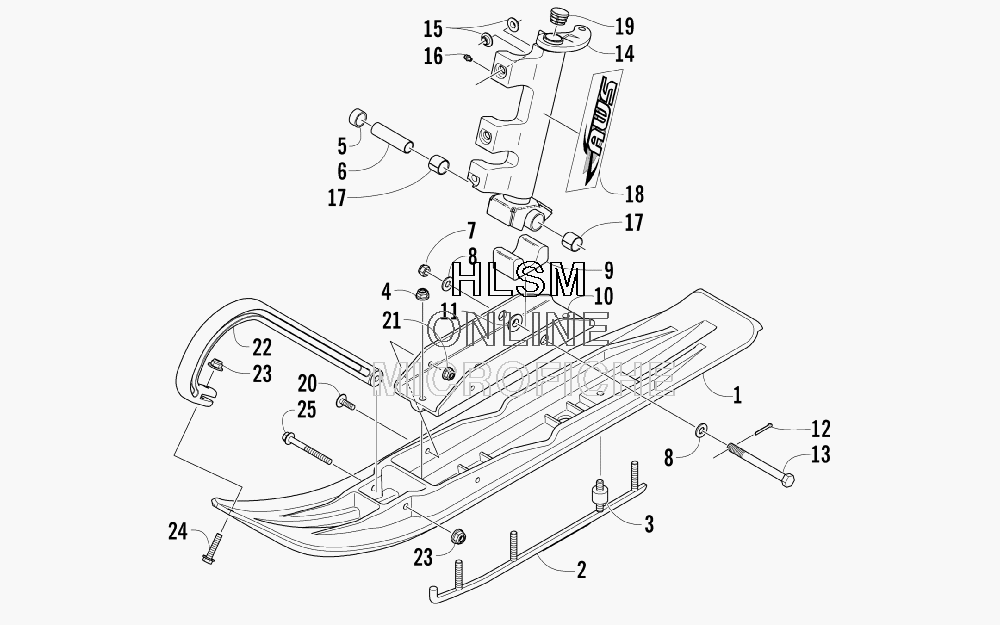

SKI AND SPINDLE ASSEMBLY (INTERNATIONAL) для Arctic Cat BEARCAT WIDE TRACK (INTERNATIONAL) - 2007 года выпуска`
-
№АртикулНазвание
-
10703-492 SKI, PLASTIC - BLACKSKI, PLASTIC - BLACK
-
21703-003 WEARBARWEARBAR
-
30603-616 SPACERSPACER
-
48047-486 NUT, LOCKNUT, LOCK
-
51603-908 SPACERSPACER
-
62603-548 AXLE, SPINDLEAXLE, SPINDLE
-
70123-296 NUT, LOCKNUT, LOCK
-
80623-728 WASHERWASHER
-
91603-960 DAMPER, SKIDAMPER, SKI
-
100703-269 SADDLE, SKI - BLACK (INC. 11)SADDLE, SKI - BLACK (INC. 11)
-
110603-621 ...INSERT, SKI SADDLE...INSERT, SKI SADDLE
-
120123-458 PIN, COTTERPIN, COTTER
-
130623-552 SCREW, CAPSCREW, CAP
-
142703-170 SPINDLE, STEERING - RIGHT - PLATINUM (INC. 15-17)SPINDLE, STEERING - RIGHT - PLATINUM (INC. 15-17)
-
142703-171 SPINDLE, STEERING - LEFT - PLATINUM (INC. 15-17)SPINDLE, STEERING - LEFT - PLATINUM (INC. 15-17)
-
150603-647 ...INSERT, SPINDLE...INSERT, SPINDLE
-
161623-010 ...FITTING, GREASE...FITTING, GREASE
-
170603-158 ...BEARING...BEARING
-
187611-394 DECAL, "AWS" - SPINDLE - RIGHTDECAL, "AWS" - SPINDLE - RIGHT
-
187611-395 DECAL, "AWS" - SPINDLE - LEFTDECAL, "AWS" - SPINDLE - LEFT
-
190623-831 CAP, SPINDLECAP, SPINDLE
-
208017-581 SCREW, MACHINESCREW, MACHINE
-
218047-366 NUT, LOCKNUT, LOCK
-
220603-624 HANDLE, PLASTIC - BLACKHANDLE, PLASTIC - BLACK
-
238047-426 NUT, LOCKNUT, LOCK
-
248020-135 SCREW, CAPSCREW, CAP
-
258020-143 SCREW, CAPSCREW, CAP
