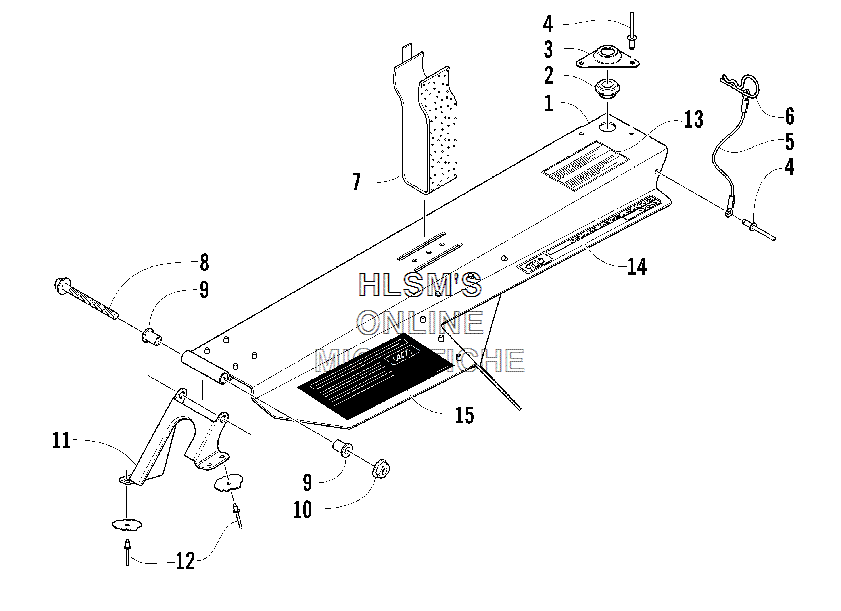

BELT GUARD ASSY. для Arctic Cat ZR 900 EFI - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0707-994 BELT GUARD (INC. 2-3, TWO NO. 4, AND 5-6)
    BELT GUARD (INC. 2-3, TWO NO. 4, AND 5-6)
  • 2
    0607-549 BUSHING, BELT GUARD
    BUSHING, BELT GUARD
  • 3
    0607-550 PLATE, BUSHING - BELT GUARD
    PLATE, BUSHING - BELT GUARD
  • 4
    8060-504 RIVET
    RIVET
  • 5
    0607-447 CABLE
    CABLE
  • 6
    0605-283 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 7
    0707-582 RETAINER, DRIVE BELT - VELCRO
    RETAINER, DRIVE BELT - VELCRO
  • 8
    8020-050 SCREW, CAP
    SCREW, CAP
  • 9
    0607-094 INSERT, HINGE
    INSERT, HINGE
  • 10
    8047-366 NUT, LOCK
    NUT, LOCK
  • 11
    0707-707 BRACKET, BELT GUARD
    BRACKET, BELT GUARD
  • 12
    8061-508 RIVET (BLACK)
    RIVET (BLACK)
  • 13
    1611-565 DECAL, WARNING - BELT GUARD
    DECAL, WARNING - BELT GUARD
  • 14
    3611-969 DECAL, "ACT - ROLLER DRIVEN CLUTCH"
    DECAL, "ACT - ROLLER DRIVEN CLUTCH"
  • 15
    7611-201 DECAL, CLUTCHING
    DECAL, CLUTCHING
