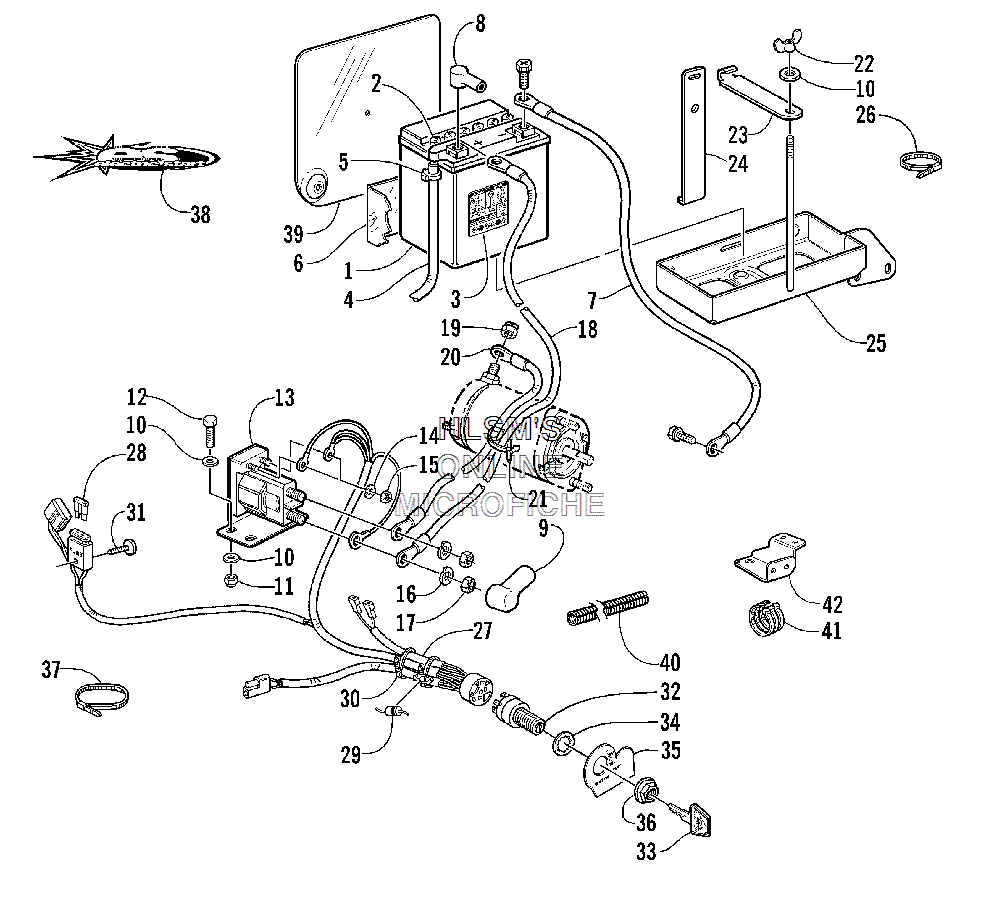

BATTERY- SOLENOID- AND CABLES (OPTIONAL) для Arctic Cat ZR 900 EFI - 2006 года выпуска`

№

Артикул

Название
1

0745-059 BATTERY (INC. 2-6)

BATTERY (INC. 2-6)

33 270 ₽
2

0645-246 CAP, BATTERY

CAP, BATTERY

270 ₽
3

0645-151 DECAL, WARNING - BATTERY

DECAL, WARNING - BATTERY

1 660 ₽
4

0645-179 HOSE, BATTERY VENT

HOSE, BATTERY VENT

520 ₽
5

0645-152 CLAMP, HOSE

CLAMP, HOSE

380 ₽
6

0645-082 WRAP, HEAT - BATTERY

WRAP, HEAT - BATTERY

960 ₽
7

0645-136 CABLE, BATTERY/GROUND (INC. 8-9)

CABLE, BATTERY/GROUND (INC. 8-9)

4 570 ₽
8

0645-019 BOOT, TERMINAL - BATTERY

BOOT, TERMINAL - BATTERY

670 ₽
9

0645-327 BOOT, TERMINAL - SOLENOID

BOOT, TERMINAL - SOLENOID

250 ₽
10

8050-217 WASHER, FLAT

WASHER, FLAT

20 ₽
11

8040-366 NUT, LOCK

NUT, LOCK

40 ₽
12

8002-040 SCREW, CAP

SCREW, CAP

60 ₽
13

0645-196 SOLENOID (INC. 14-17)

SOLENOID (INC. 14-17)

10 390 ₽
14

8051-152 WASHER, LOCK

WASHER, LOCK

20 ₽
15

8042-272 NUT

NUT

20 ₽
16

8051-242 WASHER, LOCK

WASHER, LOCK

250 ₽
17

8043-452 NUT

NUT

130 ₽
18

0645-331 CABLE, BATTERY/SOLENOID

CABLE, BATTERY/SOLENOID

6 860 ₽
19

0623-122 NUT, LOCK

NUT, LOCK

230 ₽
20

0645-373 CABLE, SOLENOID/STARTER

CABLE, SOLENOID/STARTER

4 570 ₽
21

0623-677 CABLE TIE, PUSH-MOUNT

CABLE TIE, PUSH-MOUNT

170 ₽
22

0623-325 NUT, WING

NUT, WING

310 ₽
23

0645-243 STRAP, BATTERY HOLD-DOWN - TOP

STRAP, BATTERY HOLD-DOWN - TOP

2 490 ₽
24

0645-311 STRAP, BATTERY HOLD-DOWN - SIDE

STRAP, BATTERY HOLD-DOWN - SIDE

4 780 ₽
25

0745-166 TRAY, BATTERY

TRAY, BATTERY

6 860 ₽
26

0123-788 CABLE TIE - 8 IN.

CABLE TIE - 8 IN.

20 ₽
27

0686-697 HARNESS, ELECTRIC START (INC. 28-30)

HARNESS, ELECTRIC START (INC. 28-30)

17 050 ₽
28

0630-100 FUSE, 7.5 AMP

FUSE, 7.5 AMP

900 ₽
29

0630-002 DIODE, CHARGING

DIODE, CHARGING

2 700 ₽
31

0623-589 CLIP, RETAINING

CLIP, RETAINING

420 ₽
32

0609-449 SWITCH, IGNITION (INC. 33)

SWITCH, IGNITION (INC. 33)

8 310 ₽
34

0123-899 WASHER, LOCK - INTERNAL TOOTH

WASHER, LOCK - INTERNAL TOOTH

150 ₽
35

2611-744 DECAL, CONSOLE

DECAL, CONSOLE

1 660 ₽
36

0609-113 NUT, RETAINING

NUT, RETAINING

230 ₽
37

0623-144 CABLE TIE - 17.5 IN.

CABLE TIE - 17.5 IN.

90 ₽
38

3611-644 DECAL, "ES"

DECAL, "ES"

4 150 ₽
39

0745-139 SHIELD, HEAT

SHIELD, HEAT

6 440 ₽
40

0716-391 CONDUIT, FLEXIBLE

CONDUIT, FLEXIBLE

610 ₽
41

0623-540 CABLE TIE - TRIPLE

CABLE TIE - TRIPLE

270 ₽
42

0712-834 BRACKET, MOUNTING - RESONATOR

BRACKET, MOUNTING - RESONATOR

3 740 ₽
