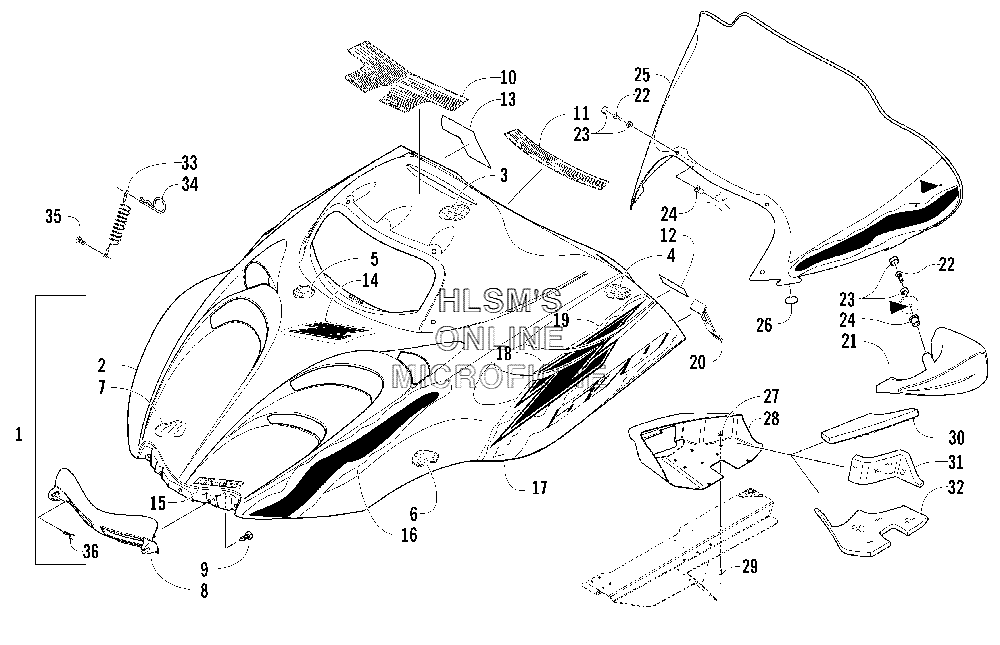

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Z 570 (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
11718-887 HOOD W/DECALS (INC. 2, 12 AND 14, 19)HOOD W/DECALS (INC. 2, 12 AND 14, 19)
-
21718-886 HOOD W/O DECALS (INC. 3, 12)HOOD W/O DECALS (INC. 3, 12)
-
30617-478 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30617-479 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40617-476 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
40617-505 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
50617-475 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60617-326 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
60617-327 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
71606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
71606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
81606-720 HINGE, HOODHINGE, HOOD
-
90623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
103611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
113611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
123611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
133611-580 DECAL, REVERSEDECAL, REVERSE
-
146611-573 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
156611-577 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
166611-586 DECAL, HOOD (FORWARD/RIGHT)DECAL, HOOD (FORWARD/RIGHT)
-
166611-587 DECAL, HOOD (FORWARD/LEFT)DECAL, HOOD (FORWARD/LEFT)
-
176611-592 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
176611-593 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
186611-590 DECAL, HOOD, VENT (CENTER/RIGHT)DECAL, HOOD, VENT (CENTER/RIGHT)
-
186611-591 DECAL, HOOD, VENT (CENTER/LEFT)DECAL, HOOD, VENT (CENTER/LEFT)
-
196611-588 DECAL, HOOD, VENT (UPPER/RIGHT)DECAL, HOOD, VENT (UPPER/RIGHT)
-
196611-589 DECAL, HOOD, VENT (UPPER/LEFT)DECAL, HOOD, VENT (UPPER/LEFT)
-
201606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
212639-477 MIRROR KITMIRROR KIT
-
220623-902 SCREW, MACHINESCREW, MACHINE
-
230124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
240623-845 NUT, EXPANSIONNUT, EXPANSION
-
254606-034 WINDSHIELDWINDSHIELD
-
260616-032 O-RINGO-RING
-
270123-802 WASHERWASHER
-
282606-370 DUCT, AIR (OUTER)DUCT, AIR (OUTER)
-
298060-508 RIVETRIVET
-
300617-427 FOAM, AIR, OUTER DUCT (TOP)FOAM, AIR, OUTER DUCT (TOP)
-
310617-428 FOAM, AIR, OUTER DUCT (SIDE)FOAM, AIR, OUTER DUCT (SIDE)
-
320617-425 FOAM, AIR, OUTER DUCT (BOTTOM)FOAM, AIR, OUTER DUCT (BOTTOM)
-
332606-247 CABLE, HOODCABLE, HOOD
-
340623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
350623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
361623-016 SCREW, MACHINESCREW, MACHINE
